Service Manual
Ophthalmic Surgical System
Chapter 2 - Maintenance instructions
N° doc.: 30204400-B - Version date: Nov. 01, 2013 - 29

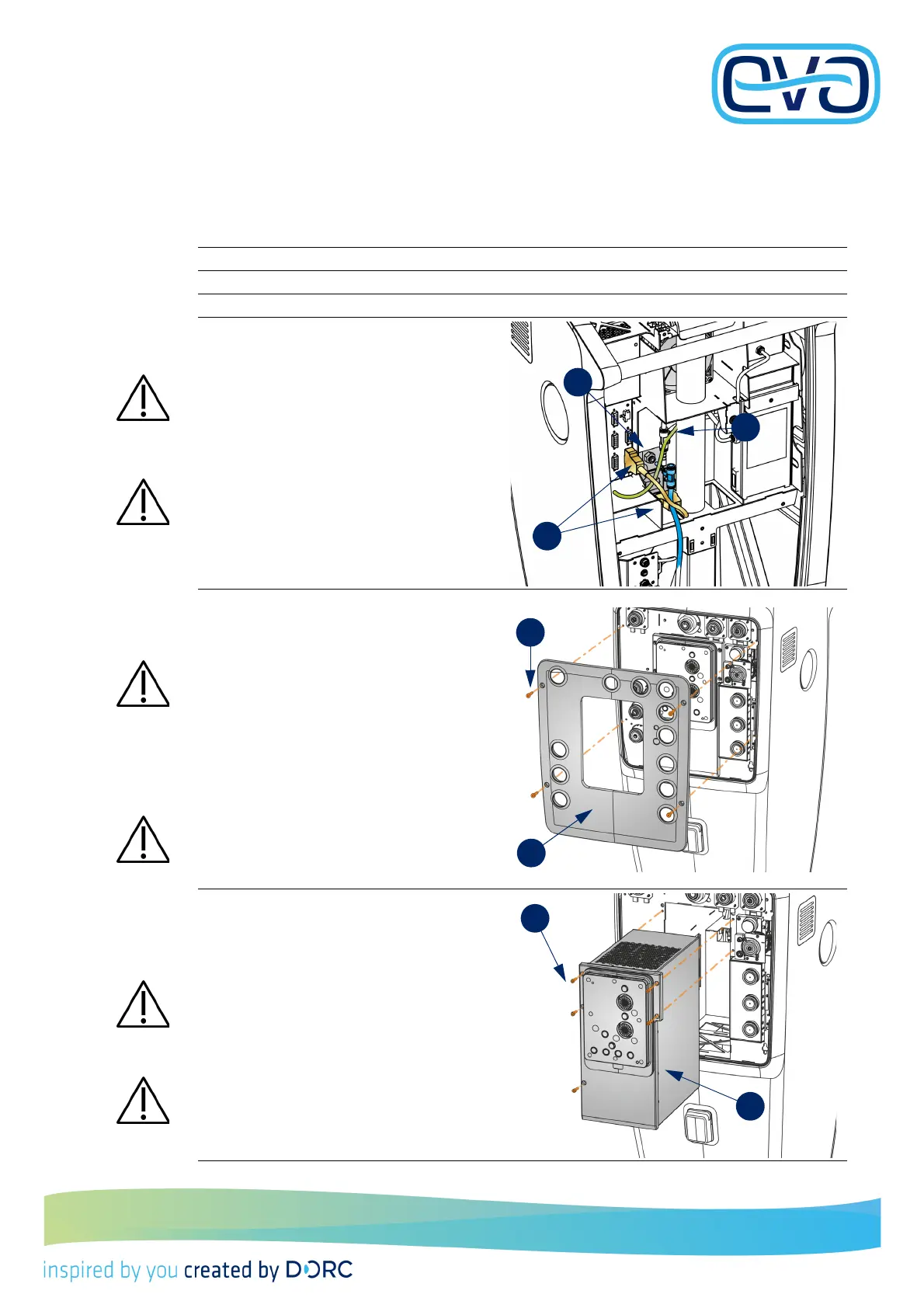

2.7.12 Pump
This paragraph describes the disassembly of the Pump module. Assembling is carried out in
the opposite way.
1. Remove the drawer as described in par. ’Drawer’, page 15).
2. Remove the back cover as described in par. ’Back Cover’, page 15).
3. Remove the top cover as described in par. ’Top Cover’, page 16).
4. Remove the air connections.
Beware the system may still be
under pressure.
5. Remove the CAN cable.
6. Remove the Fan cable from the main
board.
The fan cable stays connected to
the fan and will move out,
together with the module.
7. Unscrew the 4 screws of the interface
plate.
8. Remove the interface plate.
Be careful! There is a the
cable b
etween the interface
plate and the EVA located below
the posterior module.
9. Disconnect the cable connectors (not visi-
ble in the picture).
At assembling, first connect the
cable connectors.
10. Unscrew the 5 screws of the pump
module.
11. Remove the pump module.
Be careful with the fan cable.
At assembling, first move the fan
cable into the EVA.
