Service Manual
Ophthalmic Surgical System
Chapter 2 - Maintenance instructions
32 - Version date: Nov. 01, 2013 - N° doc.: 30204400-B

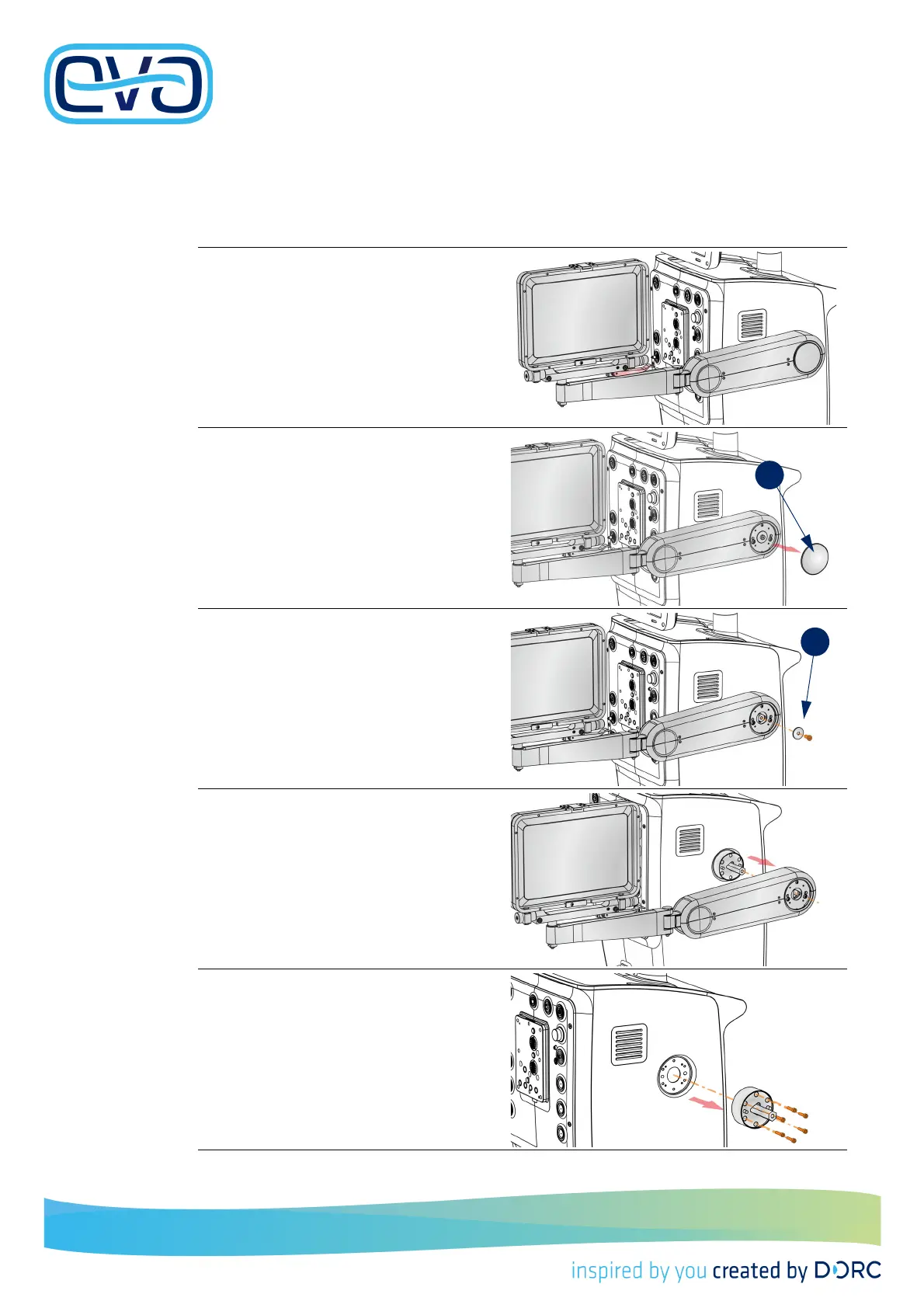

2.10.3 Mayo
This paragraph describes the disassembly of the mayo. Assembling is carried out in the op-
posite way.
1. Place the mayo in the position as shown
in the picture.
In this position the mayo fits in the pack-
aging.
2. Remove the plastic cap.
Use a screwdriver, but do it carefully to
avoid damaging the cap.
3. Unscrew the screw and remove the screw
and ring.
4. Pull the mayo arm from the hexagon
shaft.
Only if the mayo is removed permanently.
5. Unscrew the 6 screws of the shoulder
hinge.
6. Remove the hinge.
