Service Manual
Ophthalmic Surgical System
Chapter 2 - Maintenance instructions
N° doc.: 30204400-B - Version date: Nov. 01, 2013 - 23

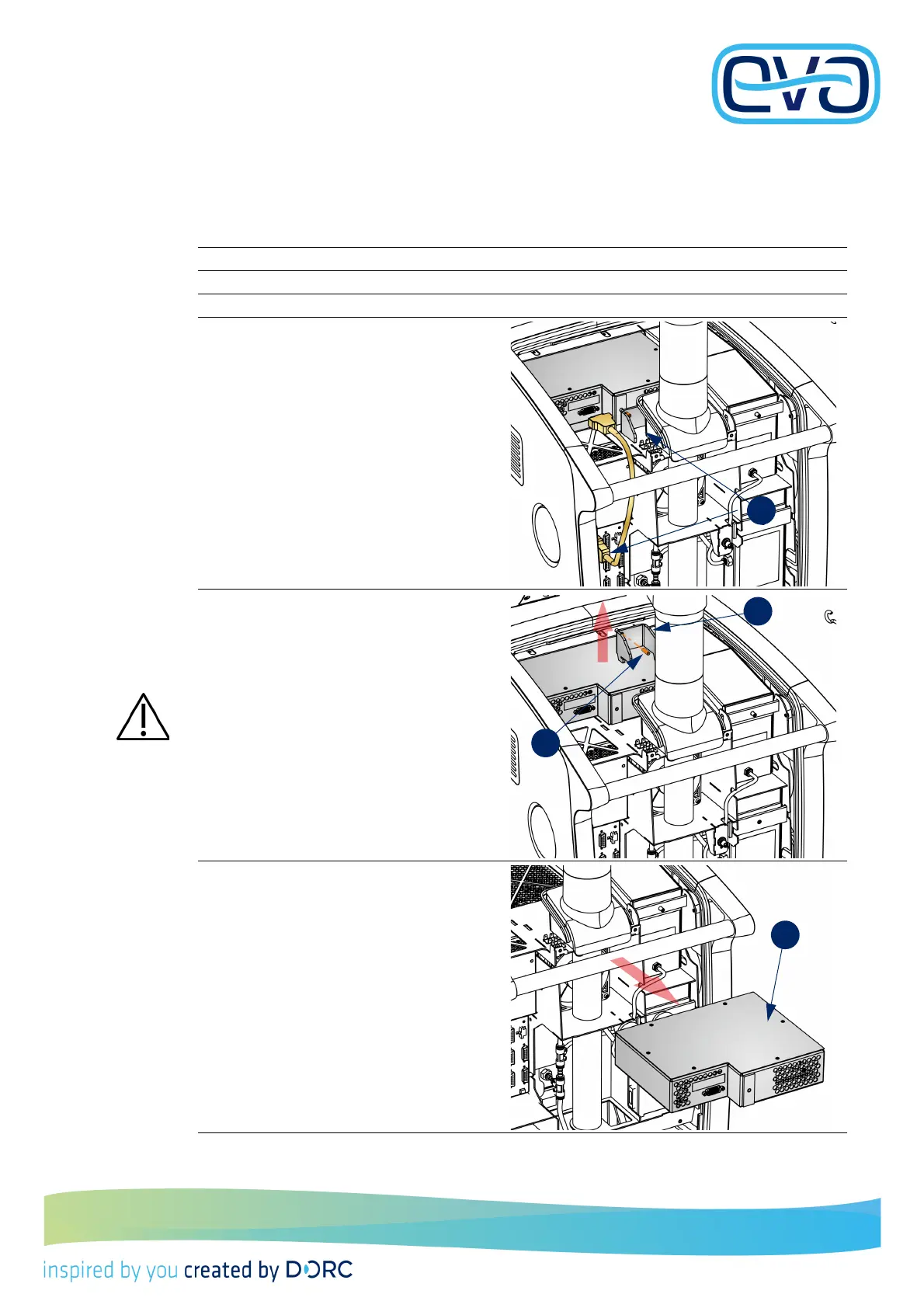

2.7.8 Phaco/Diathermy
This paragraph describes the disassembly of the Phaco/Diathermy module. Assembling is
carried out in the opposite way.
1. Remove the drawer as described in par. ’Drawer’, page 15).
2. Remove the back cover as described in par. ’Back Cover’, page 15).
3. Remove the top cover as described in par. ’Top Cover’, page 16).
4. Remove the CAN cable.
5. Unscrew the set screw of the lock strip.
6. Remove the lock strip.
The screws are mounted with
locking agent (Threebond normal
1374).
Assemble the screws with
Threebond.
7. Remove the Phaco/Diathermy module.
