DORC EVA - Page 16

Service Manual
Ophthalmic Surgical System
Chapter 2 - Maintenance instructions
16 - Version date: Nov. 01, 2013 - N° doc.: 30204400-B
Top Cover
Midhood

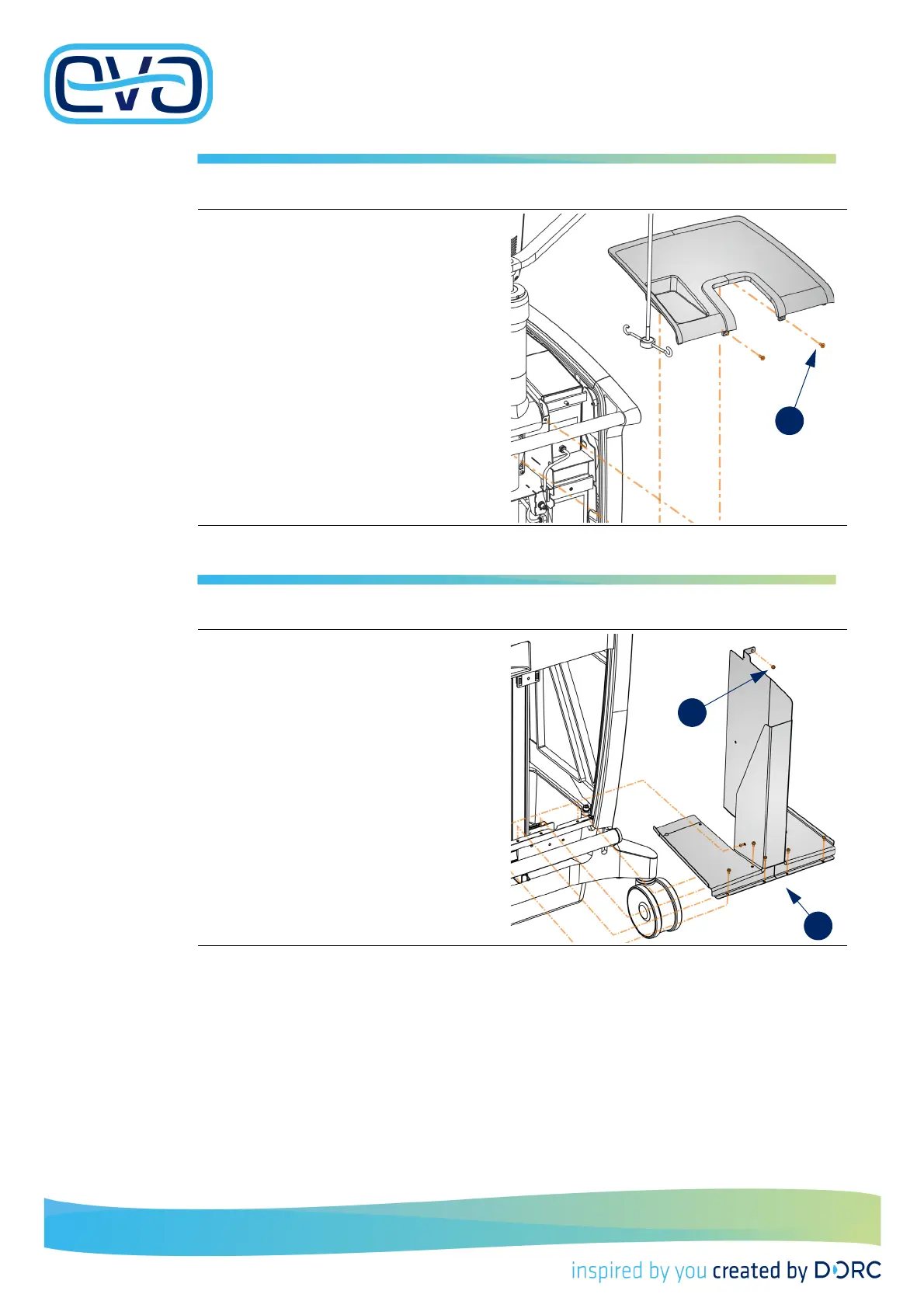

8. Unscrew the 2 screws of the top cover.
9. Remove the top cover.
10. Unscrew the 10 screws of the midhood.
11. Inside the EVA unscrew the nut at the
top side of the midhood.
12. Remove the midhood
8
10
11
