DORC EVA - Posterior Module (VFI;E, Air, Prop. Scissors)

Service Manual
Ophthalmic Surgical System
Chapter 2 - Maintenance instructions
N° doc.: 30204400-B - Version date: Nov. 01, 2013 - 25

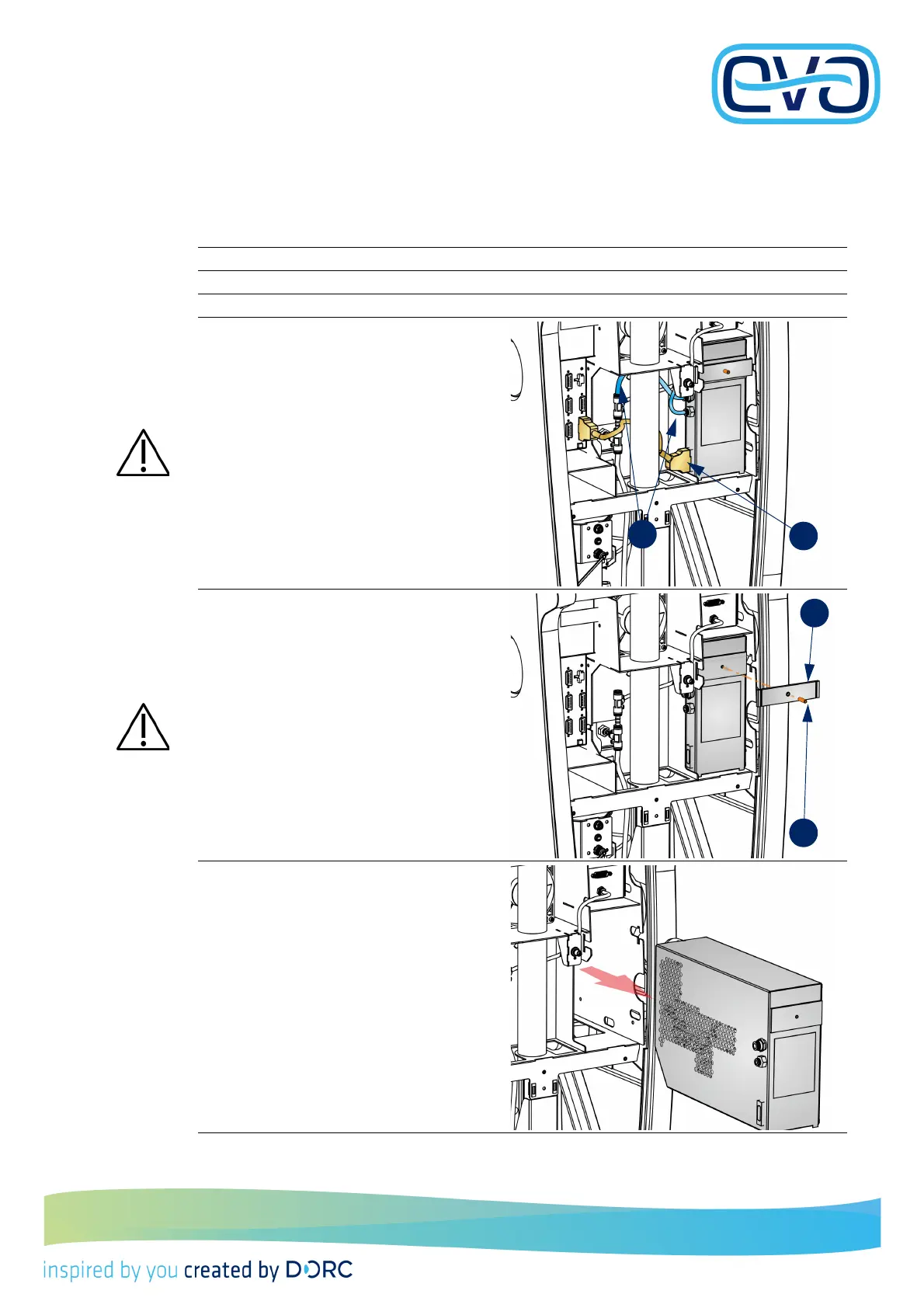

2.7.10 Posterior module (VFI/E, Air, Prop. Scissors)
This paragraph describes the disassembly of the Posterior module. Assembling is carried out
in the opposite way.
1. Remove the drawer as described in par. ’Drawer’, page 15).
2. Remove the back cover as described in par. ’Back Cover’, page 15).
3. Remove the top cover as described in par. ’Top Cover’, page 16).
4. Remove the two air connections.
Beware the system may still be
under pressure.
5. Remove the CAN cable
6. Unscrew the set screw of the lock strip.
7. Remove the lock strip.
The set screw is mounted with
locking agent (Threebond normal
1374).
Assemble the set screw with
Threebond.
8. Remove the posterior module.
4
5
7
6
