DORC EVA - Infusion Pole

Service Manual
Ophthalmic Surgical System
Chapter 2 - Maintenance instructions
N° doc.: 30204400-B - Version date: Nov. 01, 2013 - 21

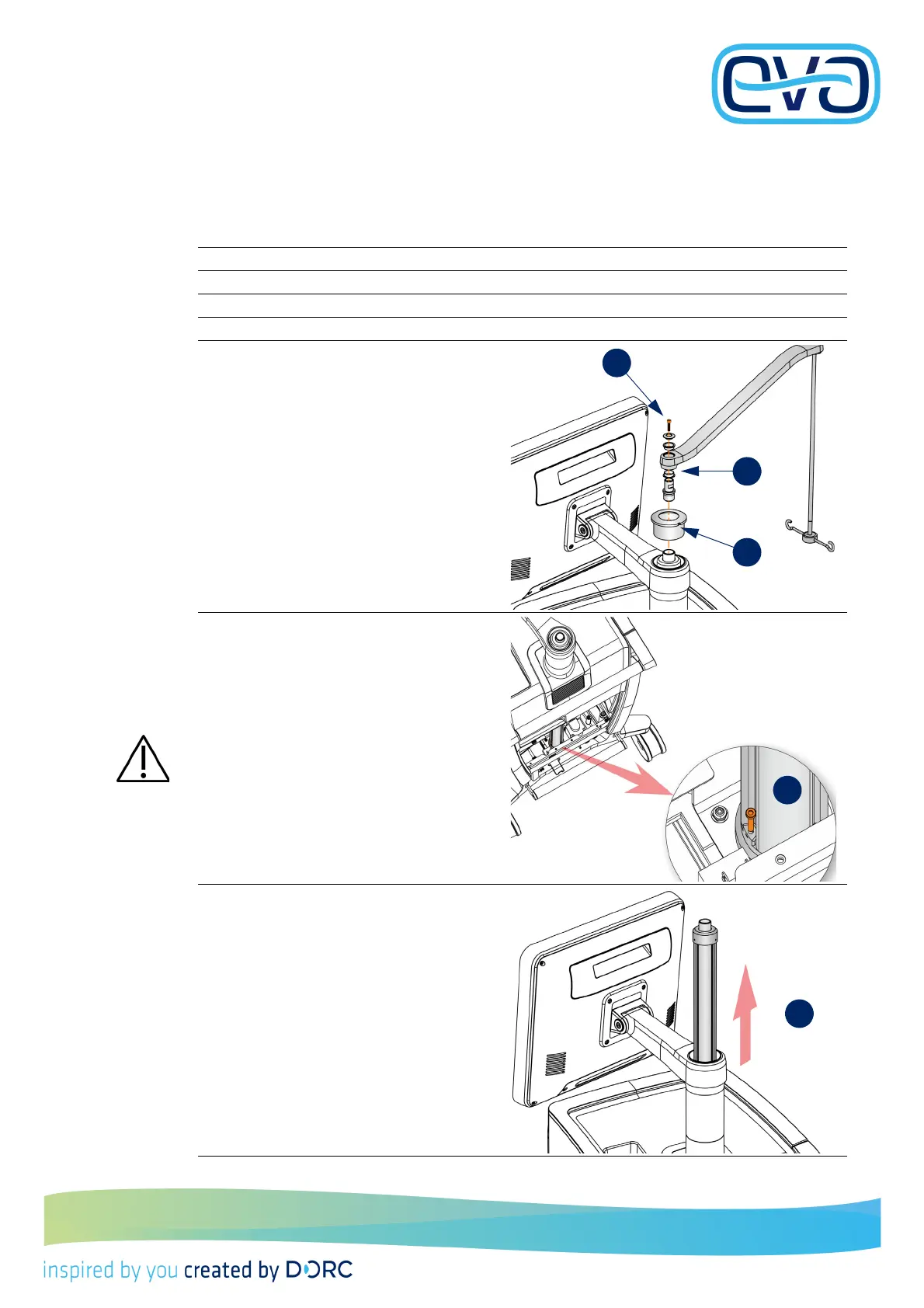

2.7.7 Infusion Pole
This paragraph describes the disassembly of the Infusion Pole. Assembling is carried out in
the opposite way.
1. Remove the drawer as described in par. ’Drawer’, page 15).
2. Remove the back cover as described in par. ’Back Cover’, page 15).
3. Remove the top cover as described in par. ’Top Cover’, page 16).
4. Remove the midhood as described in par. ’Midhood’, page 16).
5. Unscrew the infusion arm bolt.
6. Remove the rings, infuse arm and other
parts of the infusion pole.
7. Remove the ring.
8. Unscrew the screw (1x) at the bottom of
the infusion pole. The infusion pole is
now separated from the drive unit.
The screws are mounted with
locking agent (Threebond normal
1374).
Assemble the screws with
Threebond.
9. On top, pull out the infusion pole.
5
7
6
8
9
