Body Controller Software
151
Indication: A. Scale Alarm-2 ON due to Overweight.
B. PTO-1 and PTO-2 pump Active signal ON.
Disabled Functions: Arms Up interlock and Forks raise Interlock
Fault Reset: Check Auto Lift Enable switch and check for Overweight condition for proper operation.
Cab Protector Down with Arms Lowered Interlock and Arms Active and Arms up Interlock
(standard equipment)
The arms have been lowered when the top door is not fully open or the Arm position angle is greater than the Fork roll
position value (700) and Arms Up position is less than (1000) and the Packer/ Cab protector switch has not been
enabled and the Fork position is greater than Feather Up range (610) and Arms up PWM Value less than (800) and
Cab Protector Down configuration bit is ON and Top door configuration bit is ON and Residential configuration bit is
ON, the diagnostic message will be displayed in the Insight display.

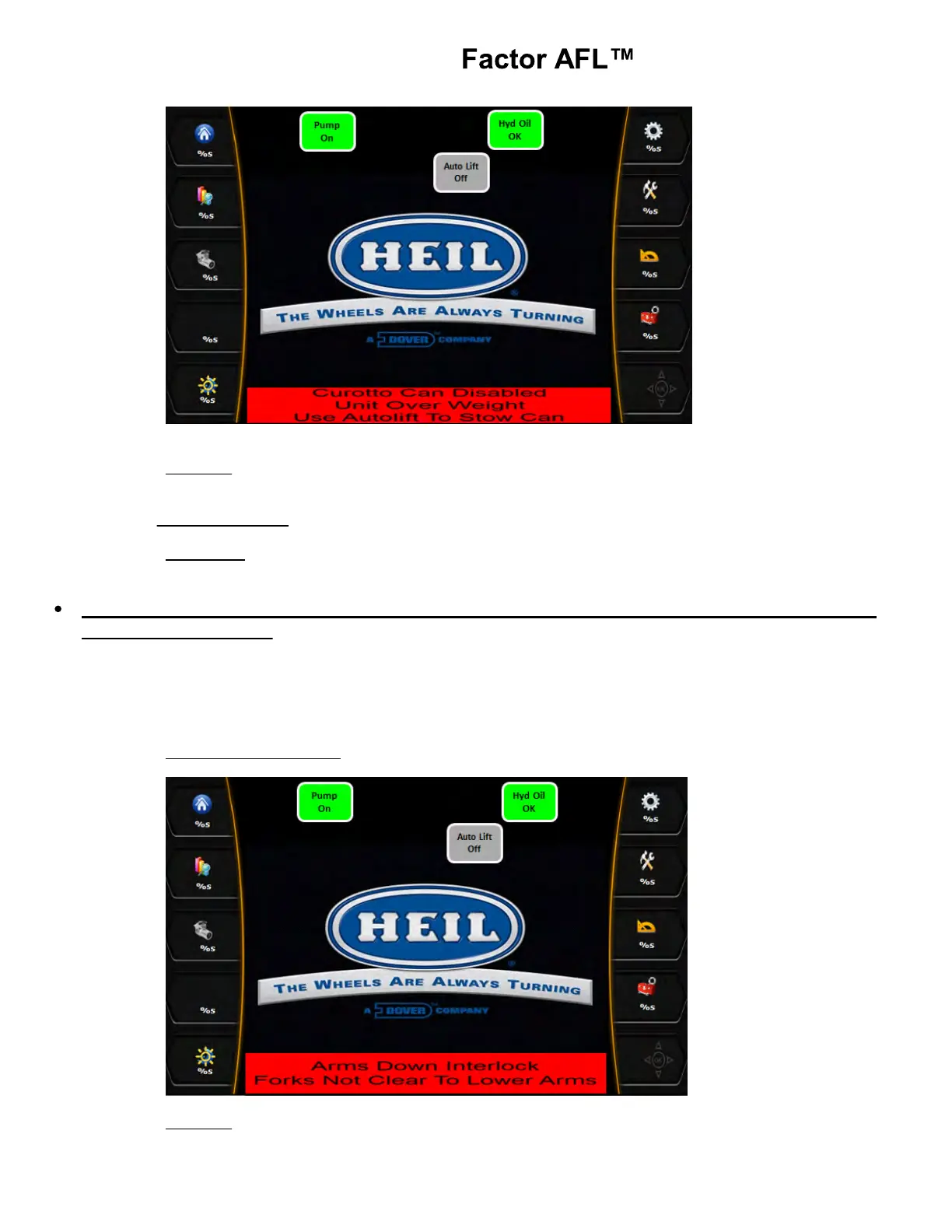

Insight Display Illustration:
Indication: A. Top Door Open light ON.
B. Residential Configuration bit is ON.
