Indications: Diagnostic message will be displayed in the Insight display. Packer extend prox. is not
activated 35 seconds after start of extend cycle.
Disabled Functions: Packer Extend
Fault Reset: Check packer extend prox. switch for proper operation and adjustment. Operate packer
above Engine idle.
Arms Raised Interlock Active (standard equipment)
If the arms have been raised when the top door is not fully open or the packer is not fully retracted and the Packer/ Cab
protector switch has not been enabled / Scale Alarm-2 is enabled due to Overweight / PTO-1 or PTO-2 pump is ON,
the diagnostic message will be displayed in the Insight display.

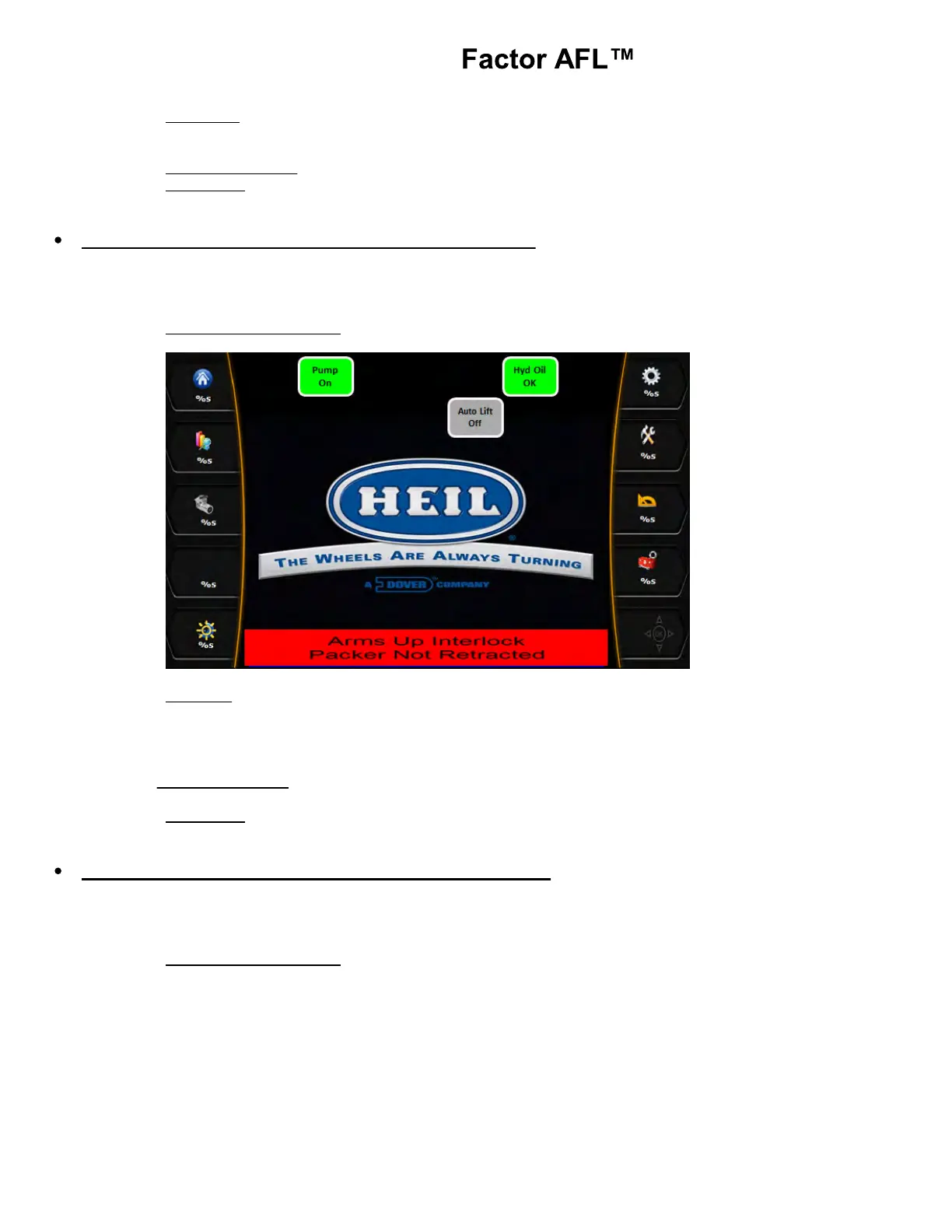

Insight Display Illustration:
Indication: A. Arms Overheight light ON.
B. Top Door Open light ON.
C. Scale Alarm-2 ON due to Overweight.
D. PTO-1 and PTO-2 pump Active signal ON.
Disabled Functions: Forks will not raise above windshield.
Fault Reset: Open the top door fully. Restart packer panel. Check top door and Packer retract prox.
switches for proper operation.
Packer Extend Interlock Active (standard equipment)
If the Packer extend push button was pressed or the Packer extend Auxiliary controls were activated while the Arms
were raised and the Packer/Overheight Over-ride switch was not enabled, then the diagnostic message will be
displayed in the Insight display.
Insight Display Illustration:
