Body Controller Software
Copyright 2018, Heil Environmental
Printed in the U.S.A.
Body Controller Software
163
Indication: A. Arms Overheight light ON.
B. Top Door Open light ON.
C. Scale Alarm-2 ON due to Overweight.
D. PTO-1 and PTO-2 pump Active signal ON.
Disabled Functions: Forks will not raise above windshield.
Fault Reset: Open the top door fully. Restart packer panel. Check top door and packer retract prox.
switches and Auto Lift Enable switch for proper operation. Check for Overweight condition for proper
operation.
Top Door Open and Arms Raised Interlock (standard equipment)
If the arms have been raised when the top door is not fully open or the packer is not fully retracted and the Packer/ Cab
protector switch has not been enabled / Scale Alarm-2 is enabled due to Overweight and Auto Lift Switch is Disabled /
PTO-1 or PTO-2 pump is ON and Top Door Open Configuration bit is ON then the diagnostic message will be
displayed in the Insight display.

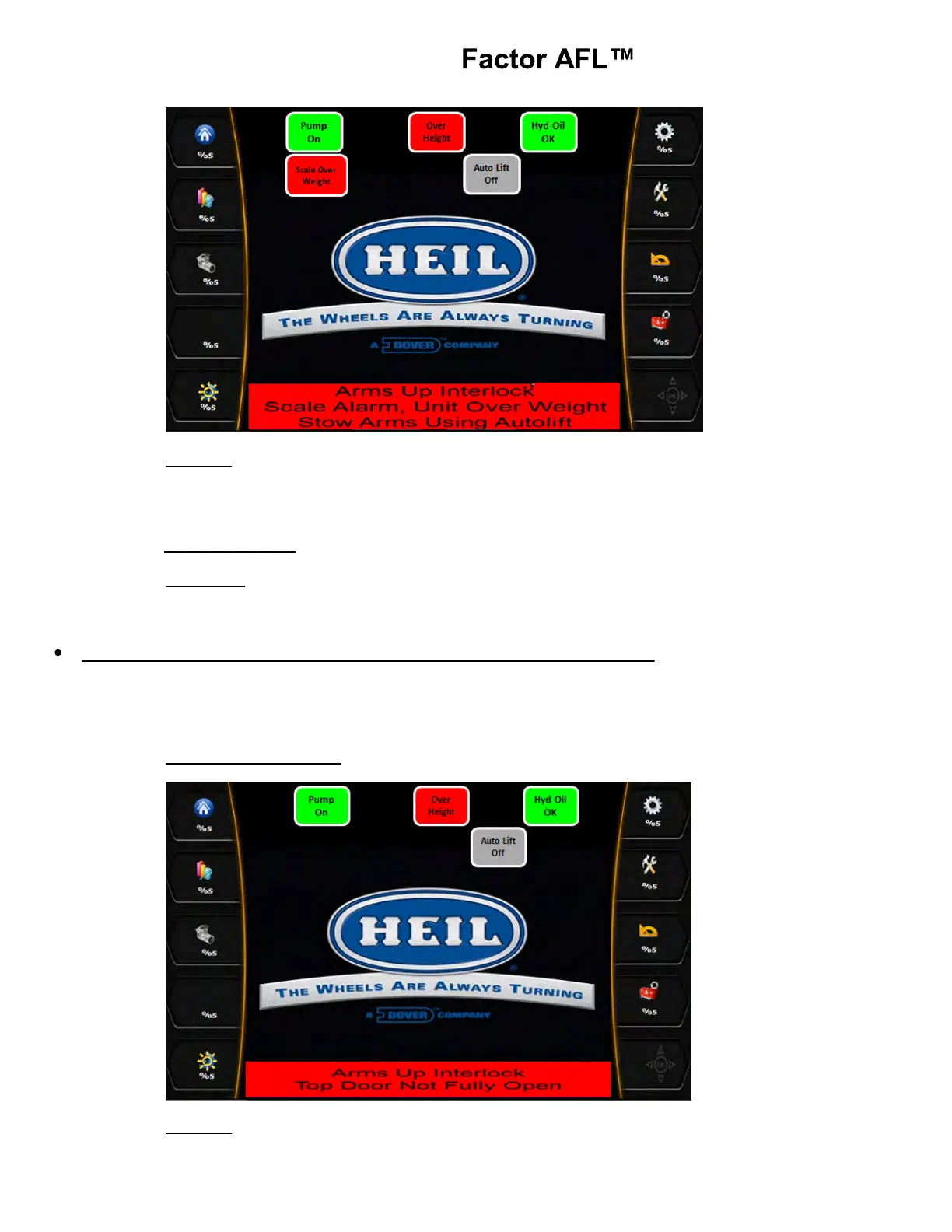

Insight Display Illustration:
Indication: A. Arms Overheight light ON.
B. Top Door Open light ON.
