C. Scale Alarm-2 ON due to Overweight.
D. PTO-1 and PTO-2 pump Active signal ON.
E. Top Door Open Configuration bit is ON.
Disabled Functions: Forks will not raise above windshield.
Fault Reset: Open the top door fully. Restart packer panel. Check top door and packer retract prox.
switches and Auto Lift Enable switch for proper operation.
Cab Protector Raised and Arms Raised Interlock (standard equipment)
If the arms have been raised when the packer is not fully retracted and the Packer/Cab protector switch has been
enabled / Scale Alarm-2 is enabled due to Overweight and Auto Lift Switch is Disabled / Packer Extend or Packer
Retract bit is ON/ PTO-1 or PTO-2 pump is ON, then the diagnostic message will be displayed in the Insight display.

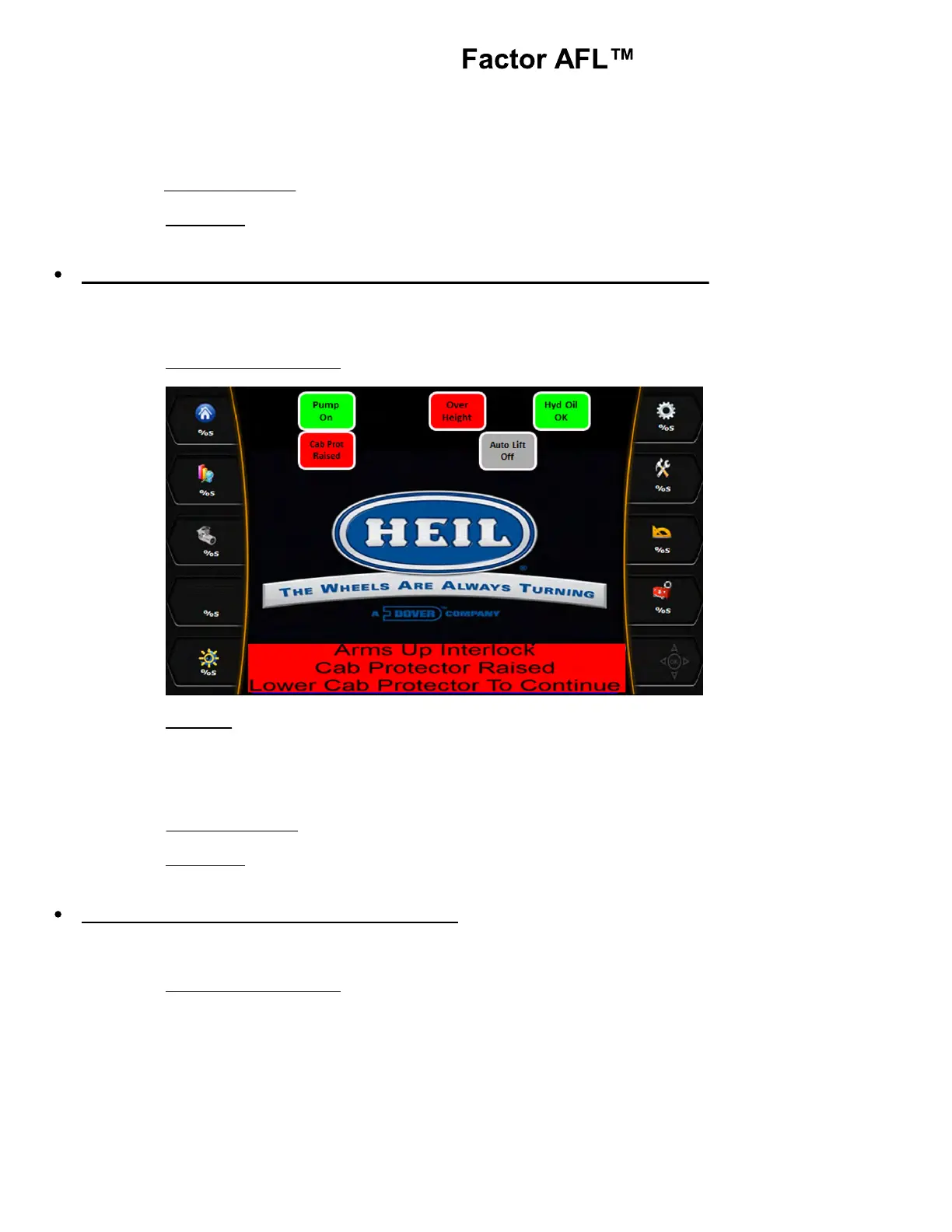

Insight Display Illustration:
Indication: A. Top Door Open light ON.
B. Arms Overheight light ON.
C. Scale Alarm-2 ON due to Overweight.
D. PTO-1 and PTO-2 pump Active signal ON.
E. Cab Protector Up Configuration bit is ON.
Disabled Functions: Forks will not raise above windshield.
Fault Reset: Open the top door fully. Restart packer panel. Check Packer Retract prox. Switches, Cab
protector down prox. Switches and Auto Lift Enable switch for proper operation.
Packer Sensor Fault (standard equipment)
The Packer position value is less than ‘100’ or greater than ‘4600’ during the Packing operation the diagnostic
message will be displayed in the Insight display. (Refer section 4.09 – H01 – Packer Position for details).
Insight Display Illustration:
