General Information
19
TORQUE FOR HYDRAULIC TUBES AND FITTINGS (CONTINUED)

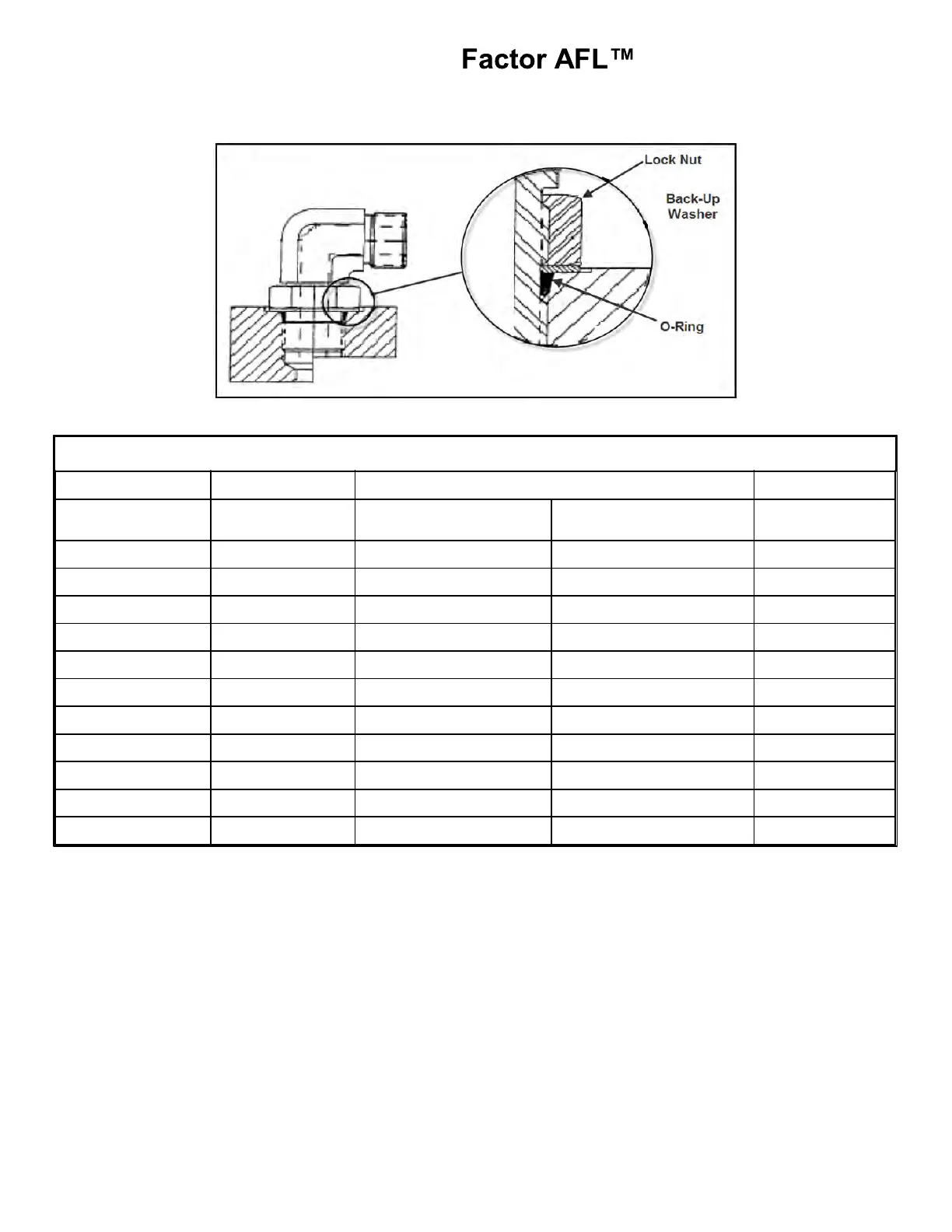

Figure 4. Torque for Hydraulic Tubes and Fittings
SPLIT- FLANGE (HALF CLAMP) CONNECTORS (CODE 61)
SET WRENCH TO
NOMINAL TUBE
OD
BOLT SIZE
BOLT TORQUE [FT-
LBS]
BOLT TORQUE [IN-LBS]
ALUMINUM FT-
LBS [IN-LBS]
1/2"
5/16-18 x 1.25
17 ft-lbs.
200 in-lbs.
12 [130]
3/4"
3/8-16 x 1.25
25 ft-lbs.
300 in-lbs.
17 [200]
1"
3/8-16 x 1.25
32 ft-lbs.
380 in-lbs.
21 [250]
1-1/4"
7/16-14 x 1.50
41 ft-lbs.
490 in-lbs.
27 [320]
1-1/2"
1/2-13 x 1.50
53 ft-lbs.
640 in-lbs.
35 [420]
2"
1/2-13 x 1.50
61 ft-lbs.
730 in-lbs.
40 [480]
2-1/2"
1/2-13 x 1.75
86 ft-lbs.
1030 in-lbs.
56 [670]
3"
5/8-11 x 1.75
144 ft-lbs.
1730 in-lbs.
94 [1130]
3-1/2"
5/8-11 x 2.00
125 ft-lbs.
1500 in-lbs.
82 [980]
4"
5/8-11 x 2.00
125 ft-lbs.
1500 in-lbs.
82 [980]
5"
5/8-11 x 2.25
125 ft-lbs.
1500 in-lbs.
82 [980]
