Front Panel Configuration
111

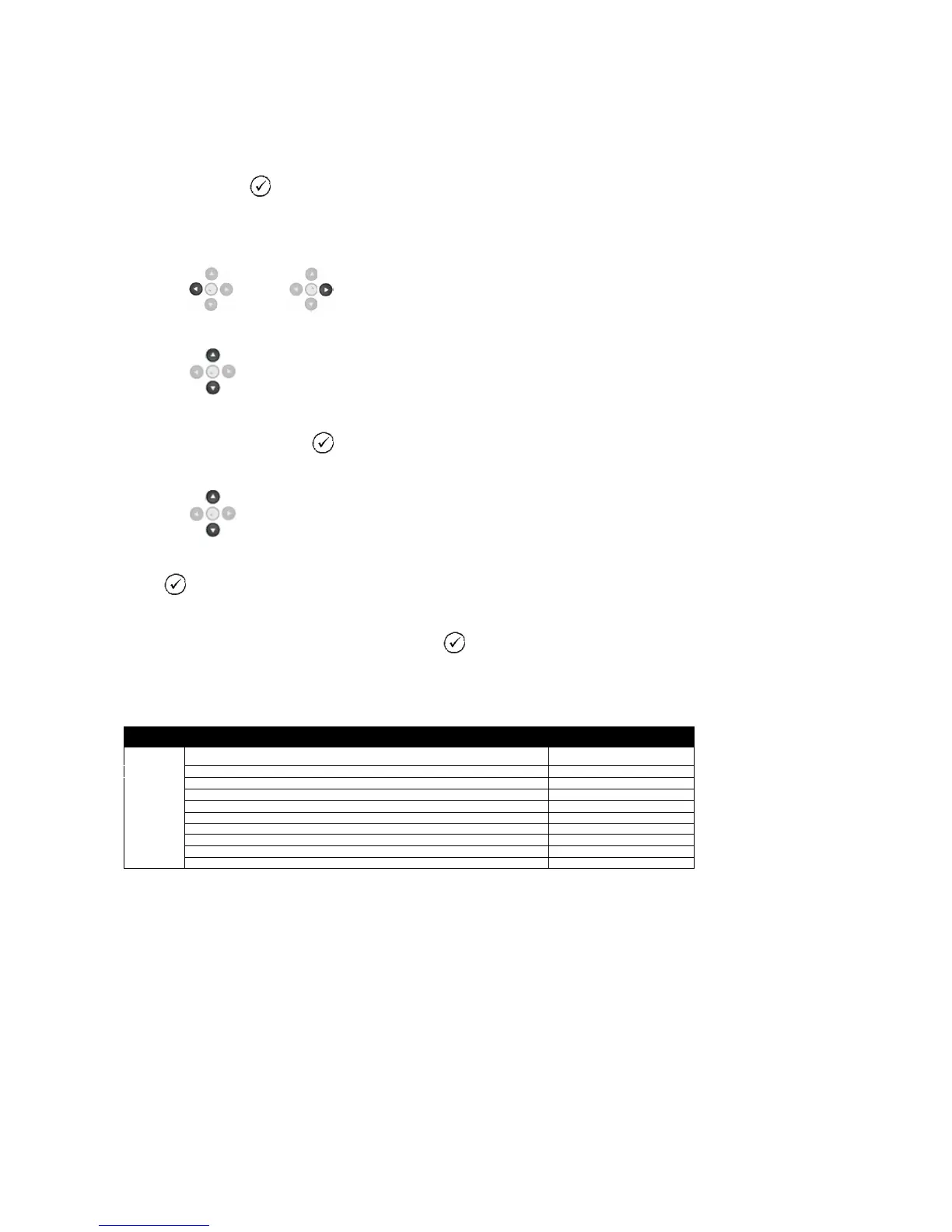

11.2 ACCESSING THE ‘RUNNING’ CONFIGURATION EDITOR
The ‘running’ editor can be entered while the engine is running. All protections remain active if the engine is
running while the running editor is entered.
Press and hold the button to enter the running editor.
11.2.1 EDITING A PARAMETER
Enter the editor as described above.
Press the (left) or (right) buttons to cycle to the section you wish to
view/change.
Press the (up or down) buttons to select the parameter you wish to
view/change within the currently selected section.
To edit the parameter, press to enter edit mode. The parameter begins to flash
to indicate that you are editing the value.
Press the (up or down) buttons to change the parameter to the required
value.
Press to save the value. The parameter ceases flashing to indicate that it has
been saved.
To exit the editor at any time, press and hold the button.
11.2.2 ADJUSTABLE PARAMETERS (RUNNING EDITOR)
Running Editor (Factory default settings are shown in bold italicised text)
Sectio
Parameter as shown on display Factory Setting
DISPLAY Contrast 53%
Language
English
)
Load Demand priority
(1)
Load Power factor
0-100% (0)
Load parallel power
0-100% (50)
Enable commissioning screens
Inactive, Active
Override starting alarms
Inactive, Active
Voltage adjust (manual mode only engine running breaker open)
0-100 % (0)
Frequency adjust (manual mode only engine running breaker open)
0-100 % (0)
Enable mains decoupling test mode (Stop mode only)
Inactive Active
