DSE DSE8610 - Connection to Company Infrastructure Ethernet

Specification
26

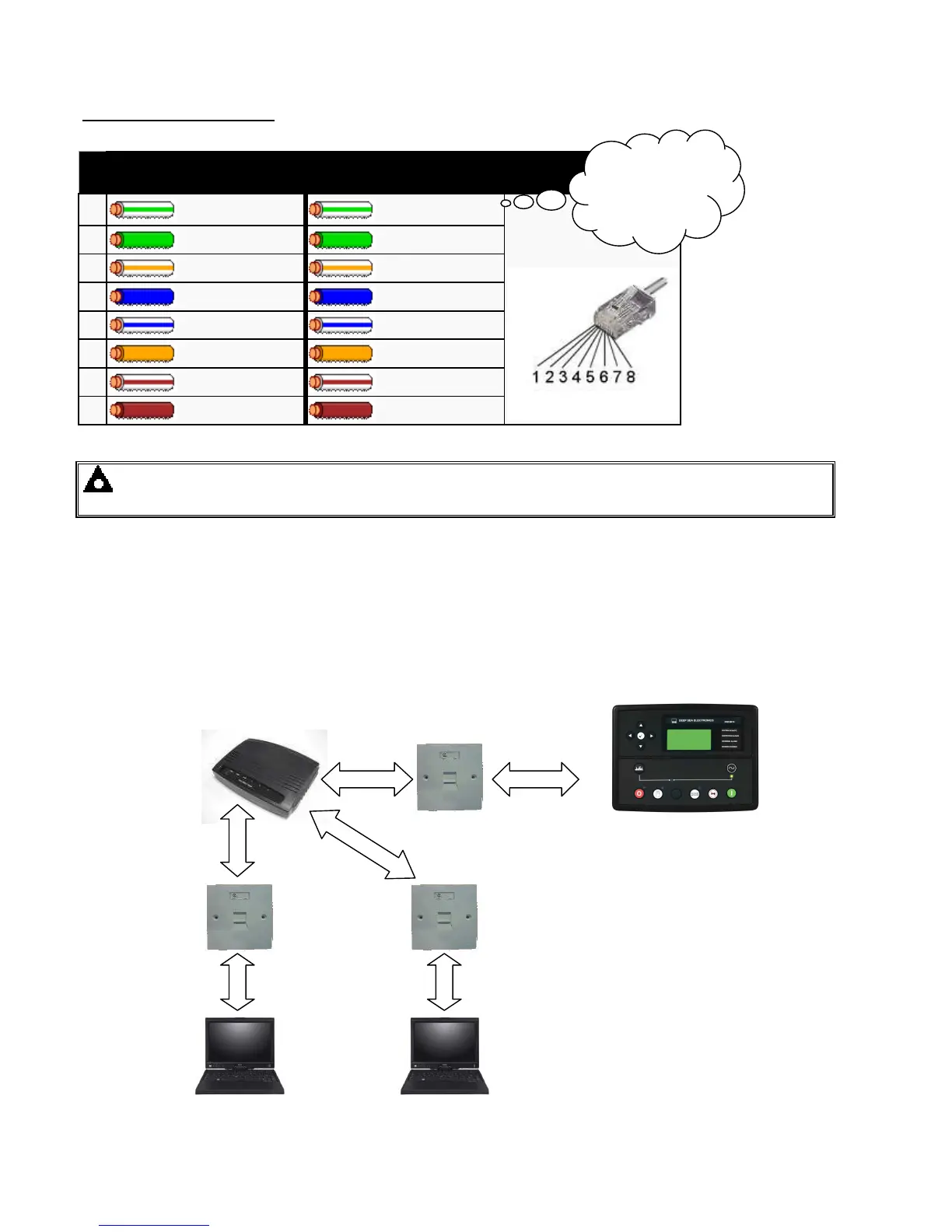

Ethernet cable wiring detail
.
10baseT/100baseT
Pi
n
Connection 1 (T568A) Connection 2 (T568A)
1
white/green stripe white/green stripe
2
green solid green solid
3
white/orange stripe white/orange stripe
4
blue solid blue solid
5
white/blue stripe white/blue stripe
6
orange solid orange solid
7 white/brown stripe
white/brown stripe
8
brown solid brown solid
NOTE:- DSE Stock a 2m (2yds) Ethernet Cable – Part number 016-137. Alternatively they can be
purchased from any good PC or IT store.
CONNECTION TO COMPANY INFRASTRUCTURE ETHERNET
Requirements
• DSE8610
• Ethernet cable (see below)
• Working Ethernet (company or home network)
• PC with Ethernet port and Windows Internet Explorer 6 or above, Firefox
For the advanced
Engineer, this cable
has both ends
terminated as T568A
(as shown below) or
T568B.
Ethernet cable
PC Network
wall connection
sockets
Ethernet router
or ADSL router
