Service Manual for Electric Convection Oven
XX CONTROL PANEL ASSEMBLY
WARNING: DISCONNECT OVEN FROM POWER
SOURCE BEFORE PERFORMING
ANY SERVICE.

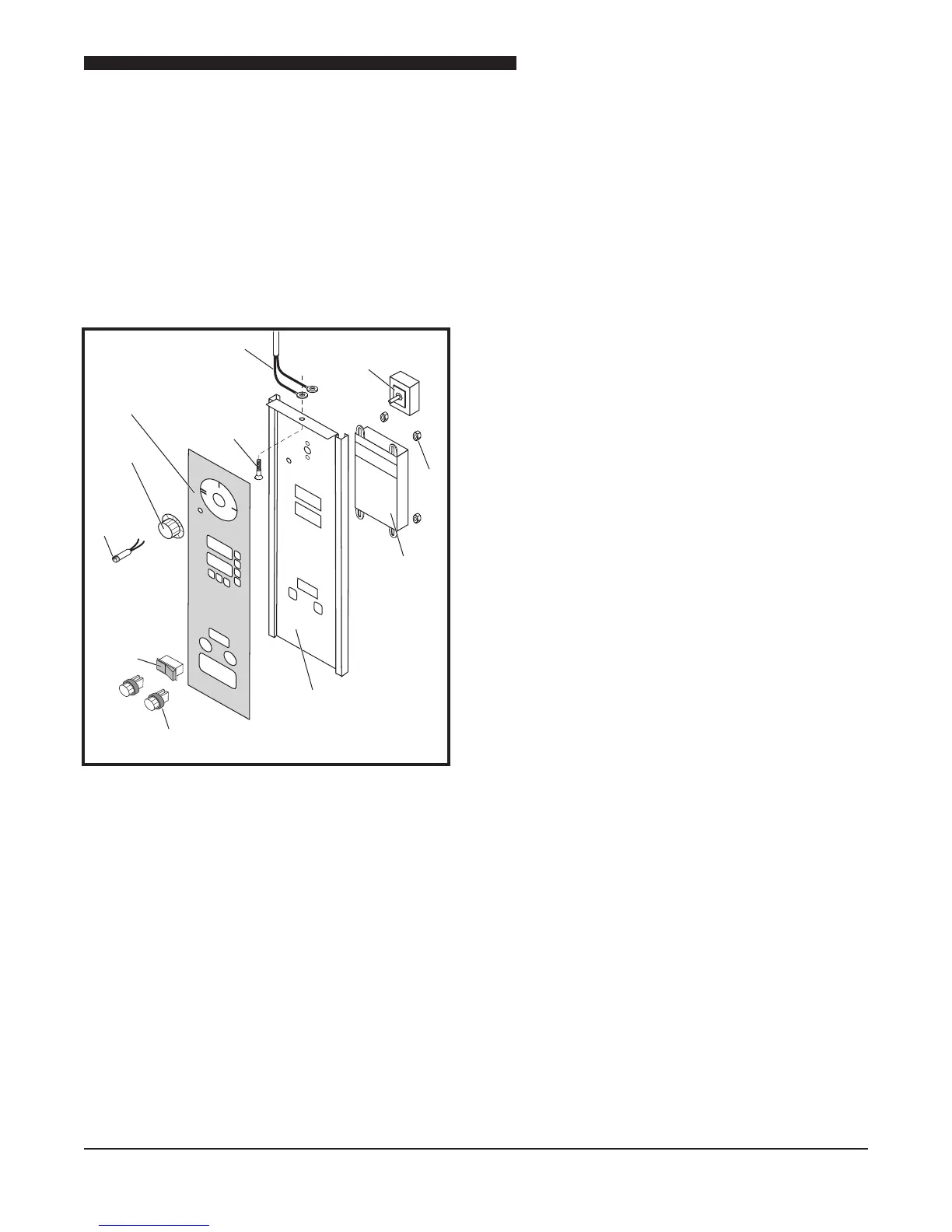

Component Access Procedure
Remove screw at top center of XX Control Panel
assembly and slide Control Panel out to allow access
to Control Panel components.
Power
Switch
Nut
XX
Controller
Temperature
Probe
Screw
Knob
Oven
Ready
Light
Fan
Switch
Fuse Holder &
Fuse (10 amp delay)
5
/
9
WARNING
Mylar
Control
Panel
POWER Switch
1. Perform Component Access Procedure.
2. Loosen setscrews and remove knob from POWER
Switch.
3. Tag and disconnect wires from POWER Switch..
4. Remove nut securing POWER Switch.
5. Remove POWER Switch from rear of Control
Panel.
6. Reverse procedure to install POWER Switch.
XX Controller
1. Perform Component Access Procedure
2. Tag and disconnect wires from Controller.
3. Remove knobs from front of Control Panel.
4. Remove nuts securing Controller to Control Panel.
5. Remove Controller from rear of Control Panel.
6. Reverse procedure to install Controller.
OVEN READY Light
1. Perform Component Access Procedure.
2. Tag and disconnect wires to OVEN READY Light.
3. Remove OVEN READY Light from front of Control
Panel.
4. Reverse procedure to install OVEN READY Light.
Fan Switch
1. Perform Component Access Procedure.
2. Tag and disconnect wires from Fan Switch.
3. Remove Fan Switch from front of Control Panel.
4. Reverse procedure to install Fan Switch.
LIGHT Switch
NOTE: LIGHT Switch is only on the 6/13 Oven.
1. Perform Component Access Procedure.
2. Tag and disconnect wires from LIGHT Switch.
3. Remove LIGHT Switch from front of Control Panel.
4. Reverse procedure to install LIGHT Switch.
Fuse and Fuse Holder
1. Remove Fuse Cap to replace Fuse.
2. Perform Component Access Procedure.
3. Tag and disconnect wires to Fuse Holder.
4. Remove nut securing Fuse Holder.
5. Remove Fuse Holder from front of Control Panel.
6. Reverse procedure to install a new Fuse Holder.
