Operating Instructions For TD/TAD4 Dual Fuel Burner
June 13 44 of 165 TD/TAD4 Manual Rev 4

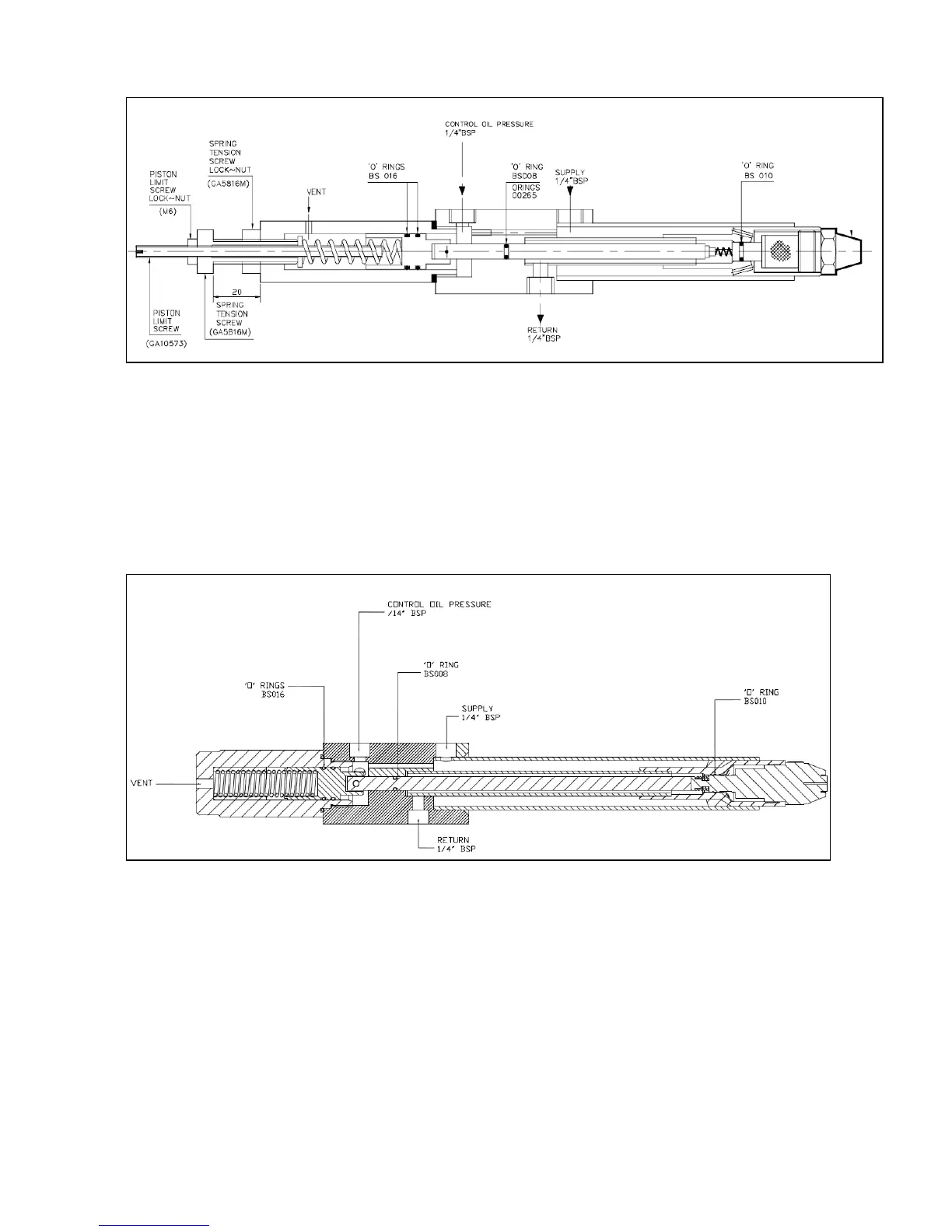

4.3.2 ART114 Burner Gun
To set the spring tension of the piston, the spring tension screw is set 20mm from the back chamber
as shown above. The piston stroke is setup using the piston limit screw. The screw is first fully
screwed in so that the piston cannot move; the screw is then moved out by 10mm to set the stroke.
The nozzle has a vent on the back chamber to allow the piston to move, DO NOT BLOCK THE
VENT.
4.3.3 ART 1400 Burner Gun
The ART1400 nozzle has a set spring tension and piston stroke; no adjustments can be made to the
operation of the burner gun.
The nozzle has a vent on the back chamber to allow the piston to move, DO NOT BLOCK THE
VENT.
