CONFIGURING PRINTER DRIVERS
For die-cuts with a pre-printed header at the top—such as arc flash or NFPA labels—
the media sensor should be adjusted so the end is centered over the blank printable
area of the label. Slide the media sensor until its end is located over the blank white
printable area.
4.2.4 MEDIA SENSOR ADJUSTMENT FOR RTK COLOR BAR DIE-CUT LABELS
For RTK color bar die-cuts with a blank printable area at the top, the media sensor
should be adjusted so it’s centered over the label’s printable area. Slide the media
sensor until its end is located over the blank white printable area.

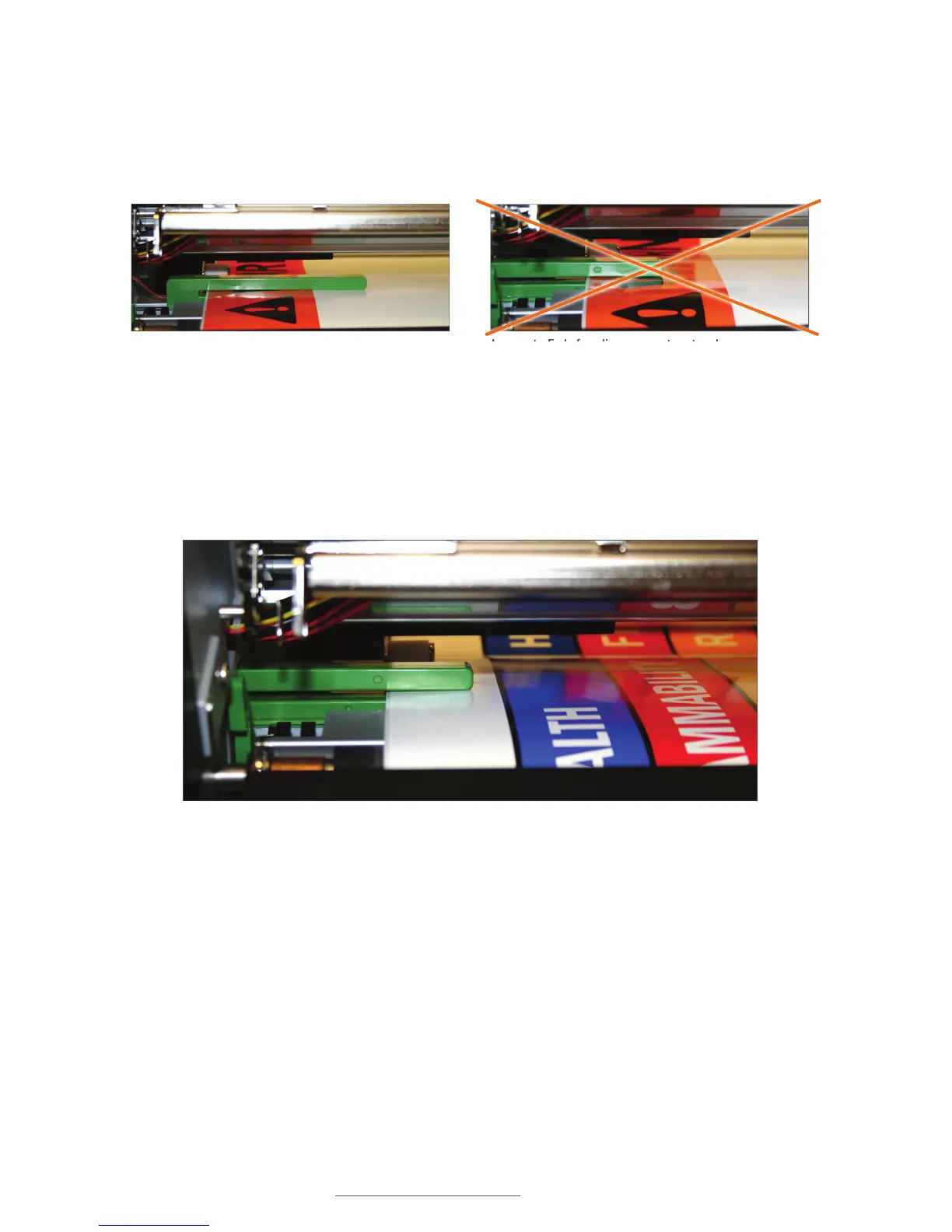

Incorrect: End of media sensor not centered over
printable area
Correct: End of media sensor centered over printable area
(white section of label)
It
Ed f di t t d
I t
Ed f di t t d
Correct: End of media sensor centered over RTK color bar label printable area
