24 | 4.3 B Mark Label Printing Instructions
DuraLabel.com | 800.788.5572
CONFIGURING PRINTER DRIVERS
4.3 B Mark Label Printing Instructions
4.3.1 LABEL SUPPLY CALIBRATION
Label supply must be calibrated to print B Mark labels. Using the menu on the left side
of the front of your printer, follow these steps:
A. Press the Menu button.
B. Select Setup.
C. Select Sensor.
D. Select Calibration.
E. Select B Mark Mode.
F. Select Automatic.
G. The printer will begin to feed supply as it calibrates.
H. Follow directions in Section 4.3.2, Driver Settings.
4.3.2 DRIVER SETTINGS
Your printer driver has been preset to reduce the number
of steps to be completed manually. You can change your
settings by following these steps:
A. For B Mark labels, select Labels With Marks from the
Type drop-down menu.
B. Set Mark Height to 0.12 inches and Mark Offset to 0
inches (default).
C. Click Apply, then OK.
NOTE: Ensure the printer
cuts correctly on B Mark
labels by adjusting Feed
Offset on the Printing
Preferences dialog box
Stock tab. The 0 default
setting works best for
most label supply.

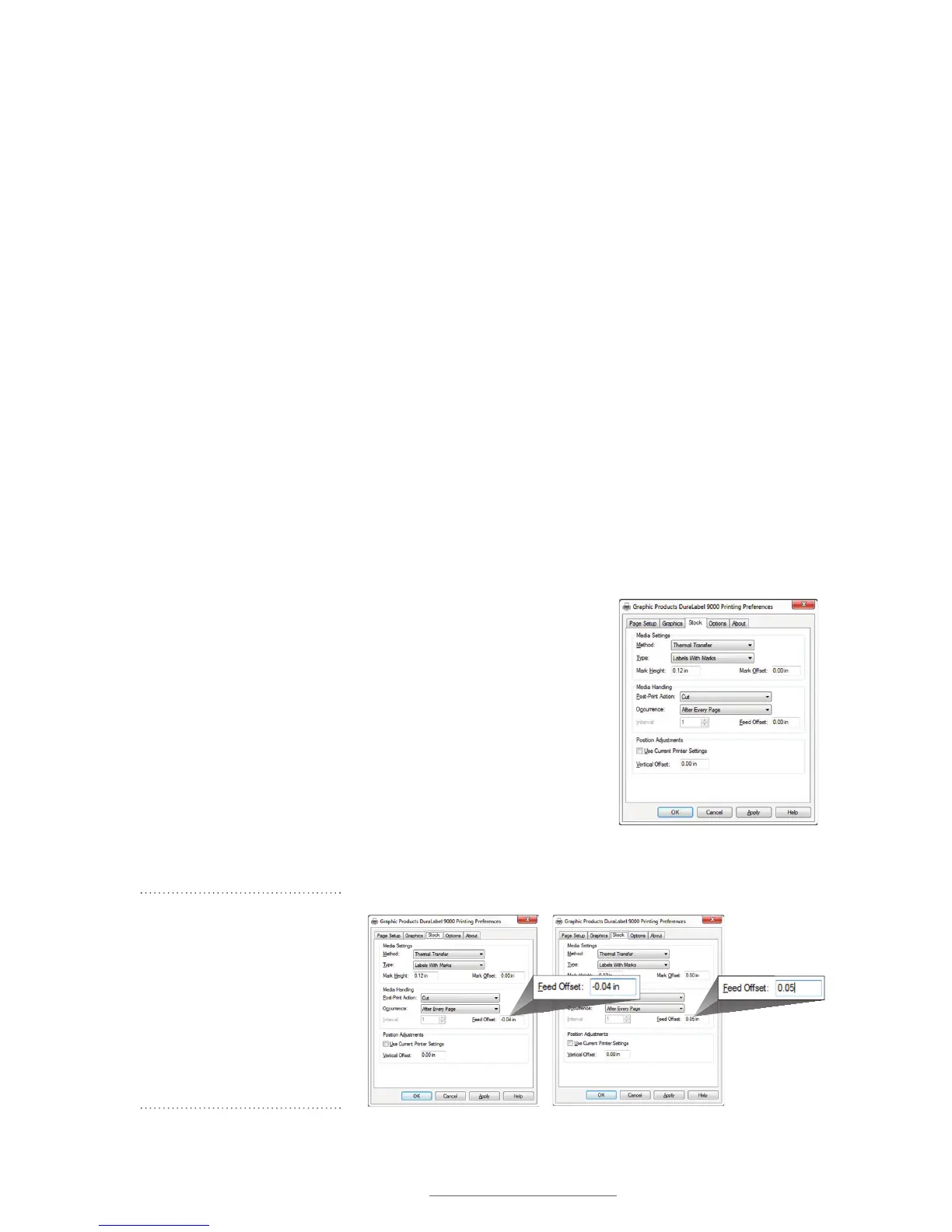

Printing Preferences dialog box, with
Type set to “Labels With Marks” on the
Stock tab
If the printer does not cut a B Mark label accurately, adjust Feed Offset up or
down.
