2.5 Loading Ribbon | 11

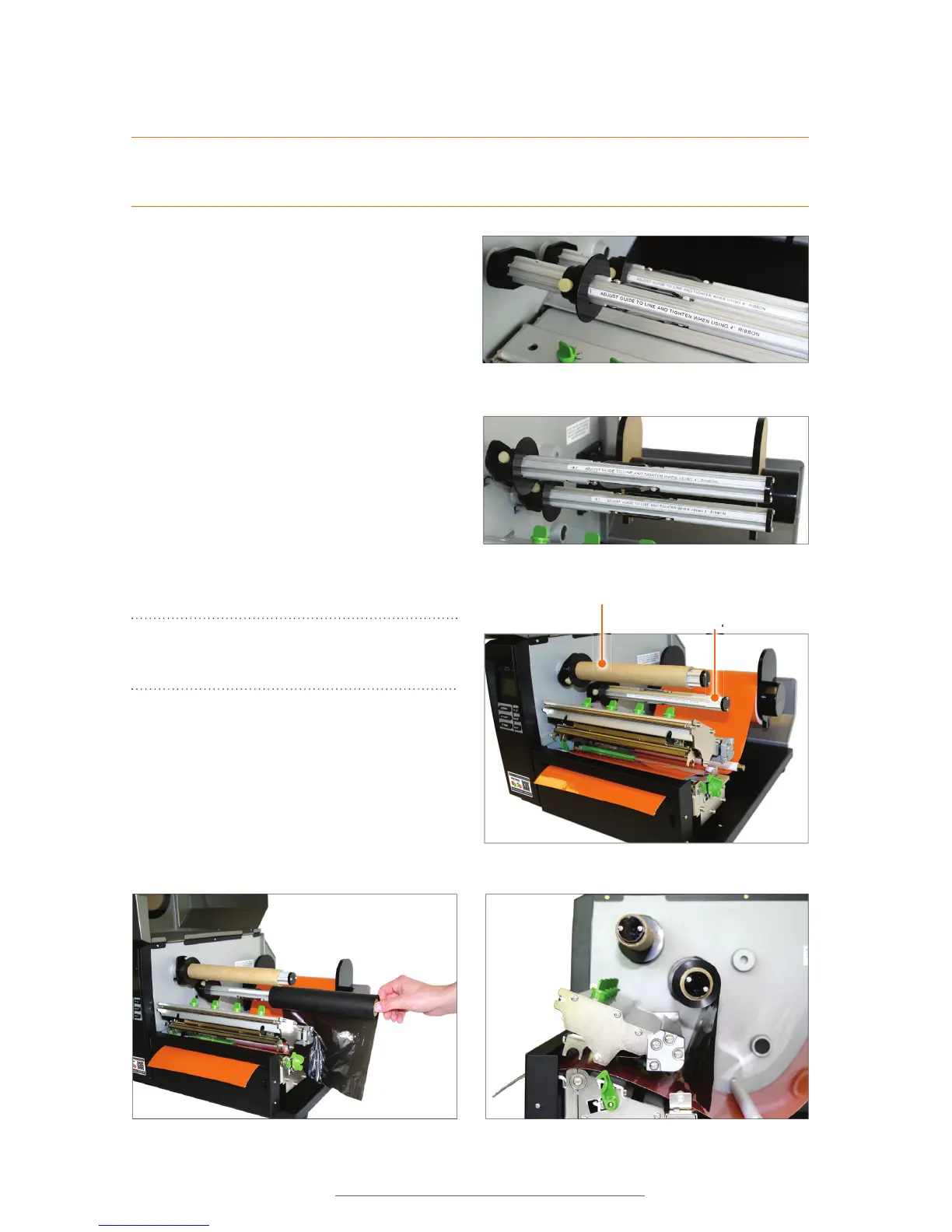

LOADING THE PRINTER
2.5 Loading Ribbon
IMPORTANT! Always turn the printer OFF when loading supplies. Always wait at least 5
seconds before turning power back ON.
A. Set ribbon spindle guides based on
loaded ribbon size.
a. For 2.33” ribbon, move each
ribbon guide to the line indicated
on the ribbon spindle and tighten
the screw on the top of each
ribbon guide.
b. For 8.66” ribbon, move the ribbon
guides against the inside printer
wall.
B. Slide an empty supply core onto the
front ribbon rewind spindle.
Guides for 4.33" ribbon
Guides for 8.66" ribbon
Empty supply core applied to front ribbon rewind spindle
Ribbon Rewind Spindle
Ribbon Spindle
NOTE: Make sure the empty supply core
is Áush against the ribbon guide.
C. Slide a ribbon supply roll onto the
ribbon spindle, flush against ribbon
guide, with the leading edge hanging
down toward the back of printer.
Ribbon supply being placed on ribbon spindle Loaded ribbon supply on ribbon spindle
To Next Page
