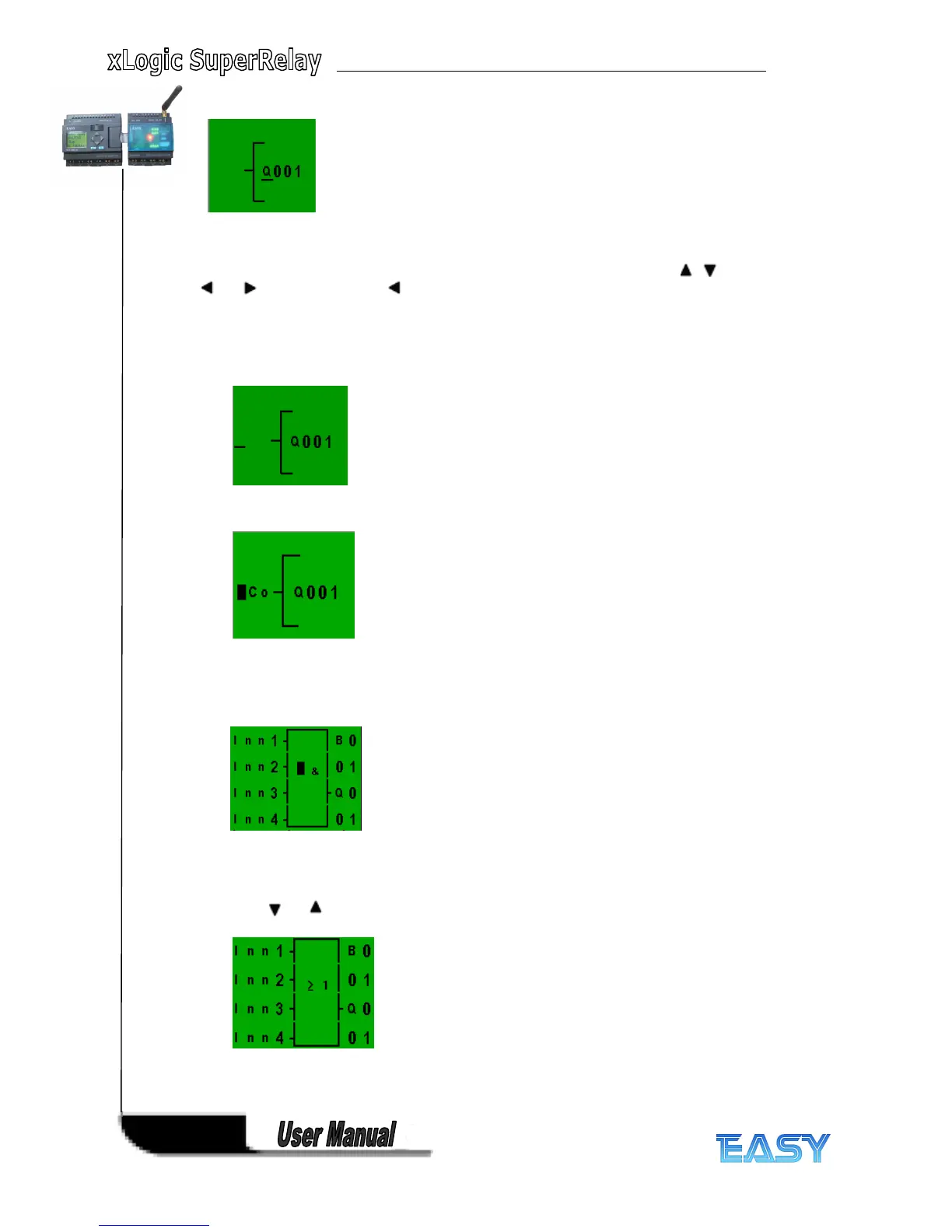

You will see an underscore below the Q in Q 00 1, which is the cursor. The cursor indicates your
current position in the circuit program. You can move the cursor by pressing the , ,
and keys. Now press the key. The cursor moves to the left.
At this point you enter only the first (OR) block. Press OK to select editing mode.
The cursor no longer appears in the form of an underscore; but instead as a flashing solid
square. xLogic offers you various options here.
Select GF (basic functions) by pressing the key until GF appears, and confirm with OK.
xLogic now shows the first block from the list of basic functions:
The AND is the first block of the basic function list.
The soild square cursor prompts you to select a block.
Now press or until the OR block appears on the display:
Press OK to confirm your entries and exit the dialog.
The display now shows: Your complete circuit program layout:
