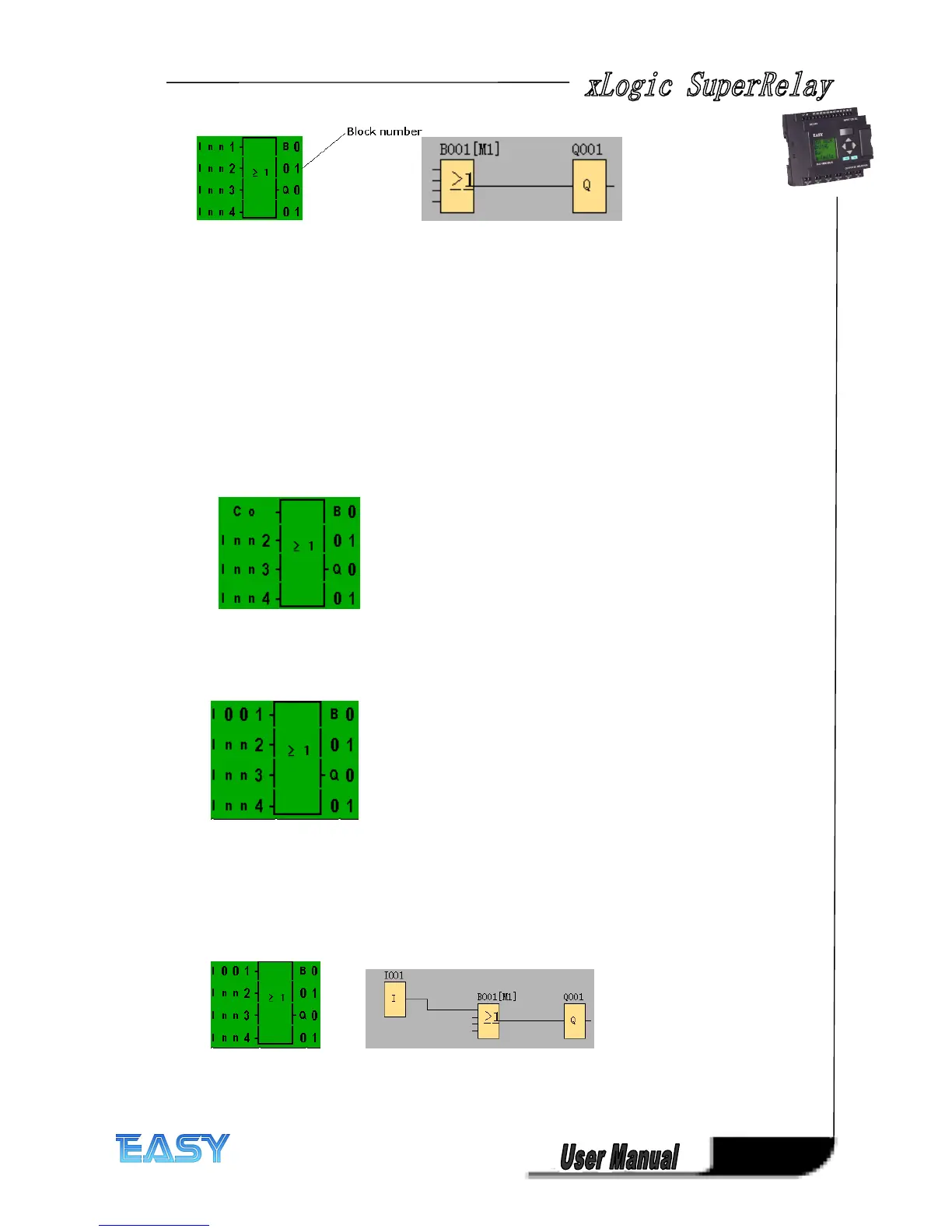

You have now entered the first block. Each new block is automatically assigned a block number.
The only thing left to do is interconnect the block inputs. This is how it is done:
Press OK.
The display now shows:
Select the Co list: Press OK
The display now shows:
The first element of the Co list is the "Input 1" character, namely "I 00 1".
Press OK. I1 is now connected to the input of the OR block. The cursor jumps to the next input
of the OR block.
The display now shows: Your complete circuit program in xLogic up to now:
Now you connect input I2 to the input of the OR block:
1. Switch to editing mode: Press OK
