With a 0 to 1 transition of the signal at input En, the display outputs your configured message
text (actual value, text, TOD, date) in RUN mode.
Acknowledgement disabled (Ack = Off):
The message text is hidden with a 0 to 1 signal transition at input En.
Acknowledgement enabled (Ack = On):
After input En is reset to 0, the message text is displayed until acknowledged by pressing the
OK button. The message text cannot be acknowledged as long as input En is high.
If several message text functions were triggered with En=1, the message with the highest
priority (1 = lowest, 64 =highest) is displayed. This also implies that a new message text is only
displayed if its priority is higher than that of previously enabled message texts.
After a message text is disabled or acknowledged, the function automatically shows the
previously active message text that takes the highest priority.
You can press the and keys to step through multiple active message texts.
Example
Example
Example
Example

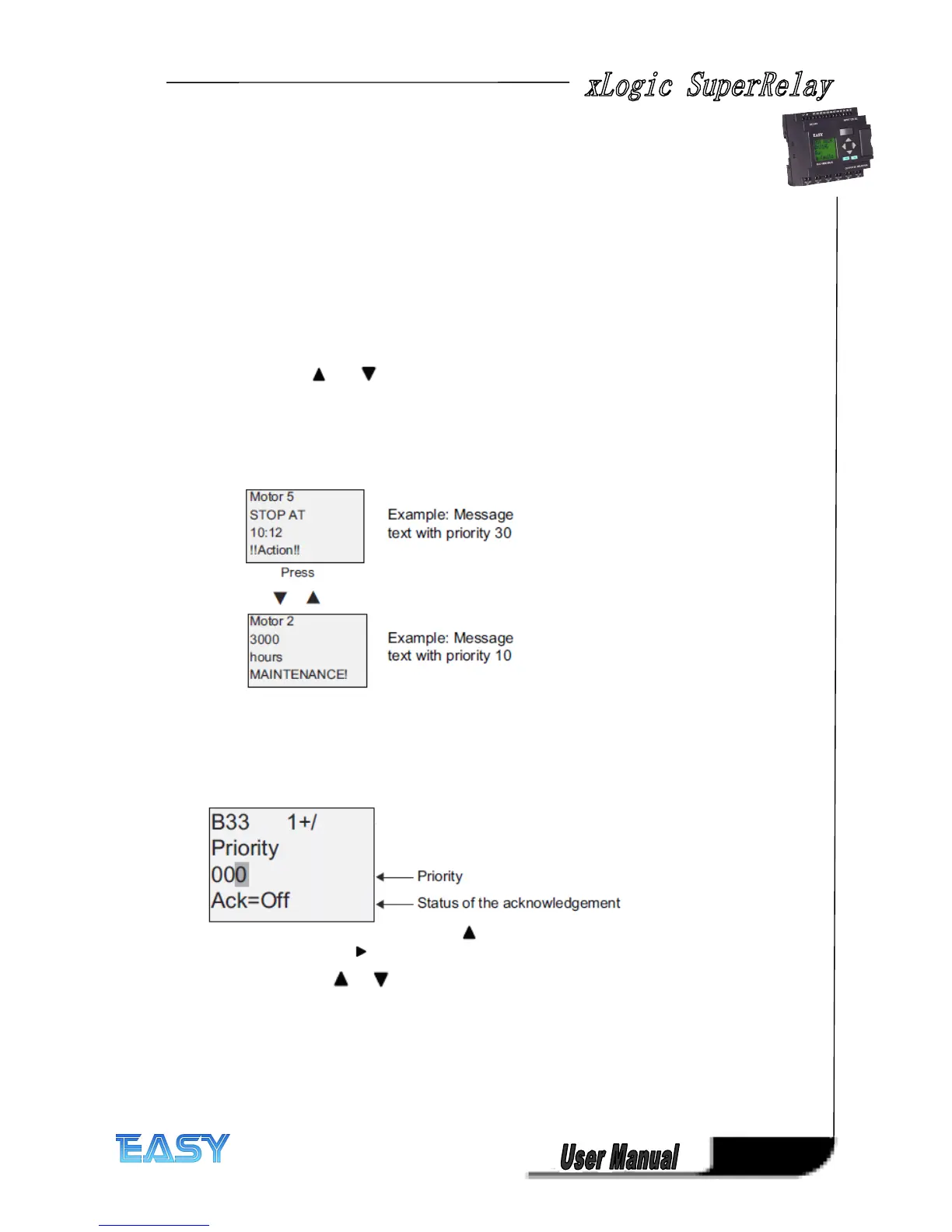

This is how two message texts could be shown:
Display field of xLogic in RUN mode
Input
Input
Input
Input P
P
P
P configuration
configuration
configuration
configuration
From the input P, you configure the following characteristics of the message text:
● Priority
● Acknowledgement
● Message destination
1. Increase the priority to 1: Cursor on '0' +
2. Change to 'Ack': Press
3. Enable 'Ack': Press or
xLogic shows:
