Eaton 93PM User Manual

UPS System Installation
Eaton 93PM UPS (20–100 kW, 480V – 100 kW Frame) Installation and Operation Manual P-164000227—Rev 6 www.eaton.com/powerquality 4-11

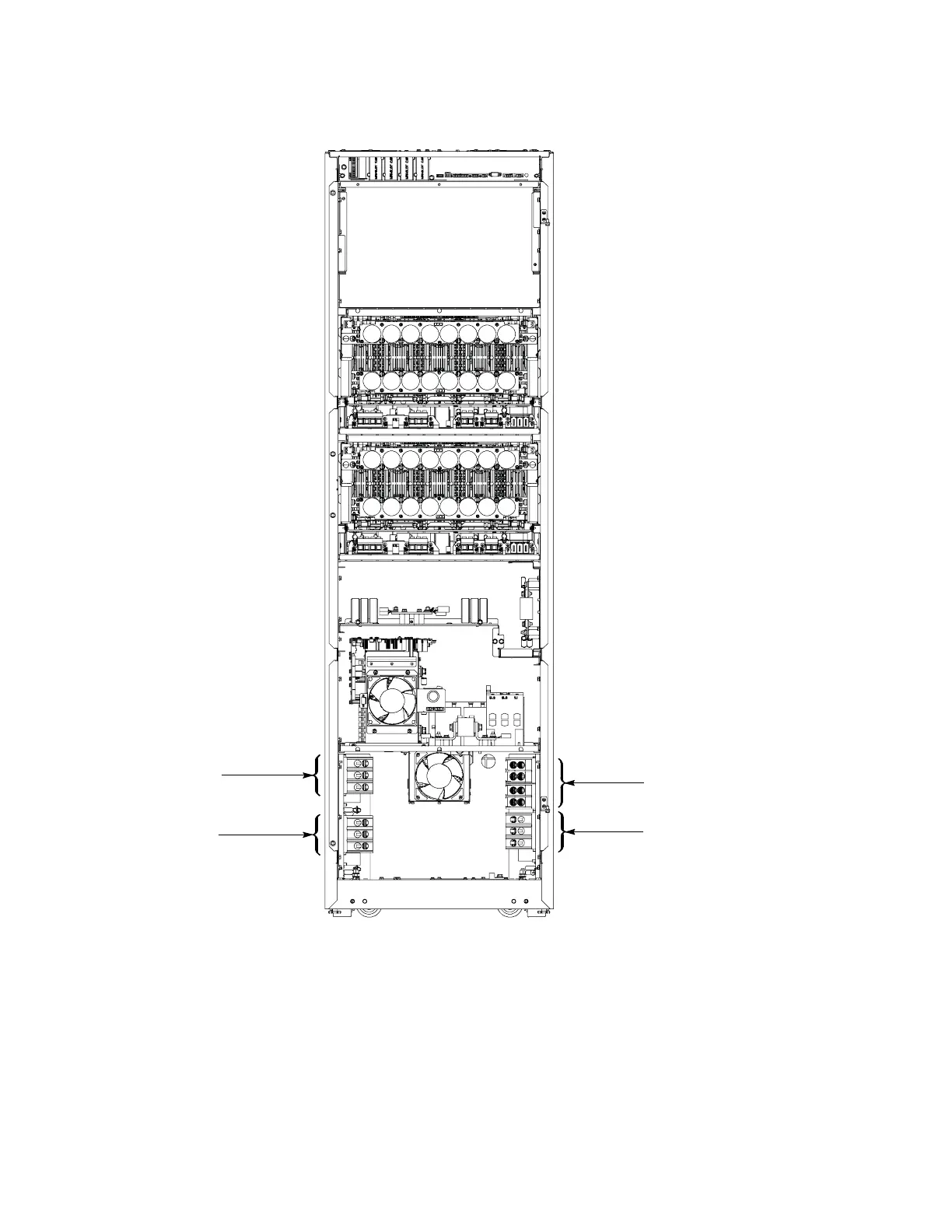

Figure 4-7. Power Terminal Locations
DC Input from Battery
(See Figure 4-8 for detail.)
AC Input to UPS Rectifier
(A, B, C)
(See Figure 4-8 for detail.)
Front
AC Output to Critical Load
(A, B, C)
(See Figure 4-8 for detail.)
AC Input to UPS Bypass
(A, B, C,)
(See Figure 4-8 for detail.)

Eaton 93PM Specifications

General

Frequency	50/60 Hz
Form Factor	Modular
Operating Temperature	0 to 40 °C (32 to 104 °F)
Efficiency	Up to 99%
Topology	Double Conversion
Battery Type	Valve-Regulated Lead-Acid (VRLA) or Lithium-ion
Communication Interface	Modbus, SNMP
Relative Humidity	0 to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Apparent Power	10-1500 kVA
