Eaton 93PR Series - Figure 2-2. 93 PR 25-75 Kw UPS Wiring Diagram (Without Internal Battery Version)

25-75 kW
User's and Installation Guide 8
The 25-75kW UPS includes a 75 kW rated static bypass section, max. 8 internal paralleled UPM modules, It's
including internal battery version and without Internal Battery Version.

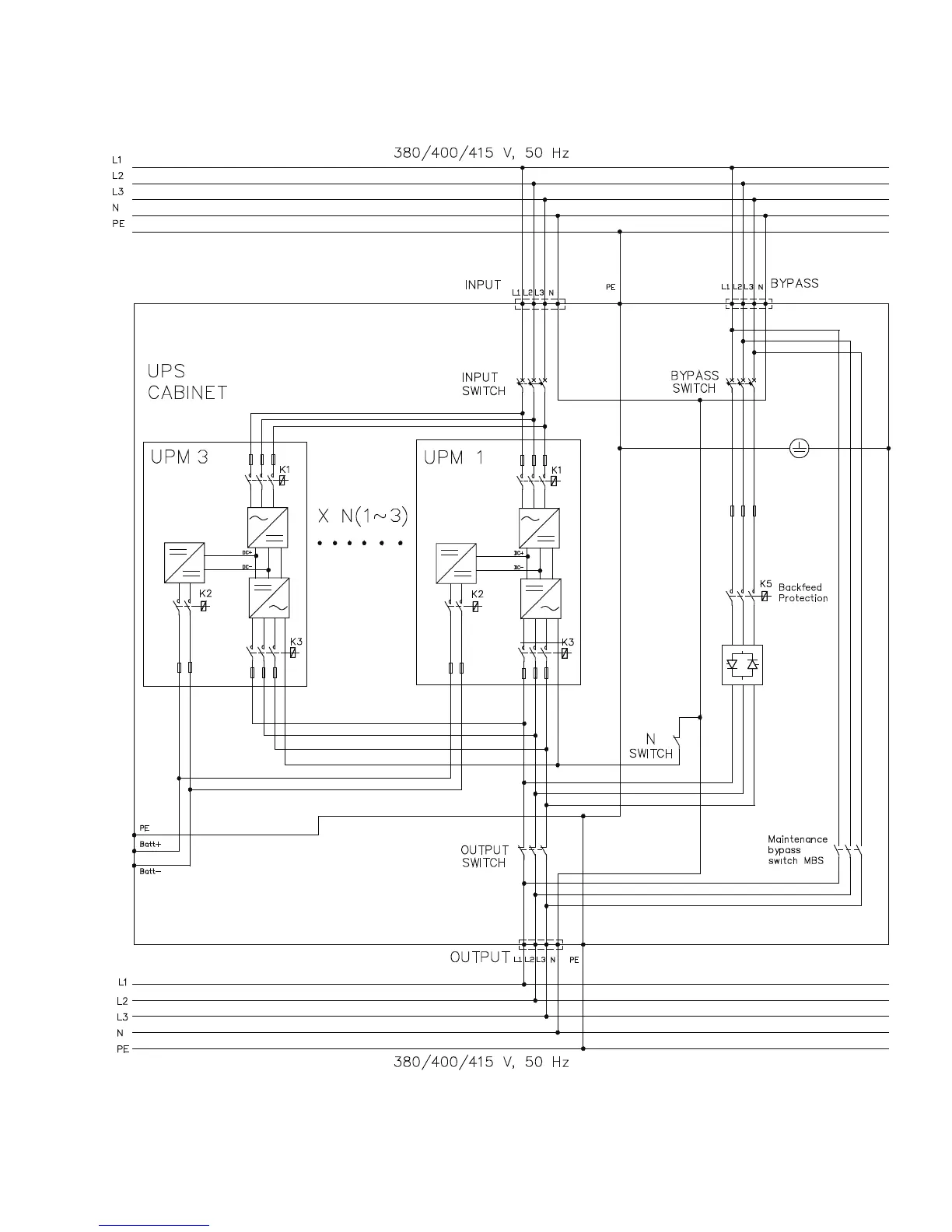

Figure2-2:93PR25-75kWUPSWiringDiagram(Without Internal Battery Version)
