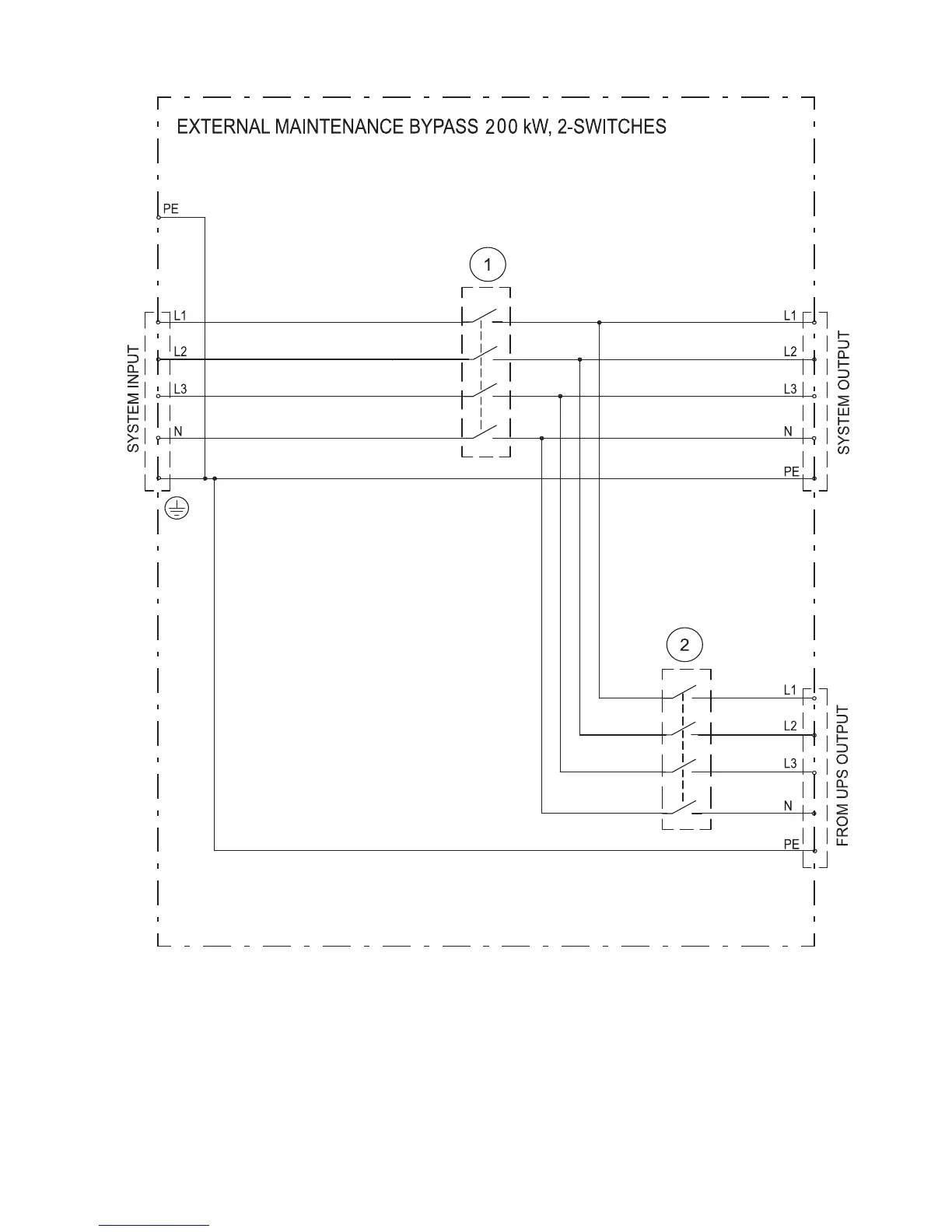

Eaton 93PR Series - Figure 2-8. Two-Switch MBS Electrical Connection Drawing

25-75 kW
User's and Installation Guide 17
1. Maintenance Bypass Switch (MBP)
2. Maintenance Isolation Switch (MIS)
Figure2-8:Two-SwitchMBSElectricalConnectionDrawing
