Eaton 93PR Series - 3.2.3. Preparation for UPS interface wiring

25-75 kW
User's and Installation Guide 52
5.1 Mini-slots
The Eaton 93PR UPS has three Mini-slot communication bays. The UPS is compatible with the following
Mini-slot cards:
•
NetworkCard-MS
Provides remote monitoring through a Web browser interface, e-mail, and a network management system
(NMS) using SNMP and connects to a twisted-pair Ethernet (10/100BaseT) network.

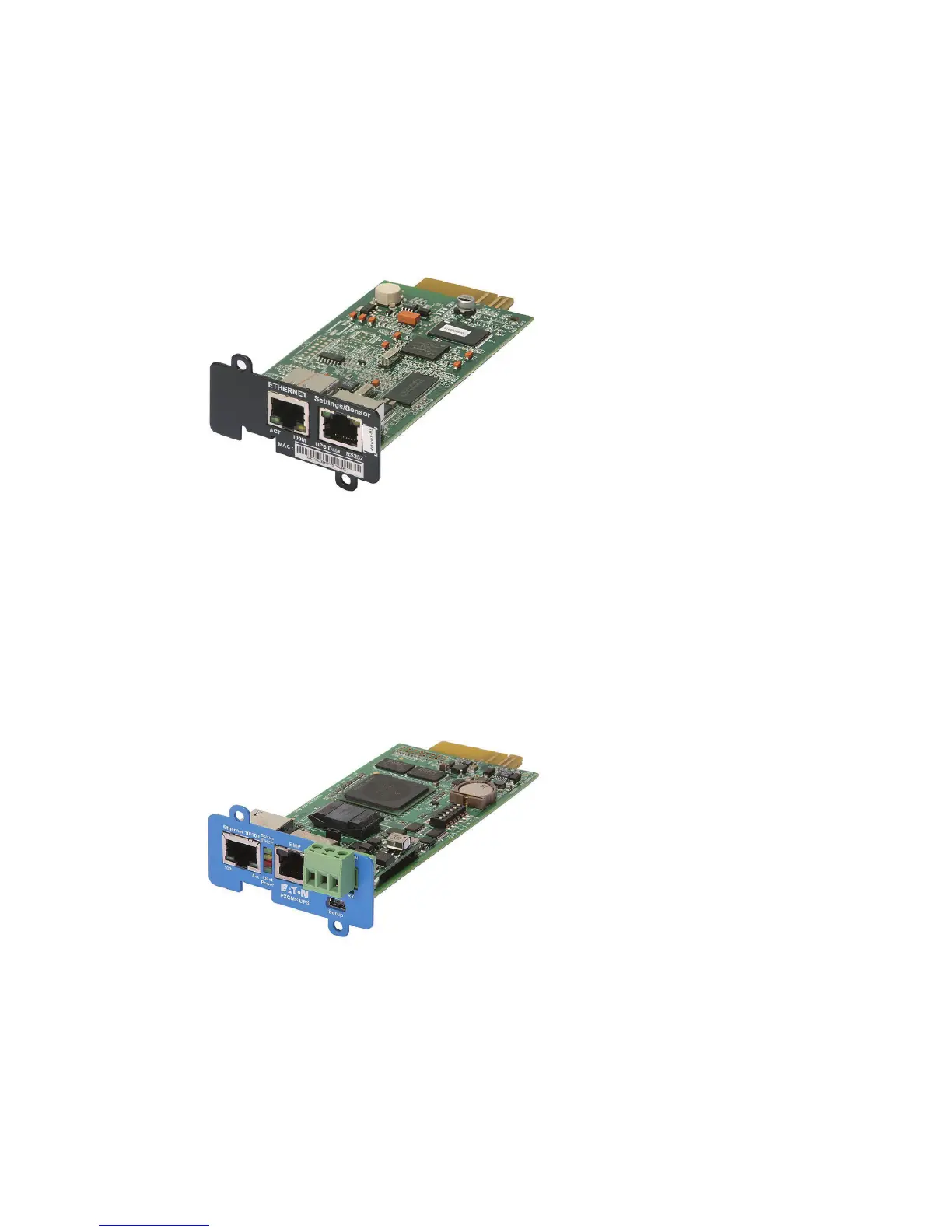

Figure5-2:NetworkCard-MS
•PXGatewayCard
Provides remote monitoring through a Web browser interface, e-mail, and a network management
system (NMS) using SNMP and connects to a twisted-pair Ethernet (10/100BaseT) network. The card also
provides direct integration of UPS information (meters and status) to a Building Management
System (BMS) using the Modbus RTU and TCP protocols.
Figure5-3:PXGatewayCard
