8 What you need to know about SmartWire-DT
8.3 SWD cycle time
SmartWire-DT Gateway EU5C-SWD-EIP-MODTCP 08/17 MN120003Z EN www.eaton.com 87

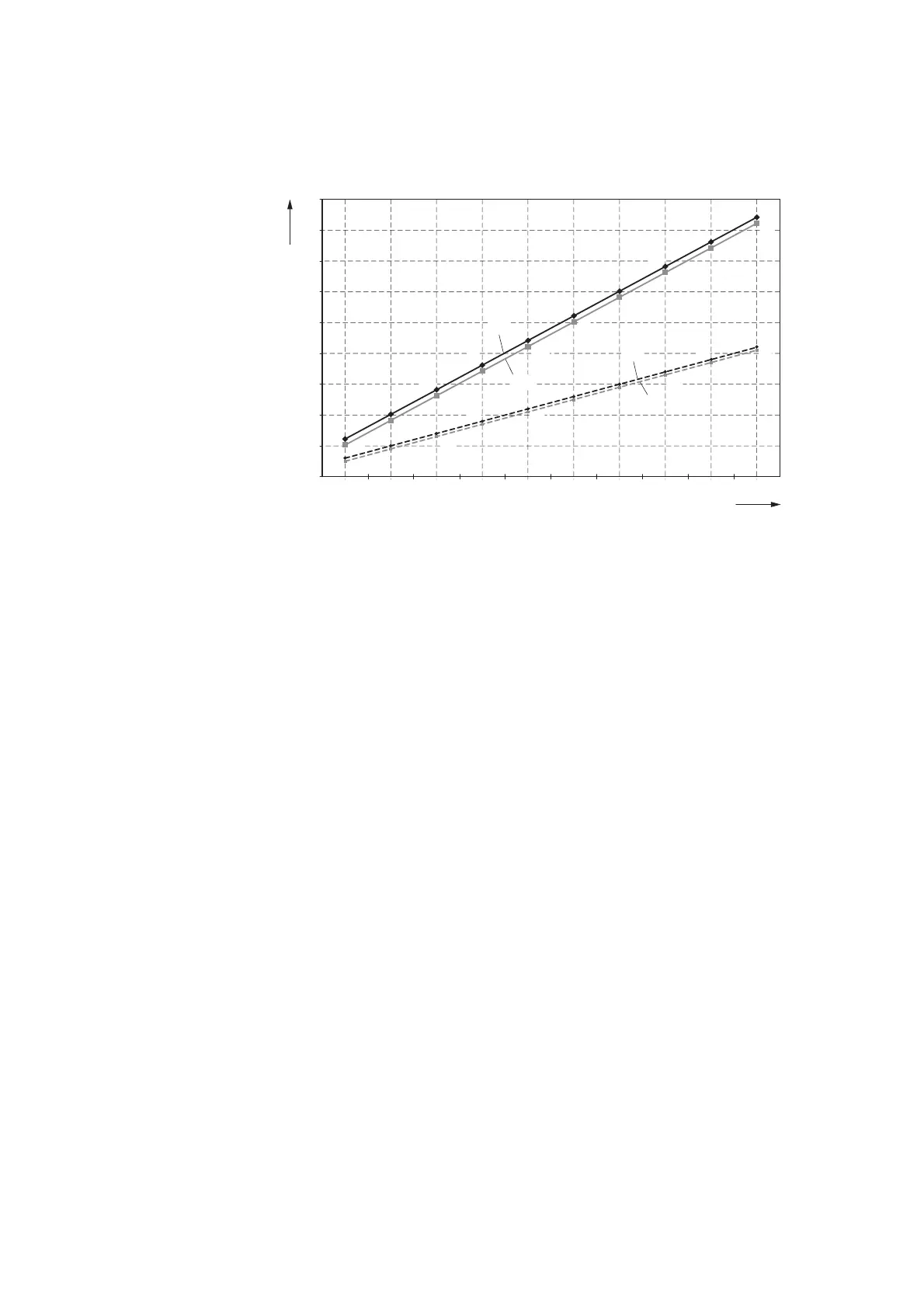

Figure 38: SWD cycle time based on the amount of transmitted payload data bytes
a 125 kBit/s: 1 SmartWire-DT module with n user data bytes
b 125 kBit/s: 99 SmartWire-DT module with n user data bytes
c 250 kBit/s: 1 SmartWire-DT module with n user data bytes
d 250 kBit/s: 99 SmartWire-DT module with n user data bytes
When the baud rate doubles, the SWD cycle time is cut in half. In the exam-
ple above, the SWD cycle time goes from 4,224 ms at 125 kbit/s to 2.112 ms
at 250 kbit/s.
