Using the Control Panel
9-27
EATON Powerware
®
9390 UPS (100–160 kVA) Installation and Operation Manual S 164201554 Rev E powerware.com
Select CALCULATION METHOD from the Maximum Current Log Setup screen 2 menu to
display the Calculation Method Setup screen. The Calculation Method Setup screen allows
the full load limit of the event being monitored to be changed. Figure 9-30 shows the
Calculation Method Setup screen.
Use the
or pushbuttons to highlight the calculation method desired, then press the
SELECT pushbutton. The action is completed, and the Maximum Current Log Setup
screen 2 displays.
To return to the Maximum Current Log Setup screen 1, press the
pushbuttononthe
menu bar.
LEVEL BASED ON 3 PHASE AVERAGE
MAXIMUM CURRENT LOG SETUP
SELECT
LEVEL BASED ON INDIVIDUAL PHASES

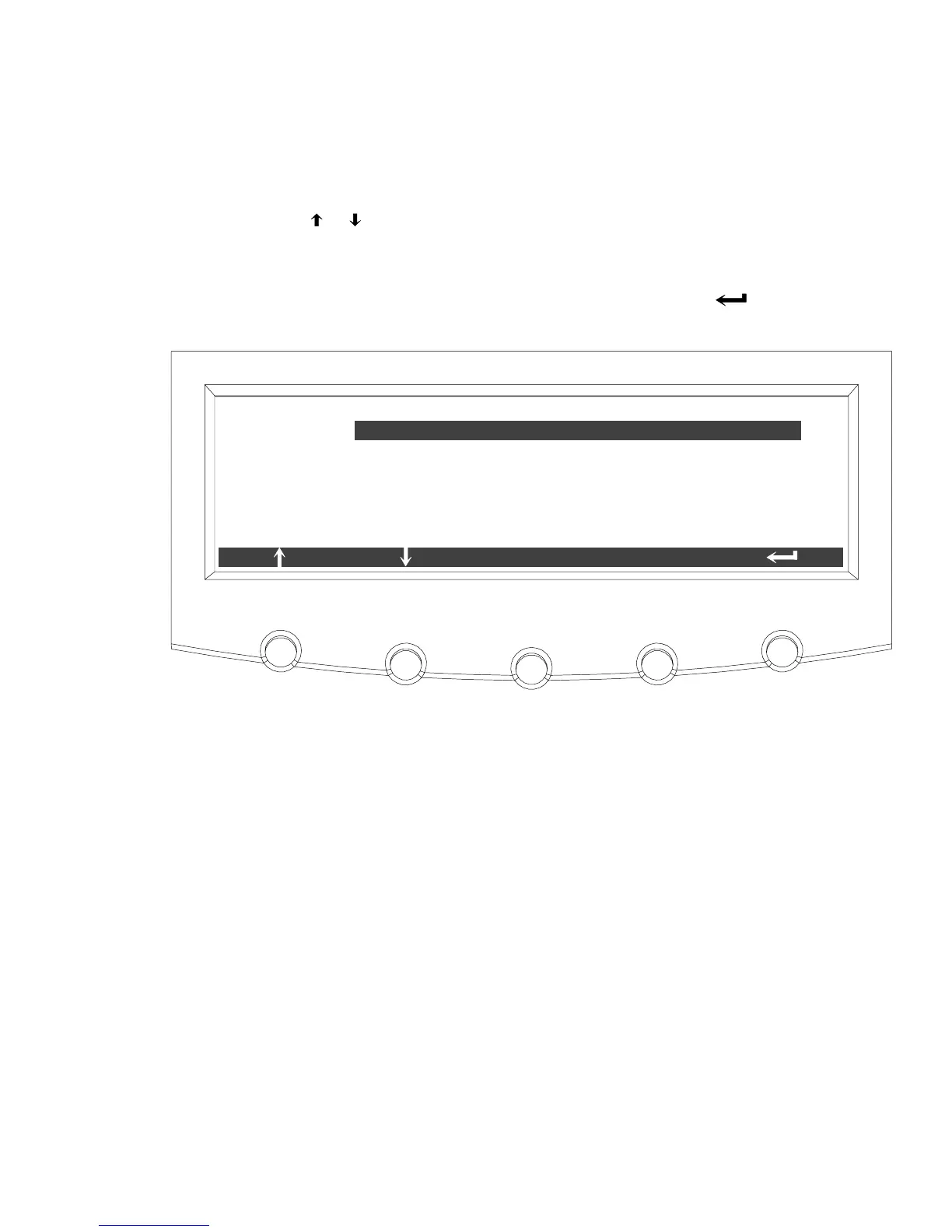

Figure 9-30. Calculation Method Setup Screen
