Using the Control Panel
9-43
EATON Powerware
®
9390 UPS (100–160 kVA) Installation and Operation Manual S 164201554 Rev E powerware.com
Select COM PORT SET UP from the System Setup Level 1 menu to display the COM Port
Setup screen. This screen allows selection of the serial COM port to set up. Figure 9-49
shows the COM Port Setup screen.
Use the
or pushbuttons to highlight the the COM port to be set up, then press the
SELECT pushbutton. To return to the System Setup screen, press the
pushbutton.
COM PORT SETUP
COM 1
COM 3
COM 2
SELECT

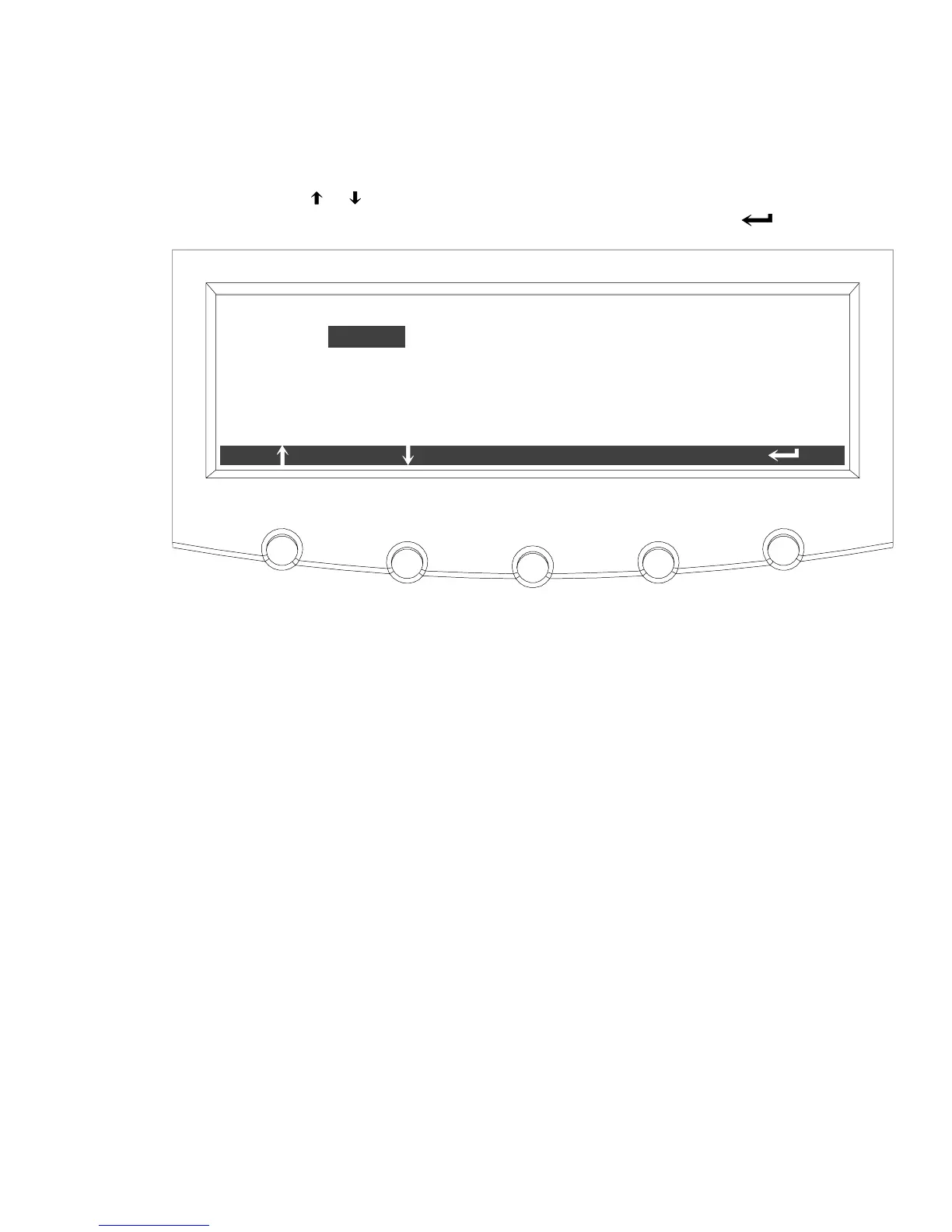

Figure 9-49. COM Port Setup Screen
