Using the Control Panel
9-14
EATON Powerware
®
9390 UPS (100–160 kVA) Installation and Operation Manual S 164201554 Rev E powerware.com
Press the CHANGE pushbutton on the Current KW Demand Log Setup Menu bar to display
the Current KW Demand Log Setup screen 2.
The Current KW Demand Log Setup screen can be used to set up or change the time
interval and maximum level log settings. Figure 9-16 shows the Current KW Demand Log
Setup screen 2.
Use the
or pushbuttons to highlight the setup function screen desired, then press the
SELECT pushbutton to display the function screen.
To return to the Current KW Demand Log Setup screen 1, press the
pushbutton on
the menu bar.
TIME INTERVAL MONITORED
CURRENT KW DEMAND LOG SETUP
SELECT
MAXIMUM LEVEL (KW)

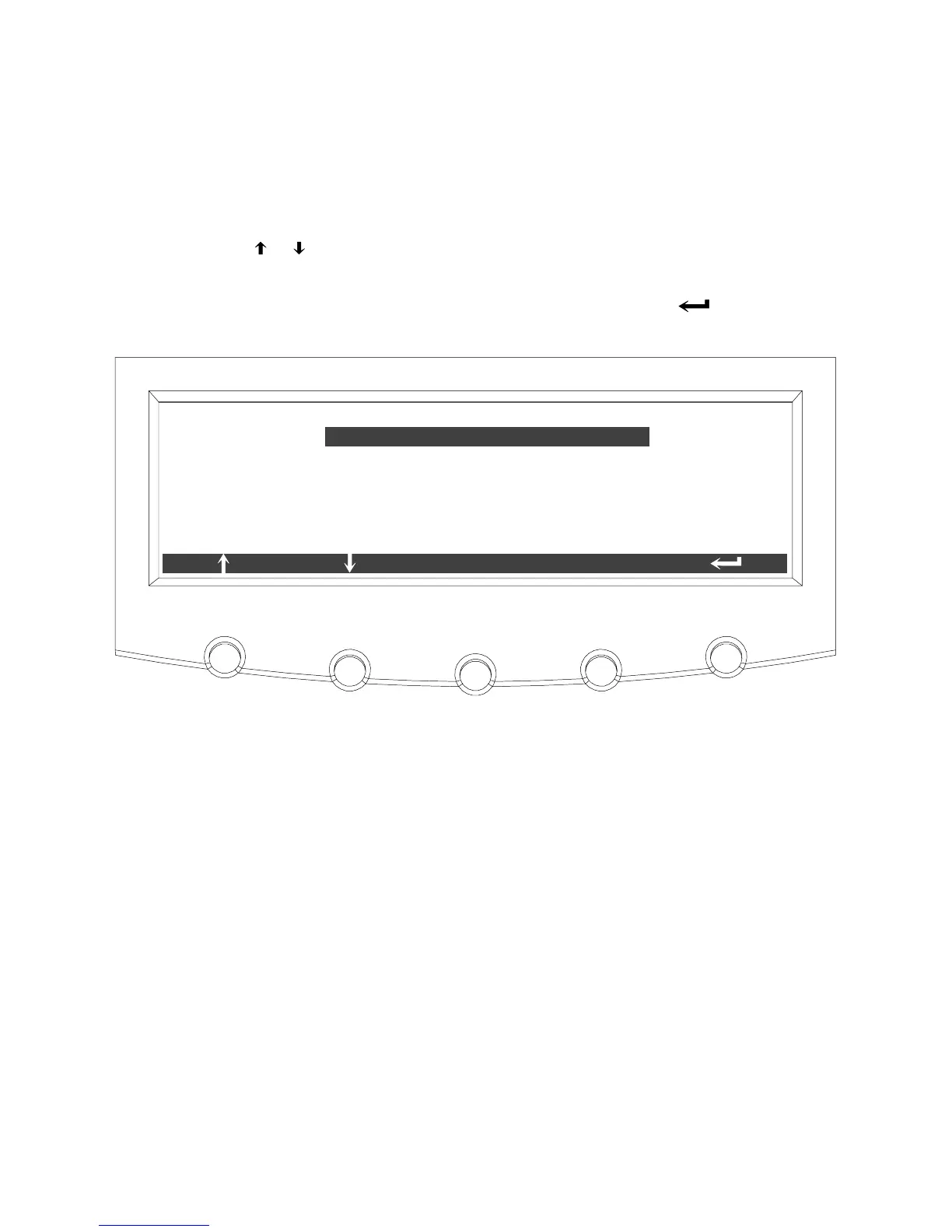

Figure 9-16. Current KW Demand Log Setup Screen 2
