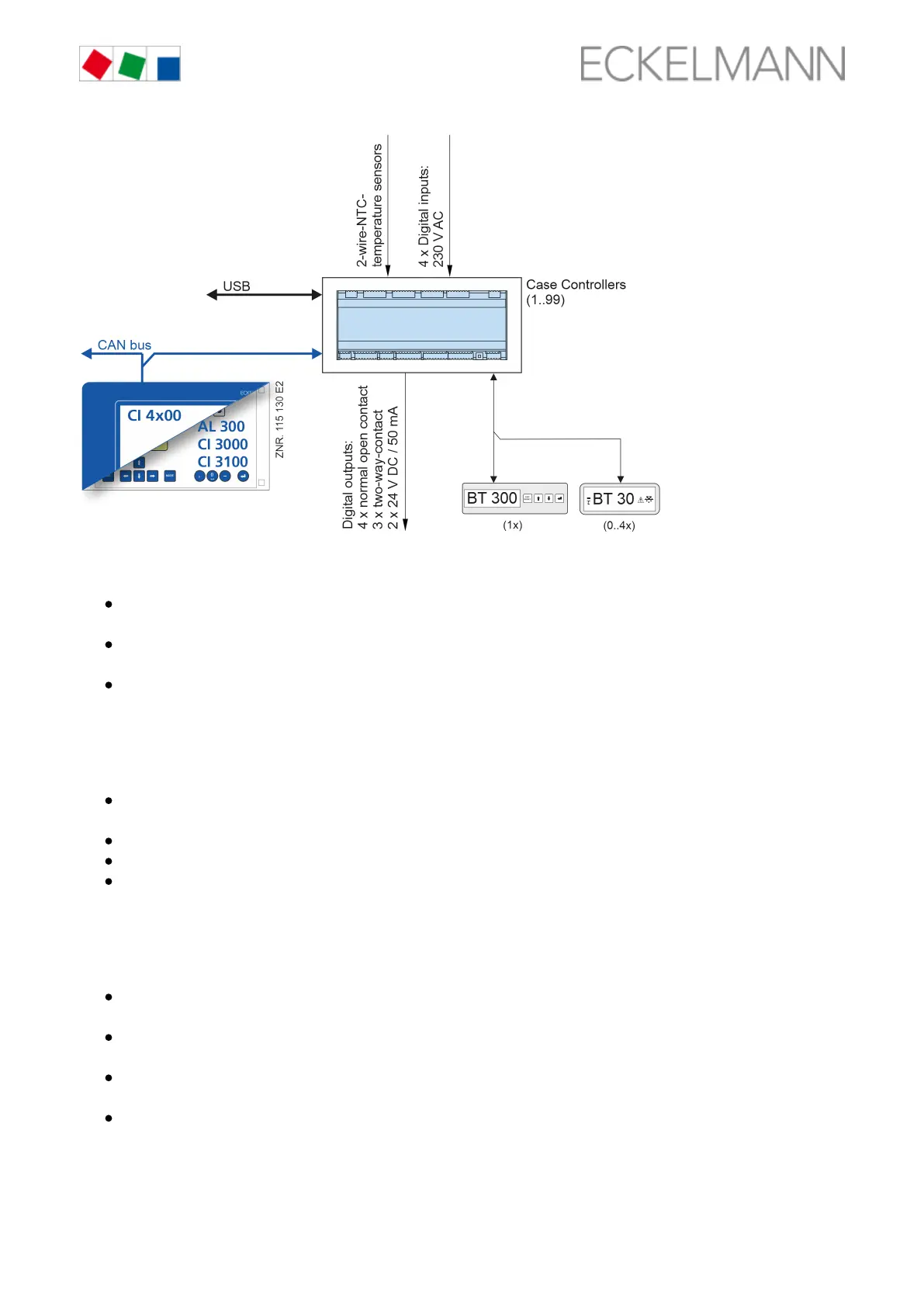

Interfaces:
CAN bus:
Communication in the E*LDS system
DISPLAY:
Connection for BT 300 operator interface and up to four BT 30 temperature displays
USB:
- For performing a firmware update
- Direct parametrisation via LDSWin
Inputs:
4 x digital inputs
230 V AC, floating
5 x inputs for connection of 2-wire NTC temperature sensors
5 x inputs for connection of 2-wire Pt1000 temperature sensors
Analogue inputs
- Only UA 412 S: 2 x 4..20 mA
- Only UA 413 S: none
Outputs:
3 x relay outputs
230 V AC / 6 A (changeover contact)
4 x relay outputs
230 V AC / 6 A (normally open contact)
2 x transistor outputs
24 V AC / 50 mA
Analogue outputs
- Only UA 412 S: 2 x 0..10 V
- Only UA 413 S: 1 x 0..10 V
Real-time clock
