7 UA 412 S connection and terminal assignment
7.1 Terminal diagram

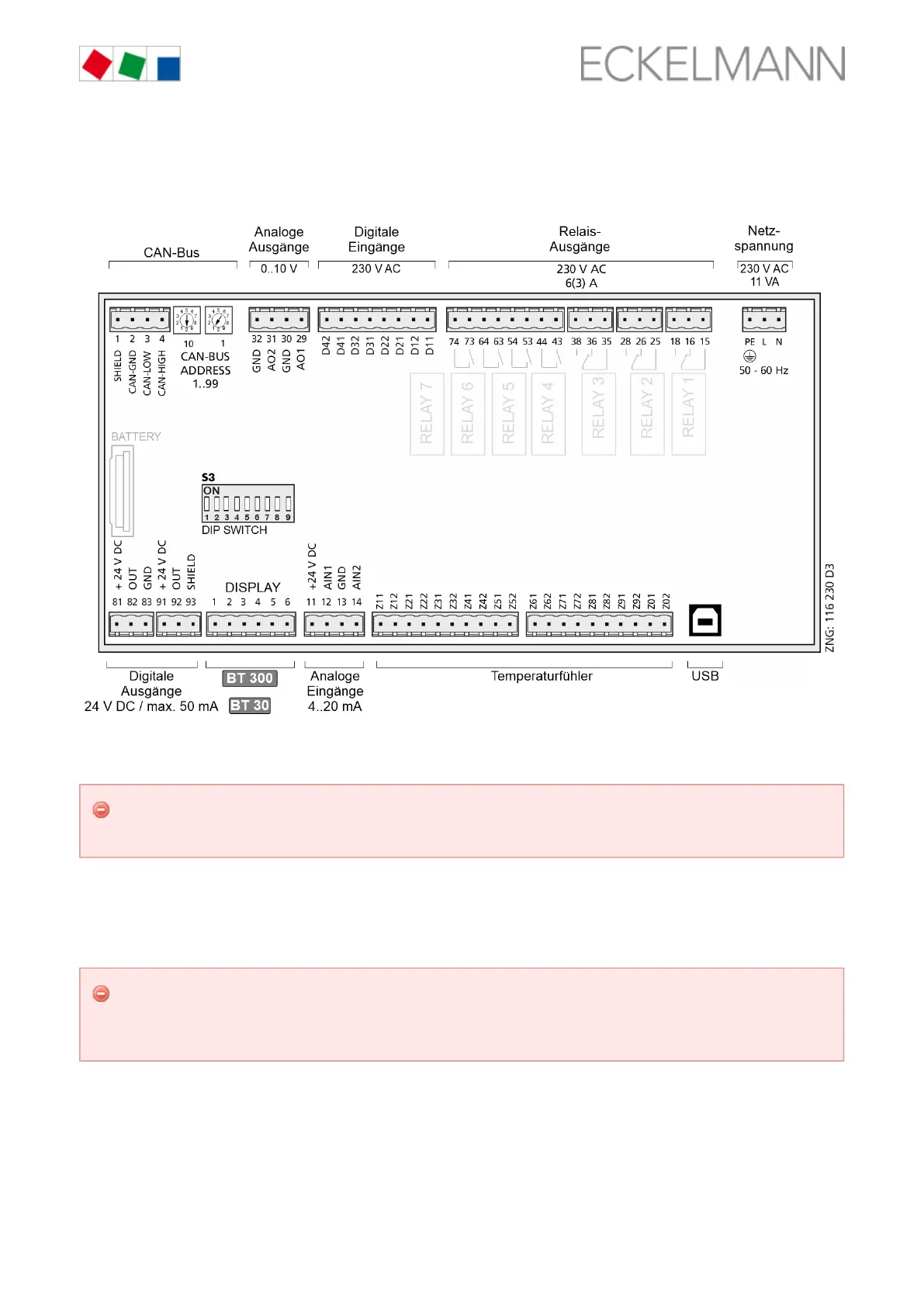

Connection diagram of the case controller with terminal designation, shown here in the complete design UA
412 S AC.
Warning about dangerous electrical voltage! In order to guarantee reverse polarity protection, only
coded mating connectors may be used on the control component connections.
The detailed description of the connection and terminal assignments is shown below.
7.2 Terminal assignment of the 230 V AC power supply
Warning about dangerous electrical voltage!
Danger of electric shock! BEFORE connecting and disconnecting, it must be checked that the 230 V
AC power supply cable is !disconnected from the power supply
