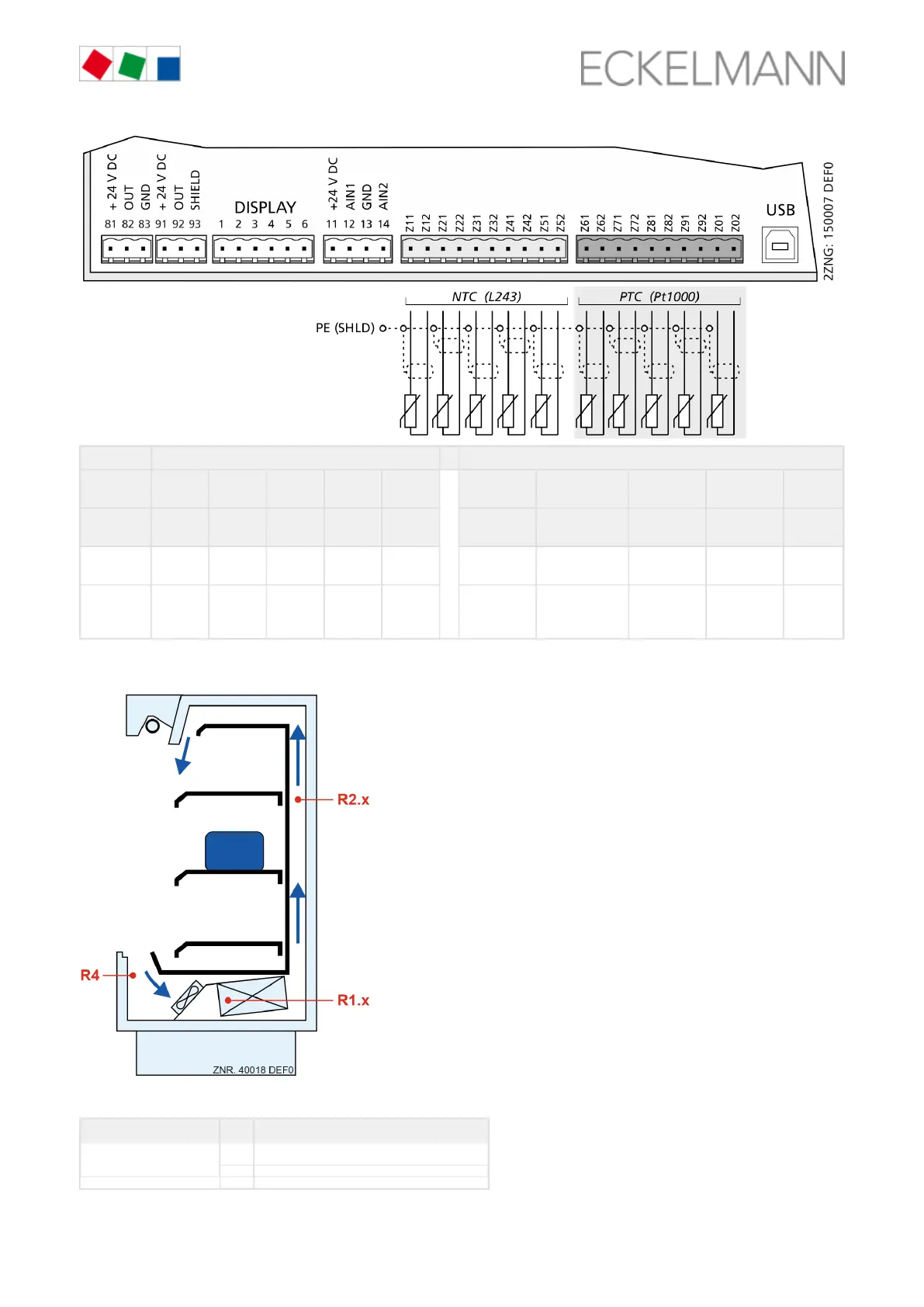

ECKELMANN UA 412 S - Explanation for the Sensor Designation

KGL Operating Manual – UA 412 S 2019-01-14 /73 122
NTC (L243) PTC (Pt1000)
Sensor
1
Sensor
2
Sensor
3
Sensor
4
Sensor
5
Sensor 6 Sensor 7 Sensor 8 Sensor 9 Sensor
10
Controller
type
Z11/Z12 Z21/Z22 Z31/Z32 Z41/Z42 Z51/Z52 Z61/Z62 Z71/Z72 Z81/Z82 Z91/Z92 Z01/Z02
SPIR410 R2 R4 R1 R3 R6 S7 Condensation Brine in Brine Out
S8
-
SPIR290 R2 R4 R1.1 R3 R1.2 Compressor
End
S7.1
Compressor
End
S7.2
Compressor
End
S7.3
Compressor
End
S7.4
Brine Out
S8
7.10.1 Explanation for the sensor designation
Explanation for the sensor designation
Legend: Ry.x
y = type of the sensor
1
Evaporator sensor (defrost sensor)
2 Supply air sensor
