Firmware V7.16.x
16.05.2023
85/183

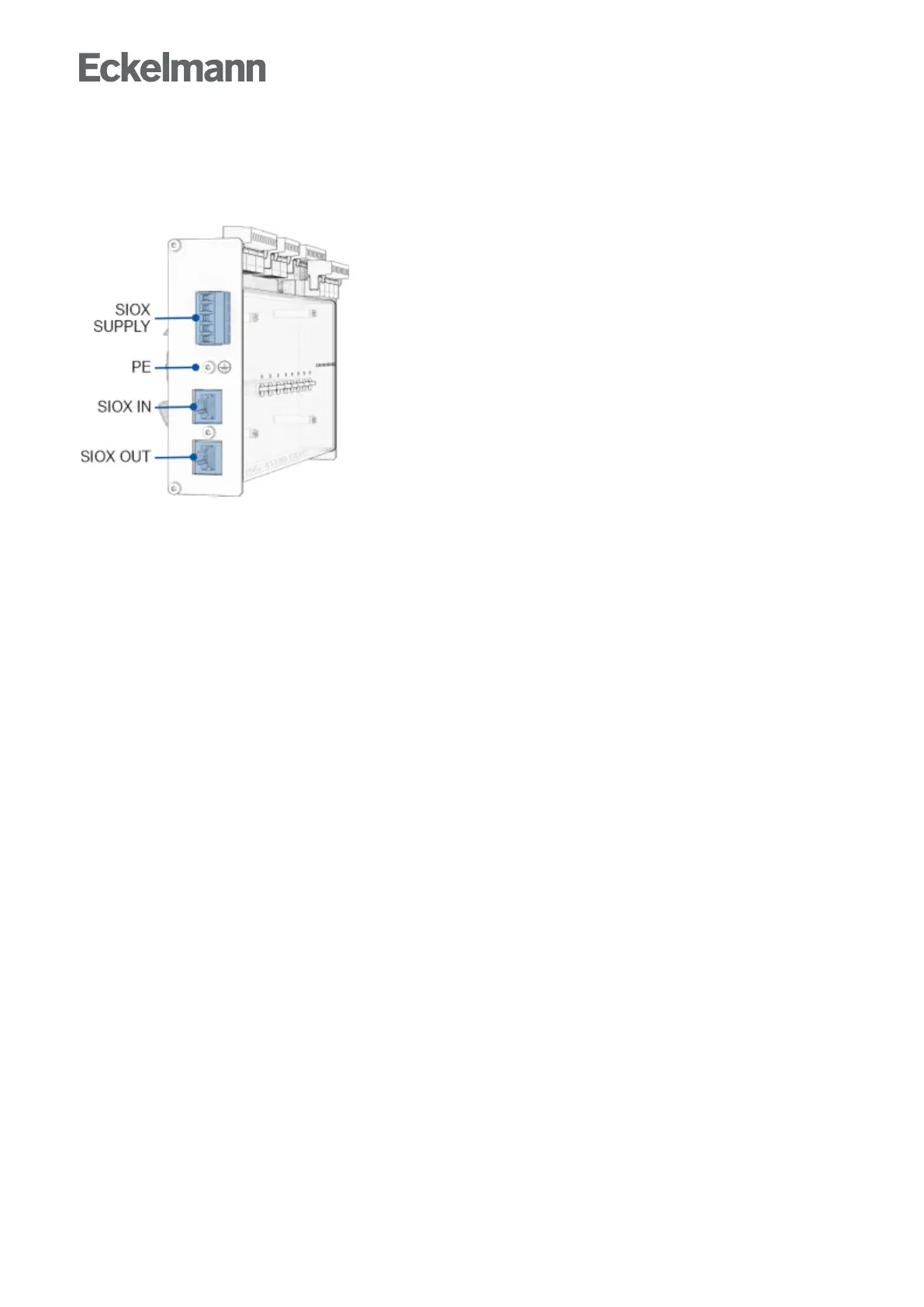

7.2.1 SIOX - Terminal assignment of the interfaces
The SIOX supply cables and the SIOX data cables are used for the the connection of a SIOX extension module
to the system centre and/or to another SIOX. The interfaces are located on the left on the device.
For details see chapter SIOX - connection to the system centre.
