9.1.1.3 Navigation and other

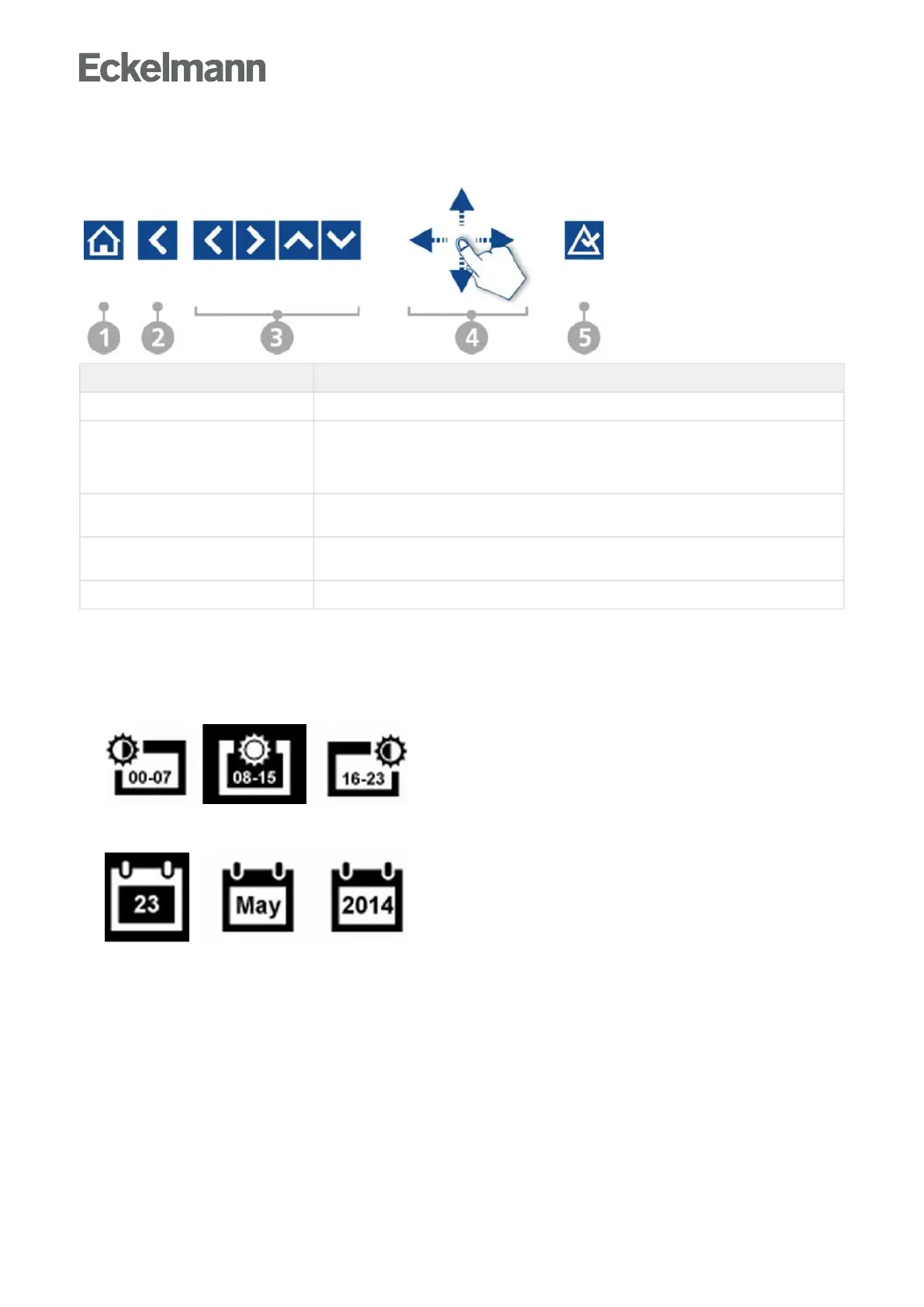

Button No. Function
1 Home - display main menu, only visible in submenus
2 Back - one menu level back, only visible in submenus
Exception: If the diagram of the 24h list is open, this button jumps back to the main menu! If
you would only like to return to the table form view of the 24h list, the button at the bottom left
in the navigation area must be tapped.
3 For scrolling left, right, up or down in lists, e.g. the alarm or 24h list
Note: these buttons are shown if necessary
4 The touch screen can also be swiped (not possible in the 24h list, energy lists, EU archive and
remote control).
5 Acknowledgement of alarms (only in the alarm list)
The display may have more icons than fit on the view and shows a list so that the views can be changed
between by swiping right/left and up/down or by tapping buttons. If necessary this is also indicated by arrow
buttons for right/left or up/down.
Other elements
Buttons to display other time periods in the 24h list; for details, see Menu 3, chapter Menu 3 - 24h List:
Buttons to display other time periods (weeks, months, years) in the consumption list; for details, see Menu
6-1, chapter Menu 6 -1 - Consumption:
So-called tab buttons for changing the view between alarm and message list are placed at the bottom left of
the navigation bar; see chapter Menu 1 - Alarms and messages.
