1 Menu 6-1 - Consumption
Thesubmenufordisplayofthemeasuringlocationsiscalledupusingthisbutton.Allthemeasuring
locations (meters) configured in Menu 4-1-6 are shown here and can be displayed graphically.

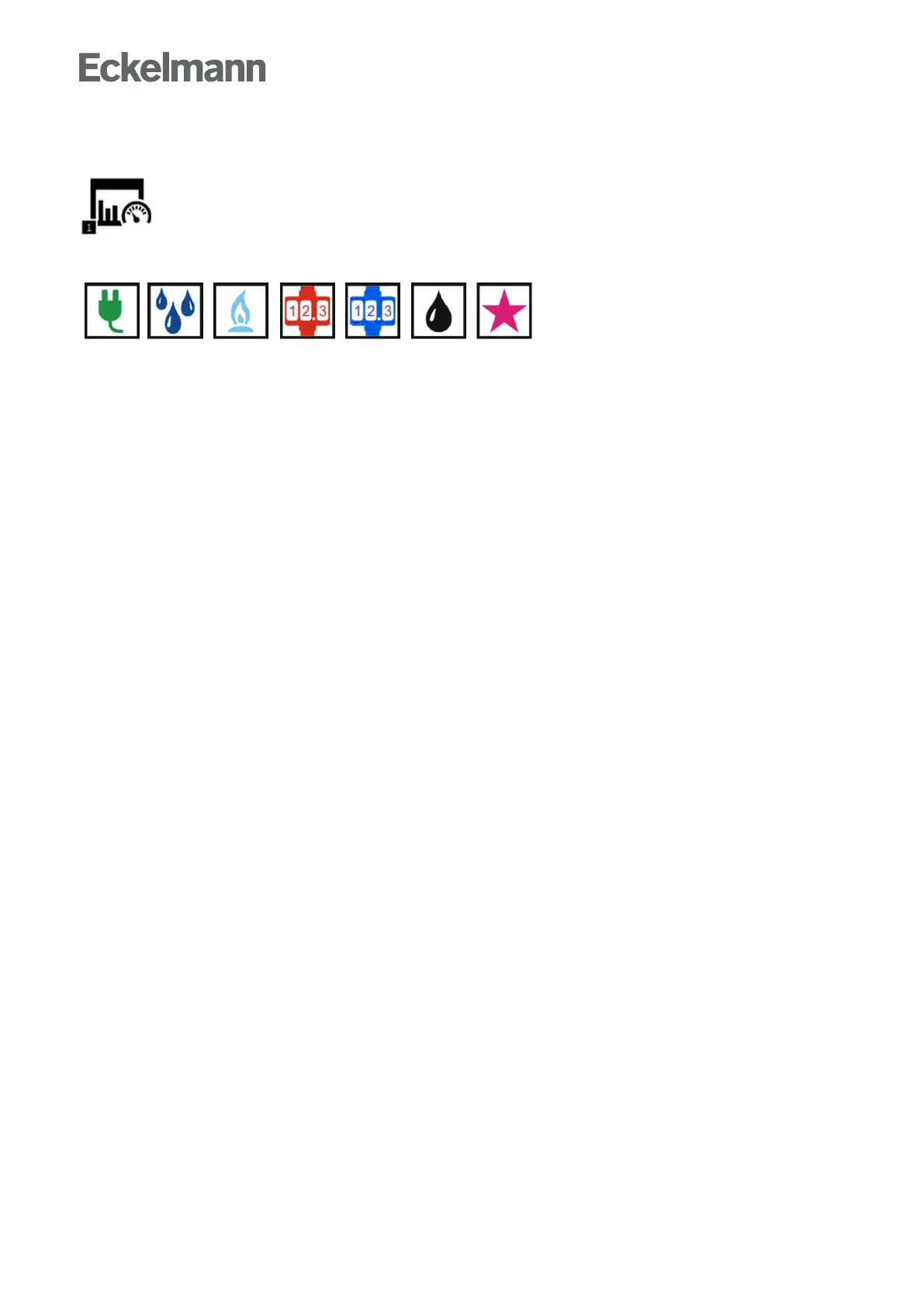

Legend for the meter symbols used:
power, water, gas, heating, cooling, oil and event
Every line entry in the screen contains the following parameters:
Type and name of the meter, its position designation, the meter and transformer constants and the unit of
measure. Note: Meters must be created and configured in Menu 4-1-6 otherwise they are not displayed in this
screen.
Select a meter in the list to display the consumption of a meter. The day consumption of the current week is
shown first in the "week" period. For better orientation, 2 previous days and one following day on the right are
displayed.Individualtimeperiodscanbechangedbetweenbypressingtheleft/rightbuttons.Thepresentation
of the consumption can be displayed over a week in days (left button "23") or monthly (middle button "May") or
annually (right button "2014").
Individual time periods (days, months, years) can be changed between by pressing the left/right buttons. Note:
The "year" time period cumulates the daily consumptions to the month consumption.
