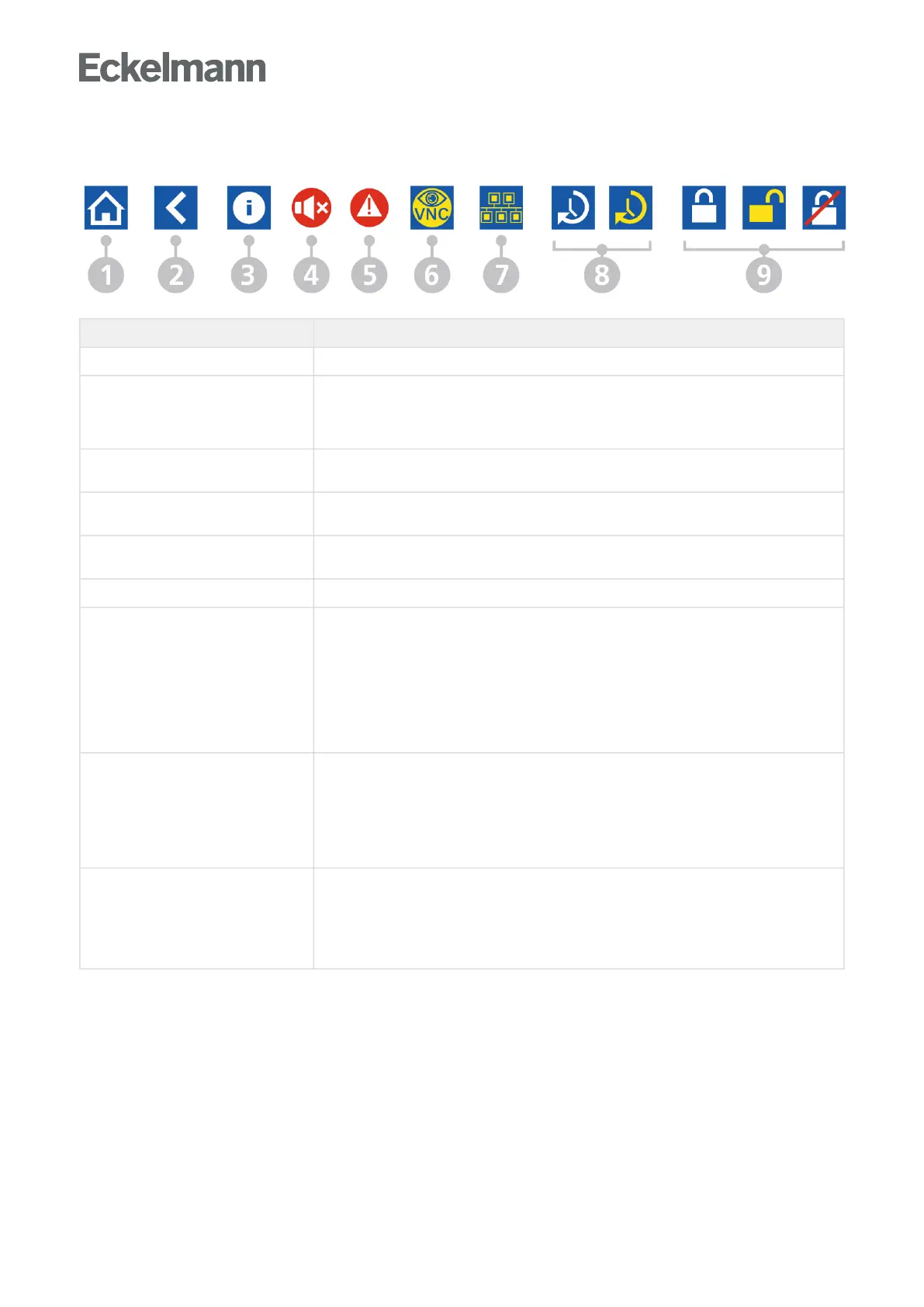

9.1.1.1 Status bar and quick info
Button No. Function
1 Home - display main menu, only visible in submenus
2 Back - one menu level back, only visible in submenus
Exception: If the diagram of the 24h list is open, this button jumps back to the main menu! If
you would only like to return to the table form view of the 24h list, the button at the bottom left
in the navigation area must be tapped.
3 Call of context-related information and explanations for the respective displayed menu or entry
screen,only visible if information is available.
4 Audible alarm (internal buzzer or optional external horn on the AUX relay); to switch off alarm,
see chapter Menu 5 - Horn.
5 There are pending alarms and messages! Tap to open alarm and message list, see chapter
Menu 1 1 Alarms and messages.
6 VNC connection activ
7 Displaylistoffailedrefrigerationpoints(onlyvisibleifrefrigerationpointshavefailed).
By tapping on the refrigeration points shown in the list, they can be
defined as unloaded: refrigeration points that have either been switched off, e.g. for
cleaning, and should be switched on again later,
or
are defined as failed: if the cause for why refrigeration points have failed is unknown,
e.g.whenafaultispresent.
For details, see chapter Alarm suppression for manual shutdown of case controllers.
8 Service mode for suppression of remote alarm signalling. The following displays are possible:
white: activation of the service mode by entry of a time in the range of 0 - 255 minutes
NOTE: This button is not displayed until after successful login to the device.
yellow: indicates that Service Mode is activated.
FordetailsaboutServiceMode,seechapterService Mode - Suppression of remote alarm
signalling.
9 Login to the system centre (unlocking)
white: login possible
yellow: user is logged in
white and red crossed out:
For details, see chapter Login to the system centre (unlocking).
a login or logout is not possible.
