9 Menusofthesystemcentre
9.1 On-site at the device

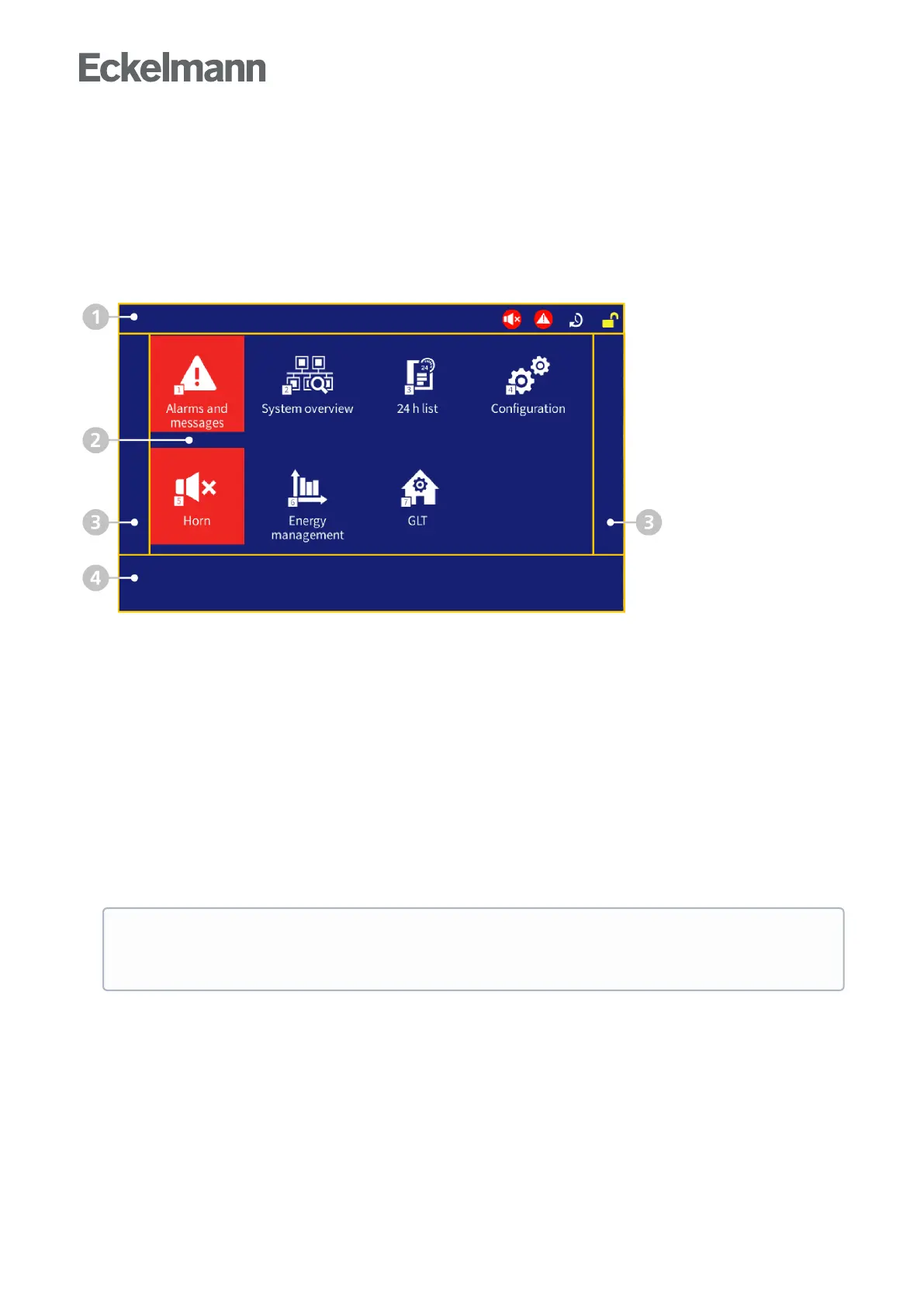

9.1.1 Layout of the touch screen
The touch display of the system centre is divided into various fields for different functions, for example here the
main menu:
Status bar and quick info: Menu numbers and titles of the displayed menus or entry screens. The Info/
Help button and the two quick access buttons for acknowledgement of the alarms and for calling up the
alarm list (in red here) and the list of unloaded / failed case controllers (in yellow here) can also be found
here. The buttons for service mode and for logging in to the system centre are placed next to them.
For details, see chapter Status bar and quick info, Status bar and quick info.
Main menu and central controls: Area for display of all menus, entry screens, dialogue fields, lists and
diagrams. Also the display of the on-screen keyboard for input of parameters.
For details, see chapter Main menu and central controls and On-screen keyboards for input of parameters,
On-screen keyboards for entry of parameters.
Navigation and other: Depending on the respective menu or screen, these areas are provided for
navigation (paging up, down, right and left), acknowledgement of alarms or for selection of the views in lists.
For details, see chapter Navigation and other, Navigation and other.
Info area (only in the main menu) and central controls as well as buttons for saving, applying or for
adding new entries.
For details, see chapter Main menu and central controls.
If the touch screen is black (screen saver is active), it can be activated again by simply tapping on
it. If the display is flashing (one second on and 5 seconds off), there are pending alarms. The
screen saver is not active if nodes have the "unknown" status.
