The SMARTPOWER
TM
Manual Dispenser R
TU, - Presoak Dispenser RTU
and - Pot&Pan Soak Dispenser RTU are almost identical in their design. This
operating manual uses the SMARTPOWER
TM
Pot&Pan Soak Dispenser RTU
as an example. Differences in design are indicated where relevant in the
operating instructions.
Design SMARTPOWER
TM
RTU Dispenser
1 1 1
2
3
6
6
7
4
4
8
9
10
12
13
15
15
15
14
14
5
11

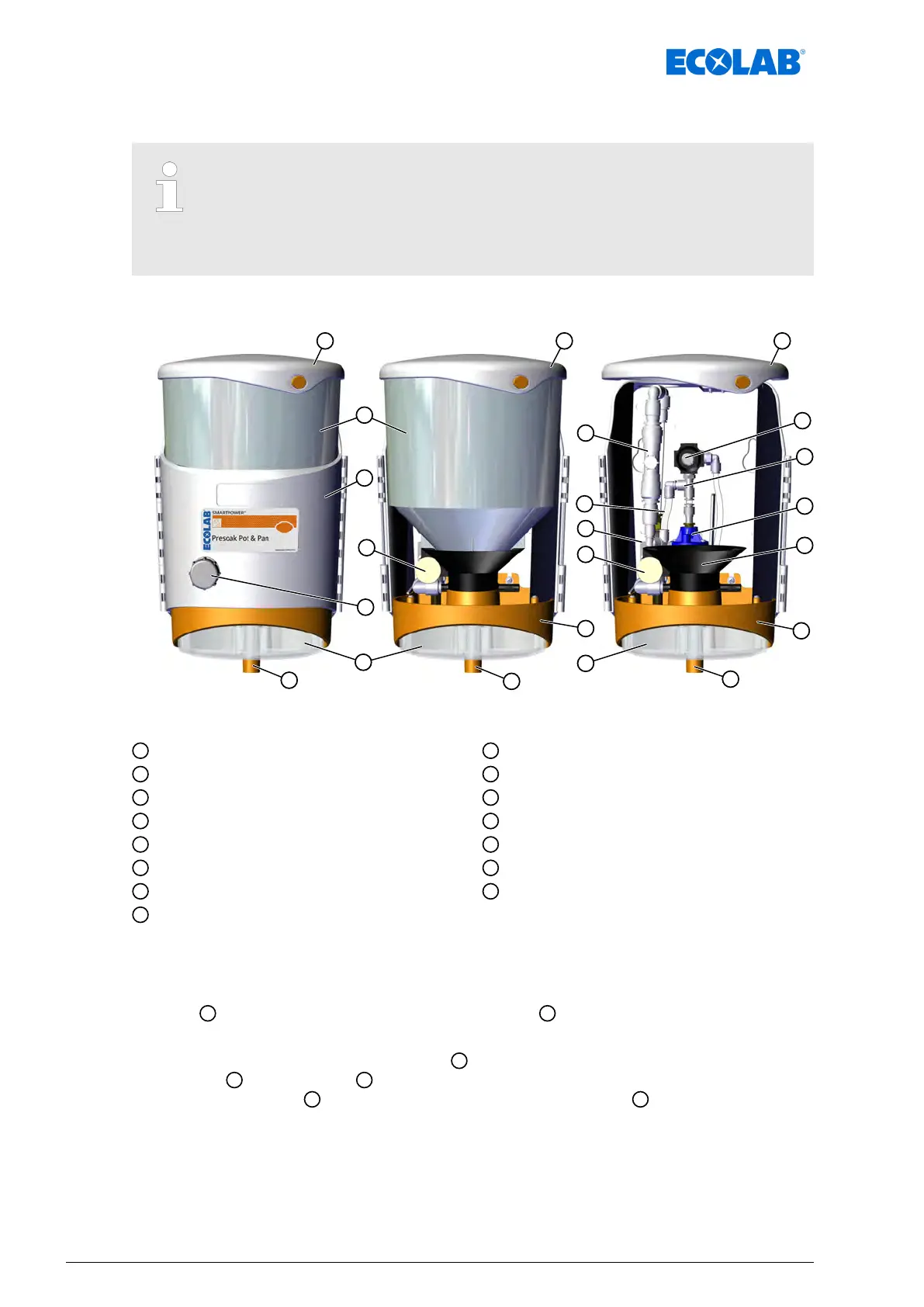

Fig. 1: Design
1
Hinged cover
2
Product cylinder with sieve insert
3
Front hatch
4
Button for fresh water valve
5
Release button
6
Bottom cover
7
Clean water valve
8
Double check valve
9
Clean water supply line
10
Pressure regulator
11
T-piece
12
Flow limiter
13
Water distributor
14
Base
15
Product outlet
Function description
The SMARTPOWER
TM
RTU Dispenser is an automatic dispenser for Ecolab's
compressed capsule products (SMARTPOWER
TM
). It essentially consists of a base
( Fig. 1 ,
14
) and a product cylinder with product feed
2
to accommodate the compressed
detergent capsule.
Through a manually operated water valve
7
, the clean water flows through the double
check valve
8
to the T-piece
11
. From here, some of the clean water is led through
the pressure regulator
10
to a spray nozzle in the water distributor
13
. This fresh water
is sprayed against the detergent capsule from below and dissolves concentrate from the
capsule.
