Ecolab SMARTPOWER - Remove the Flow Regulator and Flow Limiter

7.2.7 Remove the flow regulator and flow limiter
Personnel:
n
Service Personnel
Protective equipment:
n
Protective eyewear
n
Chemical resistant protective gloves
Requirements:
n Angle valve for water supply closed.
n Front hatch open.
Ä Chapter 7.2.2 ‘Opening the front hatch’ on page 38
n Product cylinder is removed.
Ä Chapter 7.2.3 ‘Remove the product cylinder’
on page 39
n Water distributor removed.
Ä Chapter 7.2.4 ‘Descale the water distributor and spray
nozzle’ on page 41
1
2
3
3
3
4
4
4
5
6
7

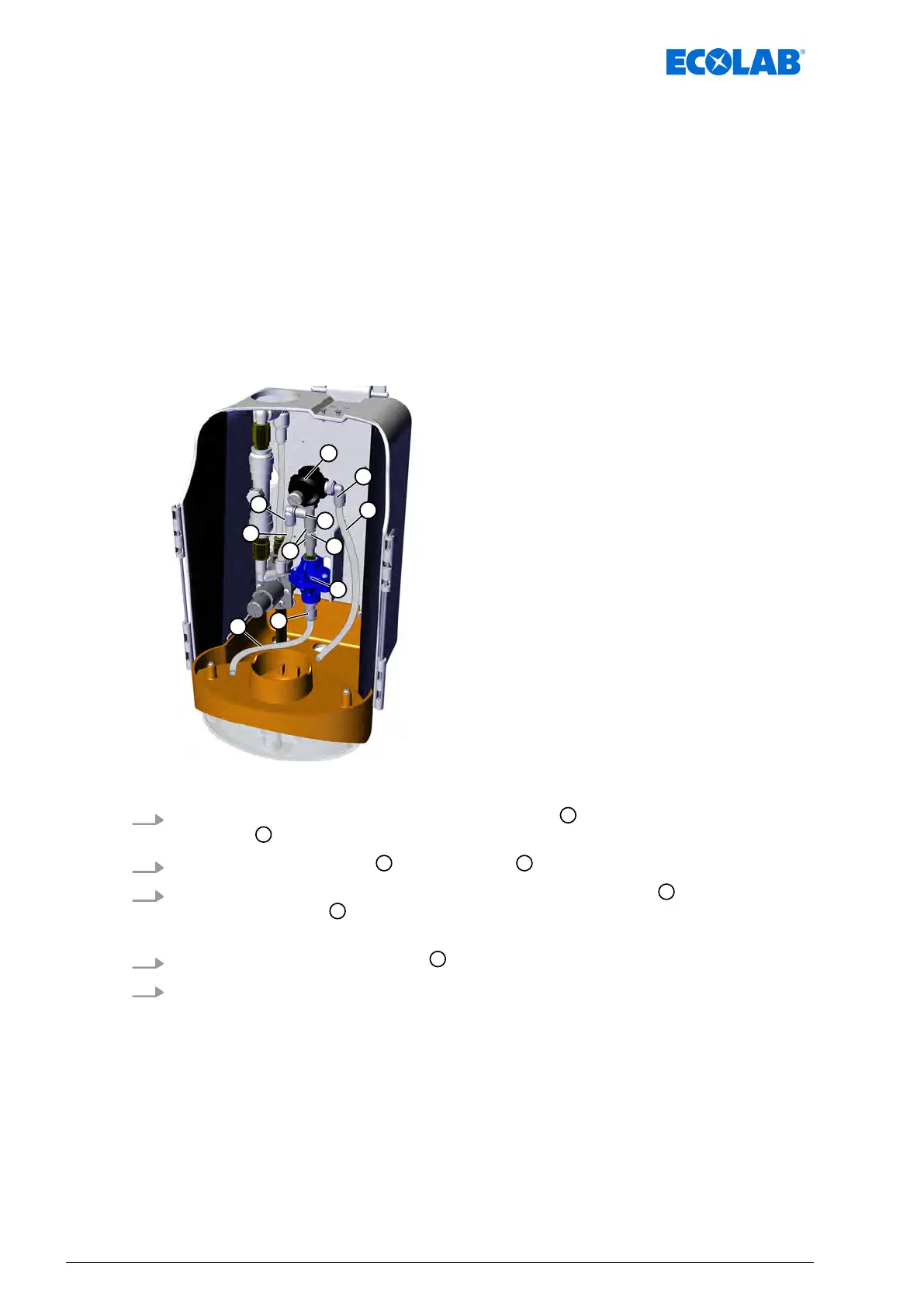

Fig. 19: Remove the flow regulator and flow limiter
1
Flow regulator
2
Flow limiter
3
Plug-in coupling
4
Clean water pipe
5
Plug-in coupling
6
Clean water pipe
7
T-piece
1.
Press the retaining rings onto the plug-in couplings
3
and disconnect the clean
water pipe
4
.
2.
Remove the flow regulator
1
and flow limiter
2
together.
3.
If necessary
, press the retaining rings onto the plug-in couplings
5
and disconnect
the clean water pipe
6
.
ð
The flow regulator and flow limiter are separated from each other
.
4.
If necessary
, unscrew the T-piece
7
from the flow regulator.
5. Pay particular attention to the following during installation:
n Push the clean water pipes into the plug-in couplings until you hear a click.
n If the flow regulator is replaced, have Ecolab Customer Service adjust the flow
rate of the unit.
Ä ‘Manufacturer’ on page 11
Servicing and maintenance
46MAN054128 Ver. 01-06.2024
