Ecolab SMARTPOWER - Remove the Clean Water Valve

7.2.6 Remove the clean water valve
Personnel:
n
Service Personnel
Protective equipment:
n
Protective eyewear
n
Chemical resistant protective gloves
Requirements:
n Angle valve for water supply closed.
n Front hatch open.
Ä Chapter 7.2.2 ‘Opening the front hatch’ on page 38
n Product cylinder is removed.
Ä Chapter 7.2.3 ‘Remove the product cylinder’
on page 39
n Double check valve is removed.
Ä Chapter 7.2.5 ‘Remove the double check valve’
on page 43
n Water distributor removed.
Ä Chapter 7.2.4 ‘Descale the water distributor and spray
nozzle’ on page 41
1
1
2

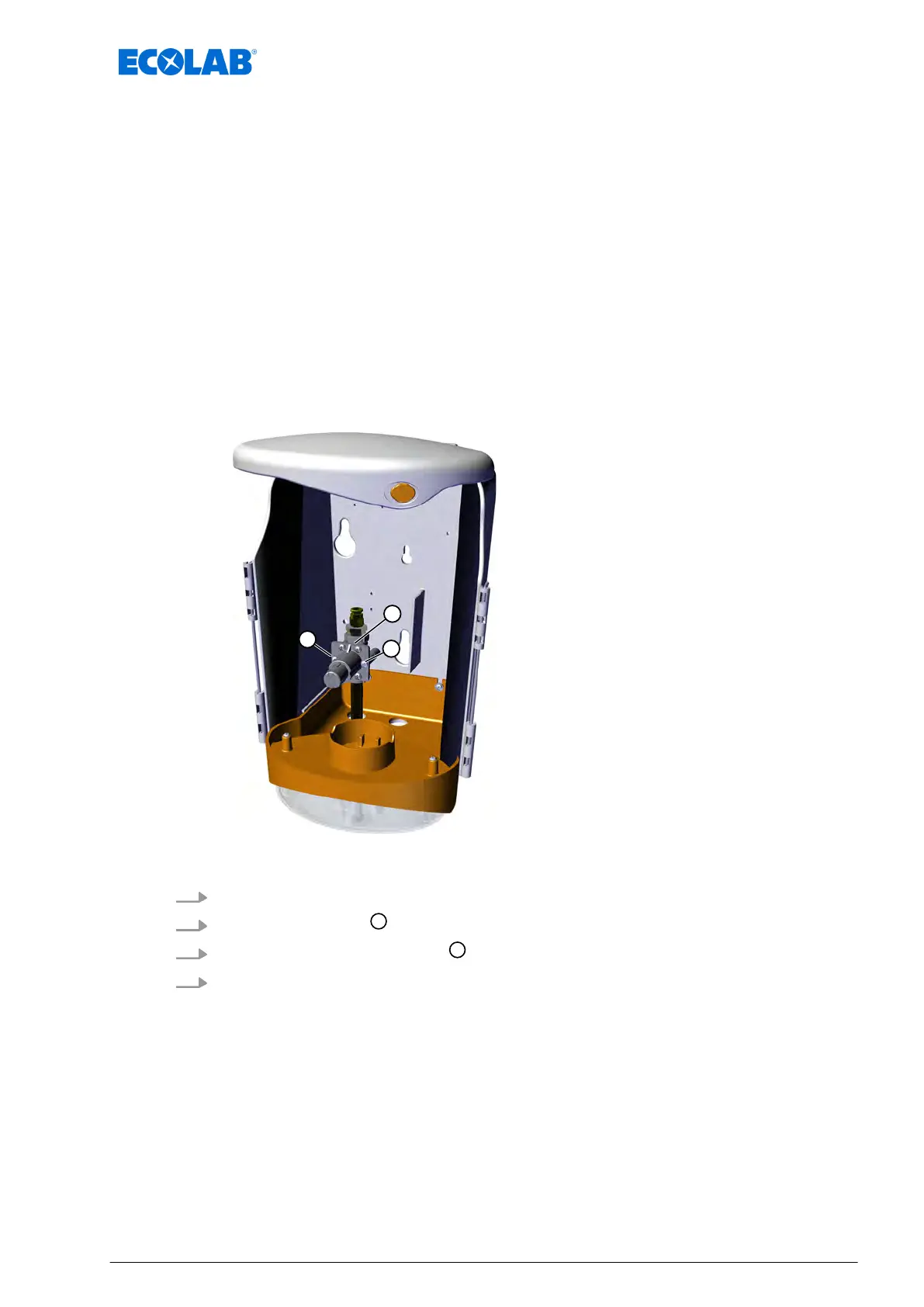

Fig. 18: Remove the clean water valve
1
Screw
2
Clean water valve
1. Unscrew the water pipe at the water valve inlet.
2.
Remove the screws
1
.
3.
Remove the clean water valve
2
from the machine.
4. Pay particular attention to the following during installation:
n Click the water pipes all the way into the plug-in couplings.
Servicing and maintenance
