Ecolab SMARTPOWER - Remove the Product Cylinder

7.2.3 Remove the product cylinder
Personnel:
n
Operator
Protective equipment:
n
Protective eyewear
n
Chemical resistant protective gloves
Requirements:
n Angle valve for water supply closed.
n Hinged cover is open.
n Front hatch open.
Ä Chapter 7.2.2 ‘Opening the front hatch’ on page 38
1
2
3

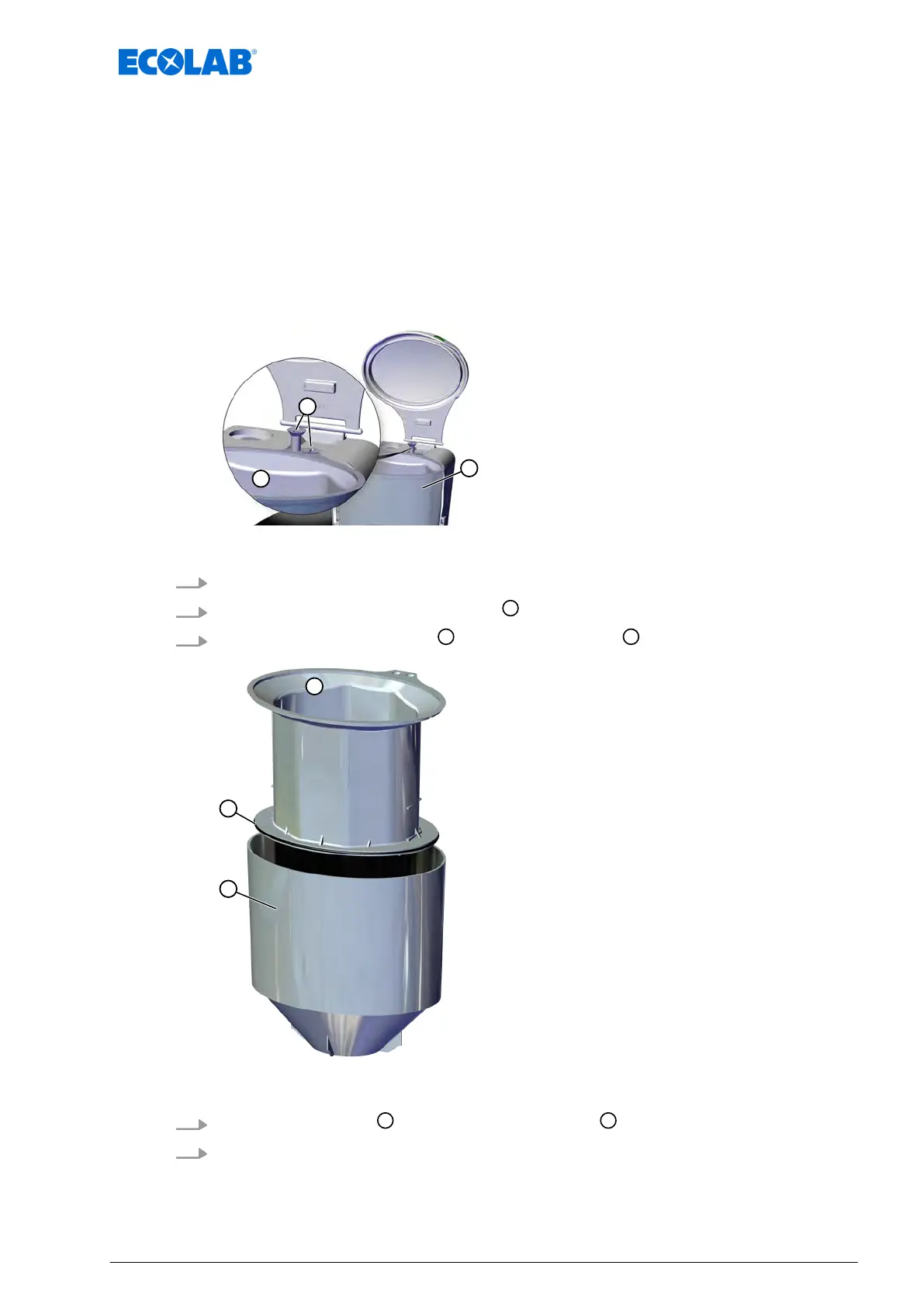

Fig. 10: Loosen the product cylinder
1
Countersunk screw
2
Product cylinder
3
Product feed
1.
If necessary, remove the SMARTPOWER
TM
detergent capsule.
2.
Unscrew the two countersunk screws
1
.
3.
Remove the product cylinder
2
with the product feed
3
facing upwards.
2
3
4
Fig. 11: Remove the product feed
2
Product cylinder
3
Product feed
4
O-ring
4.
Pull the product feed
3
out of the product cylinder
2
.
5.
n Clean the product feed using a damp cloth.
n Rinse product cylinder with clean water
.
Servicing and maintenance
39 MAN054128 Ver. 01-06.2024
