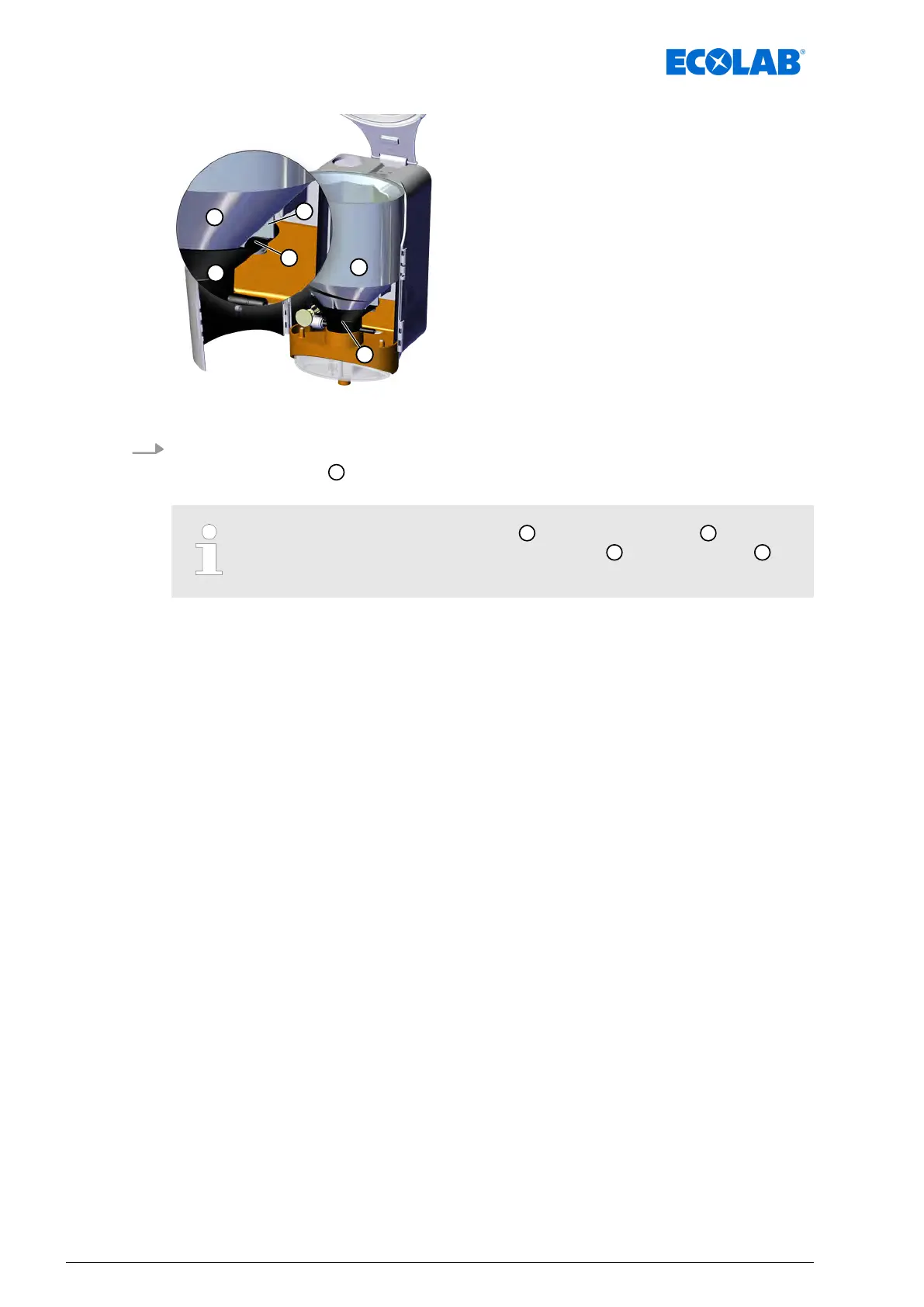

Fig. 12: Insert the product cylinder
2
Product cylinder
5
Tab
6
Guiding device
7
Water distributor
6. Pay particular attention to the following during installation:
n Clean the O-ring
4
and the O-ring groove thoroughly.
n Grease the O-rings with petroleum jelly
, replace if necessary.
When inserting the product cylinder
2
, make sure the tabs
5
on the
product cylinder are between the guides on the
6
water distributor
7
.
Servicing and maintenance
