INSTRUCTIONS MANUAL
-74-

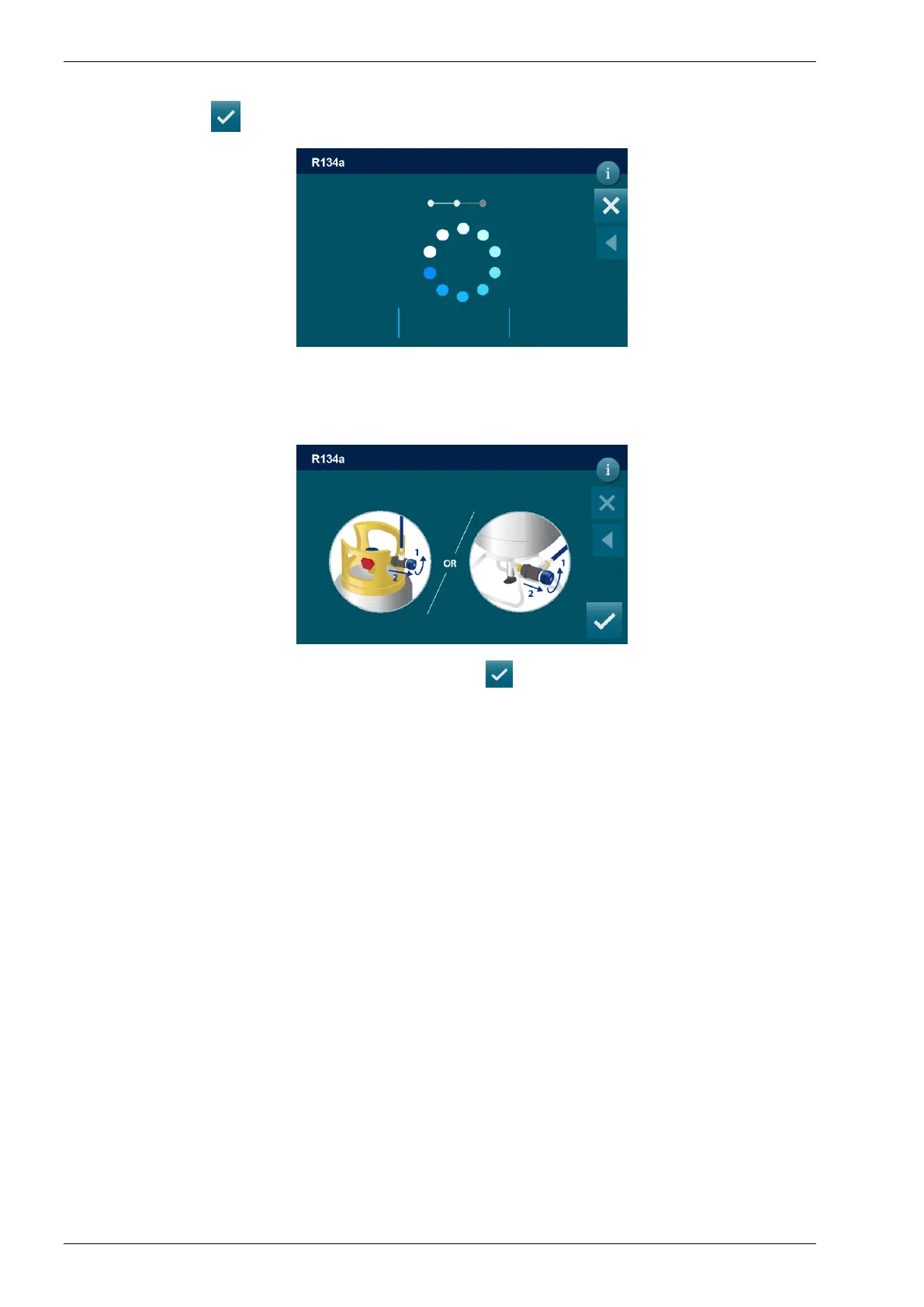

Connect and open LP or HP coupler to the liquid side of the external bottle and open the liquid
valve. Then press to continue
The machine will proceed automatically, displaying the quantity of refrigerant charged in the
tank. When filling is completed, the following screen is displayed:
QUICKSETUP is now successfully completed. Press return to the MAIN MENU.
DD/MM/YY XX:XX PM
Refrigerant charged
14g / (2%)
External tank pressure
0.86 bar
Tank filling
QUICKSETUP/ TANK FILLING
Tank pressure
5.71 bar
DD/MM/YY XX:XX PM
QUICKSETUP/ TANK FILLING
Disconnect LP or HP coupler
to the side of external bottle
To Next Page
