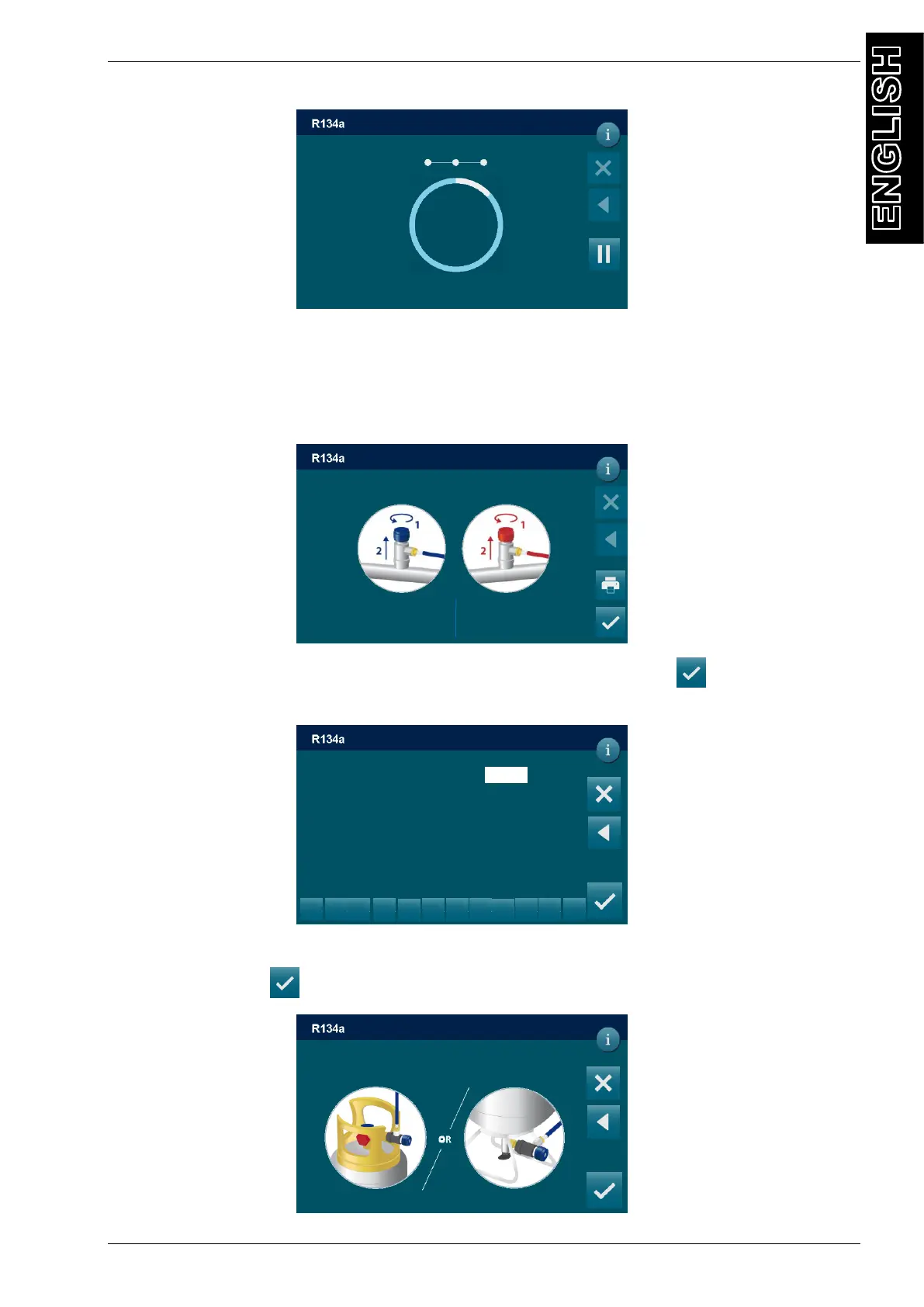

When time of check is reached, the machine will test for leaks in the A/C system:
(WARNING! If vacuum time is lower than 15 minutes this test is not reliable). If leaks are
found, the machine will stop automatically and display the A/C SYSTEM LEAKS alarm.
Detection of micro-leaks is not guaranteed.
At the end of the preset vacuum time, the machine will sound and alarm and the following
screen will be displayed:
Close and disconnect HP and LP coupling from A/C system, then press
Use the touchscreen keys 0 to 9 to type the quantity (in grams) of refrigerant to be charged into
the tank, then press
Close and disconnect HP and LP couplings
from A/C system
DD/MM/YY XX:XX PM
QUICKSETUP / VACUUM
Vacuum time
15 min
Time of check
10 min
DD/MM/YY XX:XX PM
QUICKSETUP/ TANK FILLING
CHARGE AMOUNT
(min 600 – 6979 max)
600
g
1
2
3
5
6
8
9
0
.
<
DD/MM/YY XX:XX PM
QUICKSETUP/ TANK FILLING
Connect and open LP or HP coupler to the liquid side
Of the external bottle and open the liquid valve.
Then press to continue
DD/MM/YY XX:XX PM
QUICKSETUP / VACUUM
A/C pressure
-0.99 bar
00:51
