Chapter 2: Installation
ModuLaser Modular Aspirating Smoke Detector Installation Manual 19

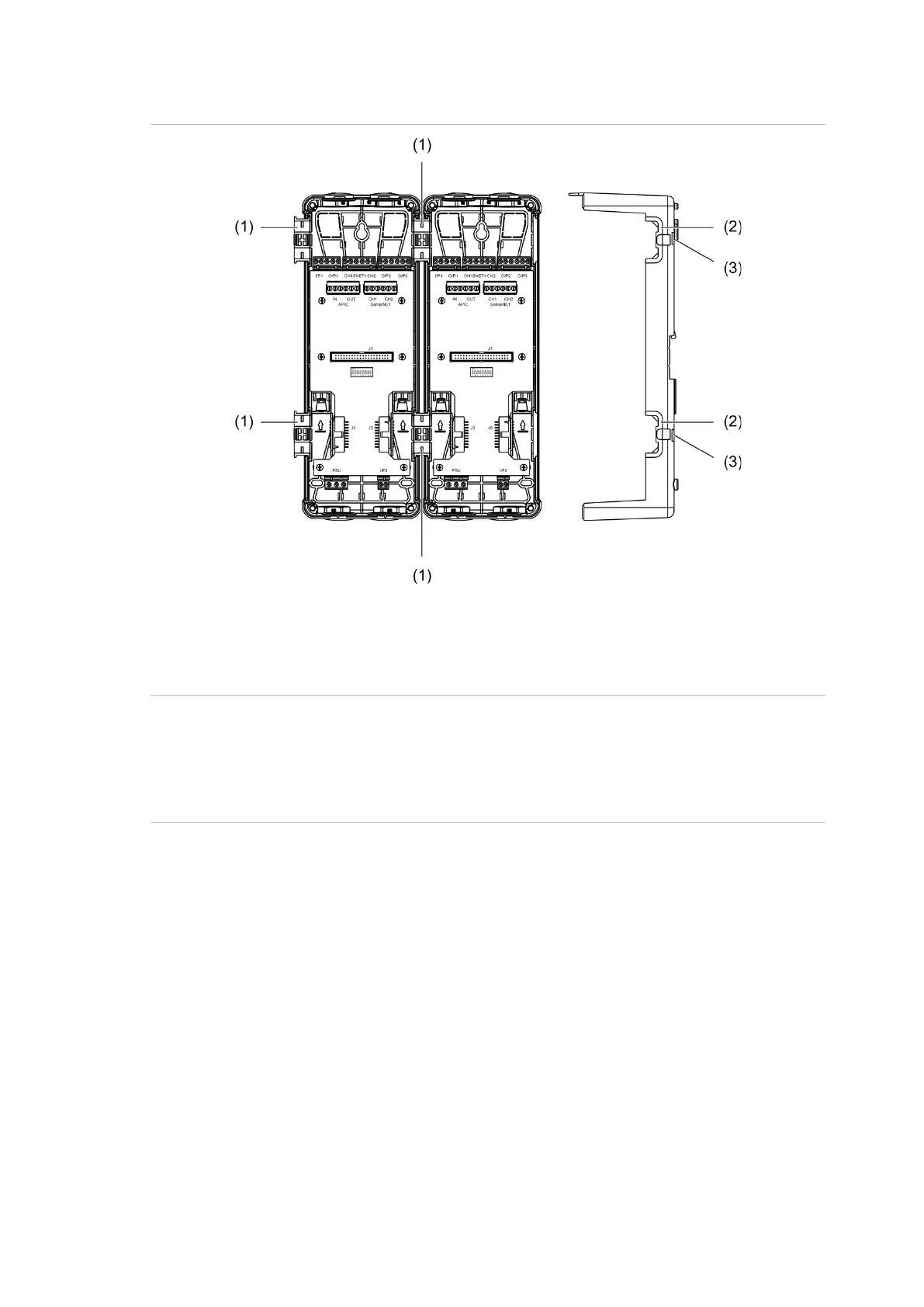

Figure 11: Using joining clips
1. Joining clips (front view)
2. Joining clips (side view)
3. Release mechanism for joining clip or protective cover
WARNING: To avoid personal injury, take care when inserting or removing the
joining clips or protective covers from the side of the backplane. To remove these
items, place the backplane face down on a solid surface and use a screwdriver to
push the release mechanism, shown in Figure 11 above (this needs to be done
before the backplane is installed onto the wall).
