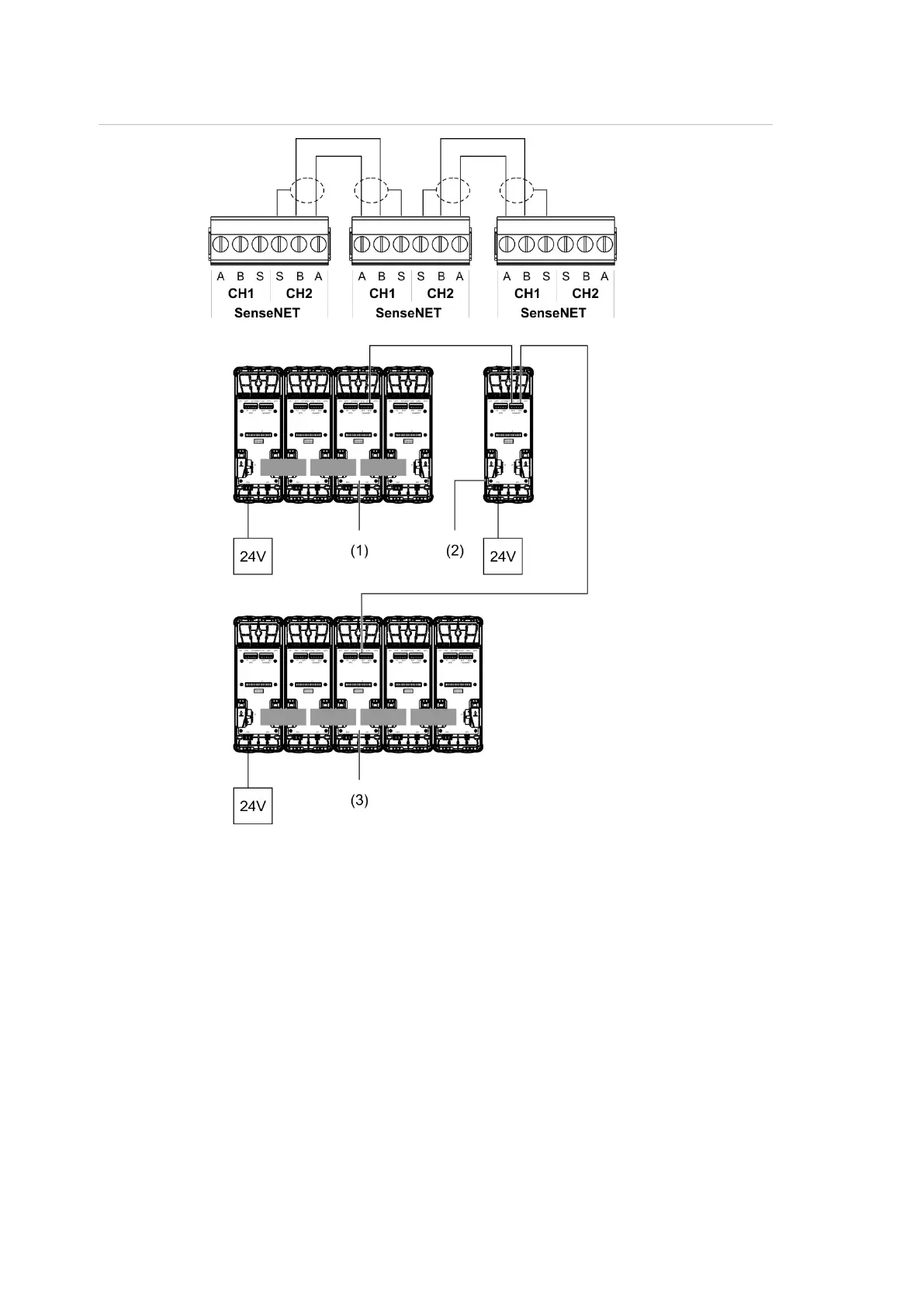

Figure 17: Connecting a multiple cluster network
1. Minimum display module (first cluster)
2. Command display module (stand-alone)
3. Standard display module (second cluster)
Note: The network configuration may also be closed to provide for redundancy
within the network.
