Parameterisation
MSM-USM2G-BA-UK-001 Page 25 of 45

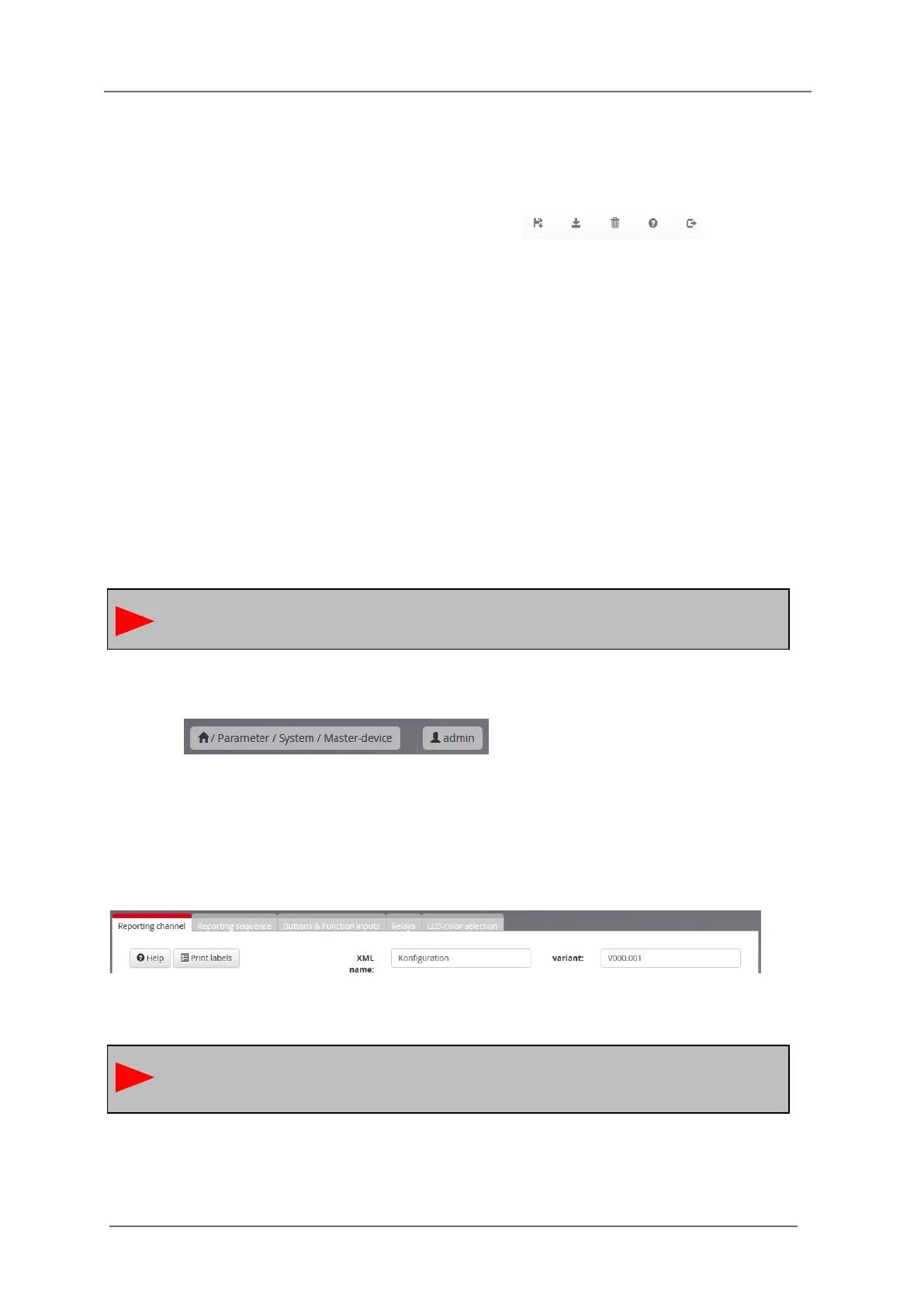

In the menu bar next to the EES logo, the three main menus are located:
 Language
 Parameter
 Configuration
as well as the symbol bar consisting of five push buttons:
The push buttons have the following functions:
 Accept configuration
Storage of the changed parameters of the currently selected device. After termination of the
parameterisation, the changed parameters necessarily have to be stored and thus
adopted in the browser interface!
To download the parameterisation tot he connected device, the file has to be sent to the
annunciator with „Write parameter to device“ ( section 6.3 „Main menu Configuration“).
 Accept all 4 configurations
With this button, the parameters of all four devices (Master device and additionally defined
Slave devices) will be stored and adopted in the browser interface.
 Dismiss configuration
Dismiss all changes done to the parameterisation in the current session (since last „Accept
configuration“).
 Version
Version of the parameterisation software
 Logoff
Logoff from the parameterisation interface
Below the main menu bar the menu path and the user are displayed.
In the main window the menu “Parameter / Master-device” is already opened. The parameterisation
could be started straight away. In this manual though, the single menus will be explained first in the
order of their appearance in the menu bar.
Some parameterisation pages are structured by different tabs and contain additional buttons. The
function of these elements is described in the explanation of the respective pages.
Fig. 6.4: Tabs and buttons on the page „Master-device“
Upon logoff without accepting the configuration all new entered parameters will be
discarded.
When switching between different menus or tabs, the changes will be buffered but not
stored to the current configuration of the annunciator.
