Installation and Ser
vice Guide Color Contr
oller E-46A
Replacing parts
3

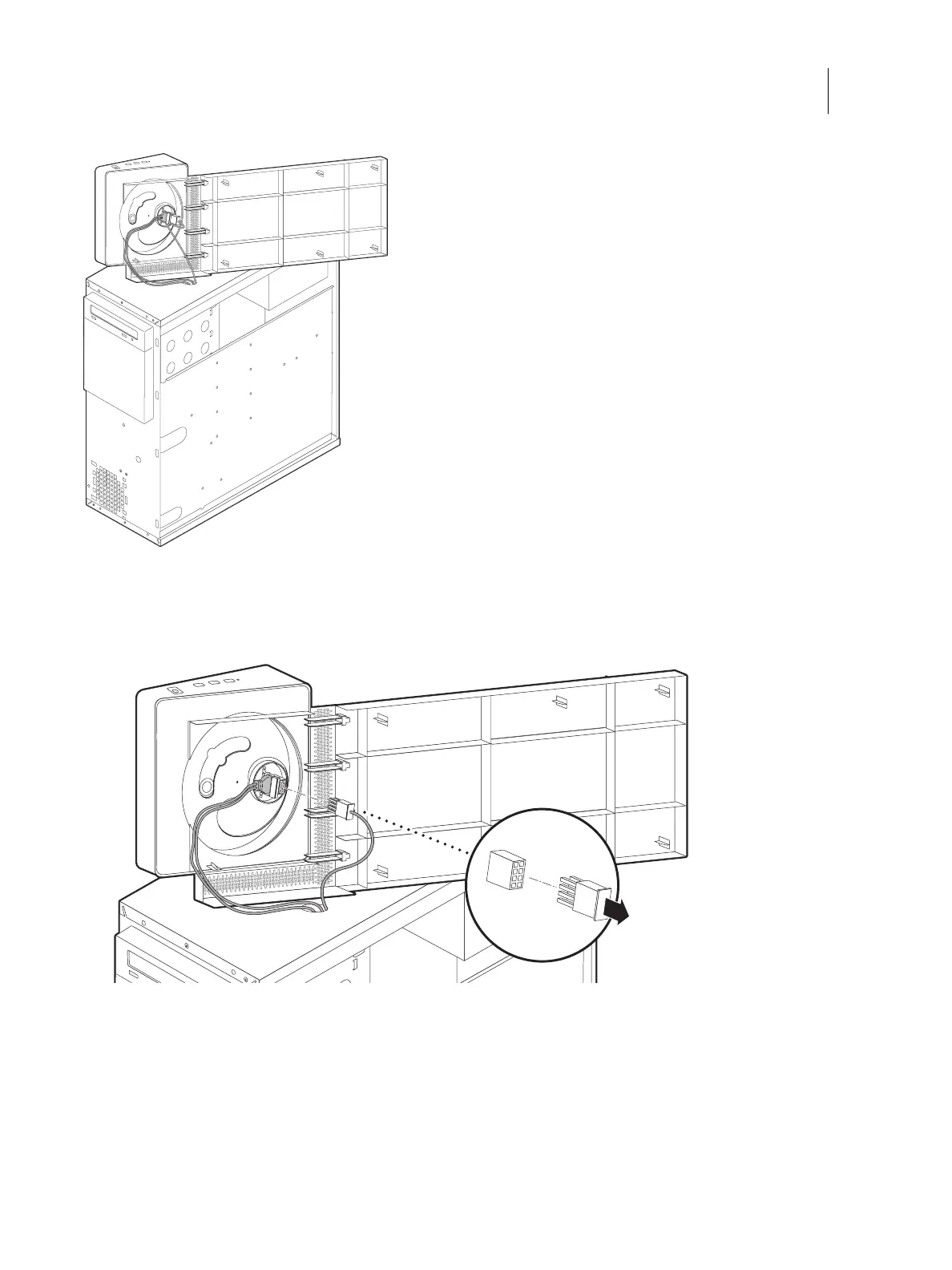

Stabilize the unit and set the Fiery Quick
T
ouch on its side atop the unit.
4
Remove the two connectors attached to the F
ier
y Q
uick
T
ouch.
a
Remove the tie-wrap that bundles the power cable and a tab on the support bracket for USB connector
.
b
Remove the power harness by unplugging it
.
54
56
