54Installation and Service Guide Color Controller E-46A
Replacing parts

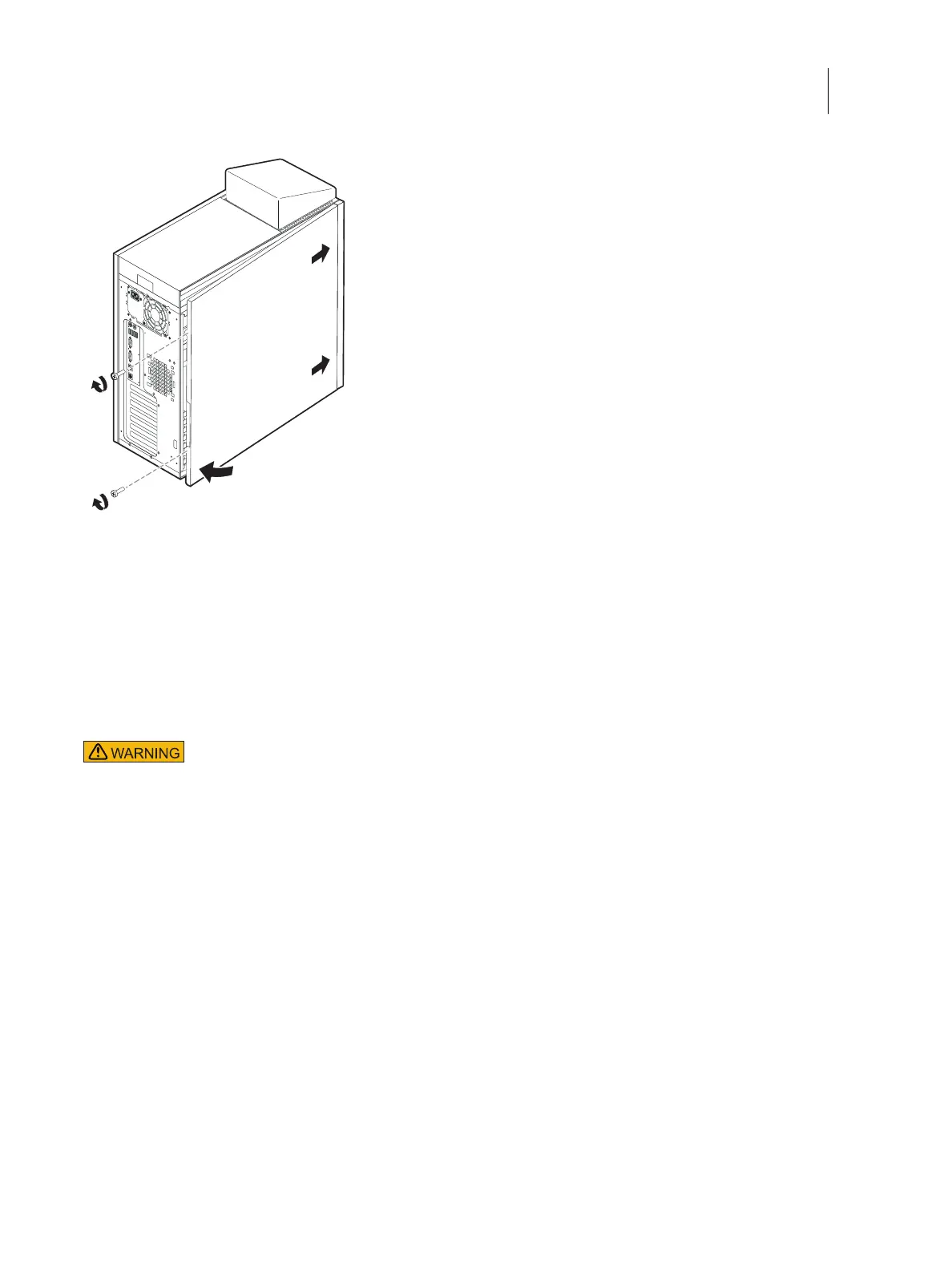

3 Slide the right chassis cover into place and secure with two screws on backside of the unit.
4 Slide the left chassis cover into place and secure with two screws on backside of the unit.
Fiery QuickTouch display module
Fiery QuickTouch is attached to the top panel of the E-46A.
Follow the directions to remove the chassis covers. See “Opening the E-46A” on page 51. You will need to remove the
side covers, then the front cover before you will be able to release the top bezel with the Fiery QuickTouch attached.
To remove the Fiery QuickTouch
1 Remove the side and front panels (see page 52).
2 To remove the top bezel, slide the bezel forward and release it from the top of the chassis.
It is highly recommended that you use a screwdriver with a magnetic tip when removing or
replacing screws on the Fiery QuickTouch. If you do not, the screws you remove or replace might
fall inside the Fiery QuickTouch device.
