83Installation and Service Guide Color Controller E-46A
Replacing parts
7 Remove the four screws that attach the hard disk drive to the hard disk drive bracket (see below).

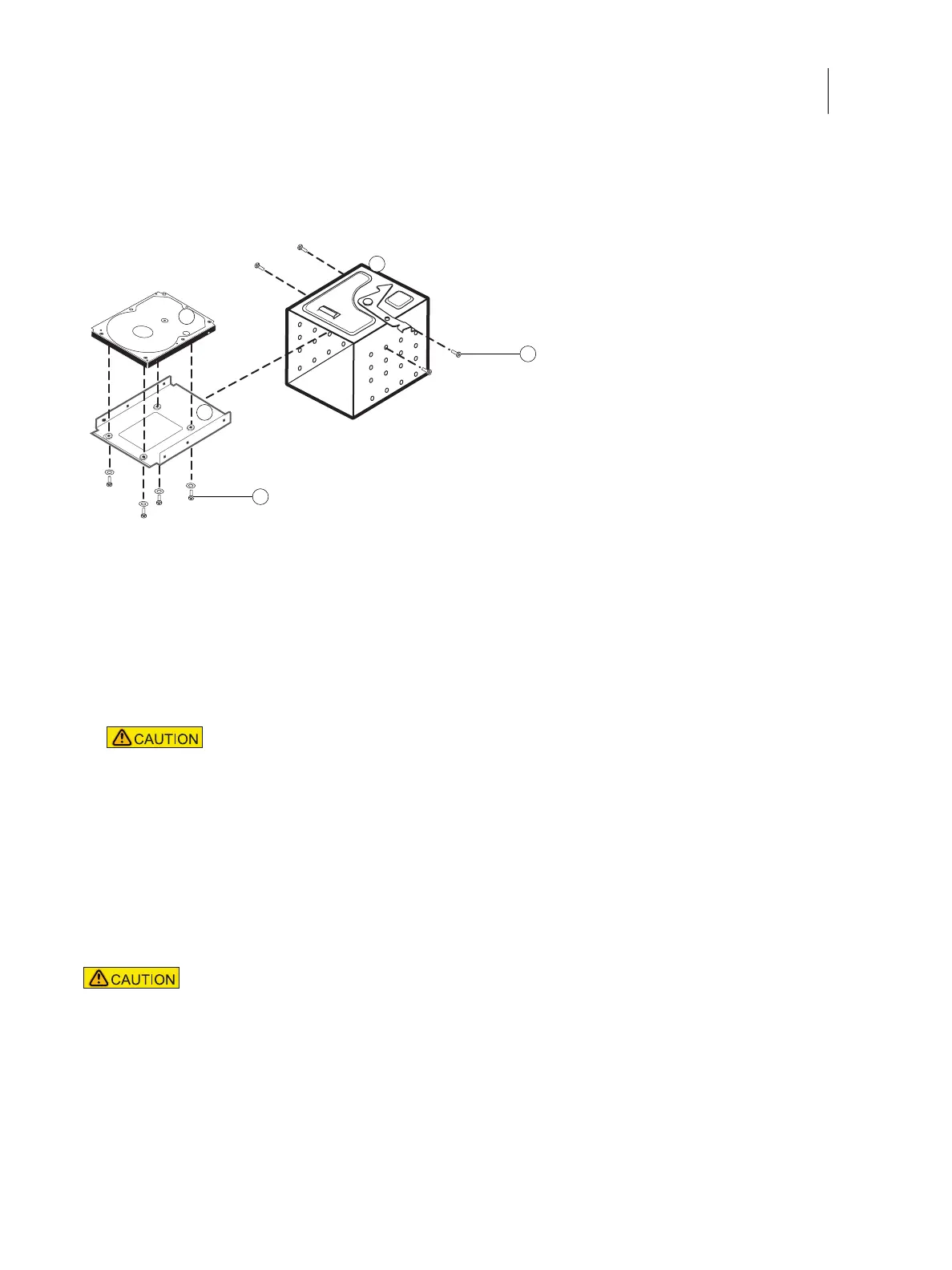

Figure 41: Removing/replacing the hard disk drive from/in the hard disk drive bracket
8 Remove the hard disk drive from the hard disk drive bracket and place it in an antistatic bag.
Do not touch the drive with magnetic objects (such as magnetic screwdrivers), and avoid placing magnetic-
sensitive objects (such as credit cards and employee ID cards) near the hard disk drive.
Replacement hard disk drive is not shipped with preinstalled system software. After you install the drive, you must
install the appropriate system software (see page 101).
To replace the hard disk drive
1 If you are installing a new hard disk drive, unpack the drive.
Do not drop, shake, or bump the hard disk drive. Do not touch the hard disk drive with magnetic objects or place
magnetic-sensitive objects near the hard disk drive.
1 2.5 inch HDD
2 Mounting bracket for 2.5 inch HDD
3 Screw with washer (1/4)
4 HDD sled
5 Screw (1/4)
Do not loosen the screws on the hard disk drive cover. Loosening these hard disk drive screws
breaks the seal and voids the hard disk drive warranty.
Do not install a new hard disk drive and a new motherboard at the same time. If you suspect that
the E-46A needs a new hard disk drive and a new motherboard, first install the new hard disk
drive and install system software, then install a new motherboard and transfer options (see pages
63 and 67).
1
2
4
5
3
